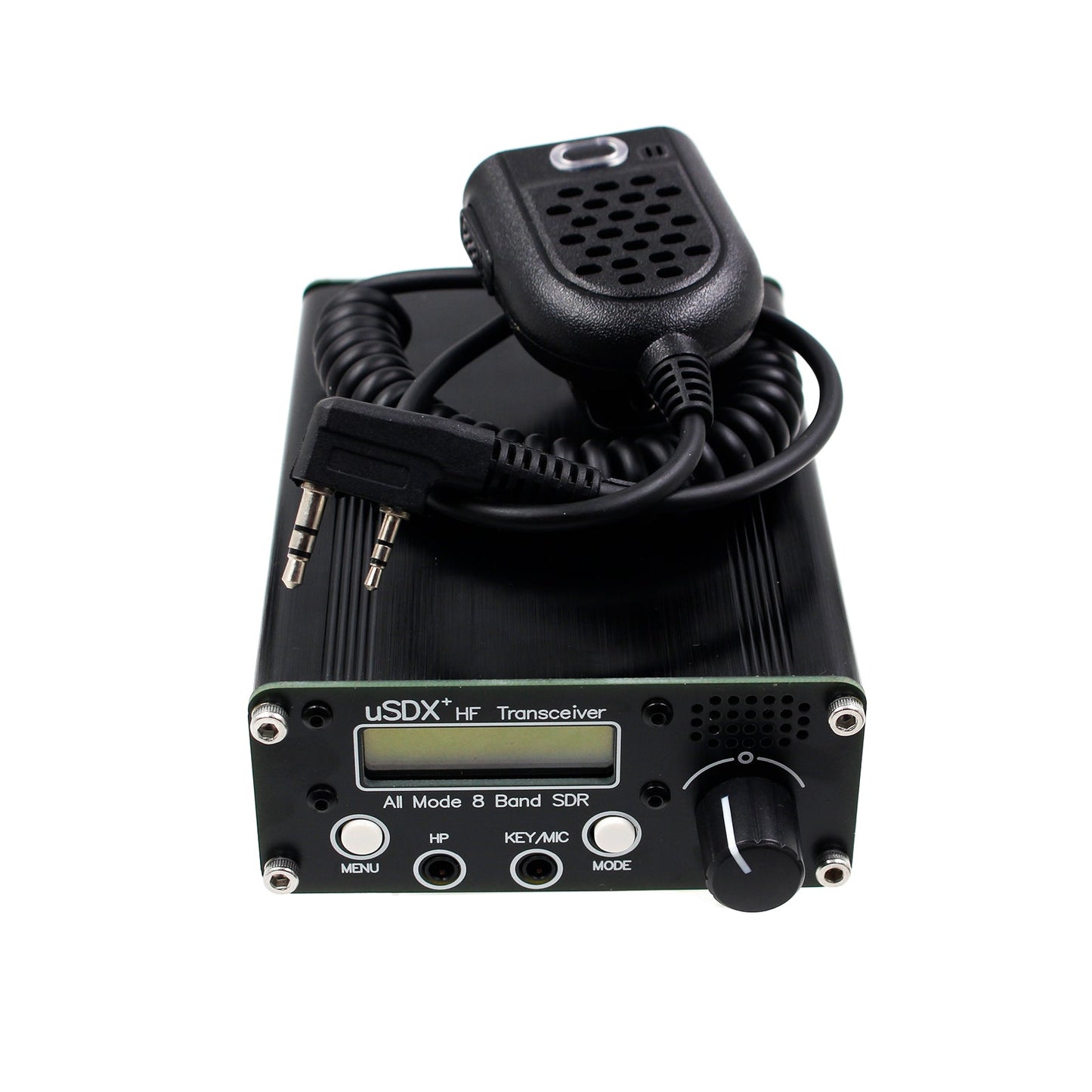

usdx+ HF Shortwave Transceiver QRP SSB/CW Transceiver 3W-5W All Mode 8 Band Upgraded Version of usdx

Note:
This product has no built-in battery and no power source. It needs to be equipped by the user. Make sure you don't mind before buying! ! !
The power interface is 5.5mm, the power supply voltage is 12.6V, 1A 2A can be used.
The battery specification is 11.1V/12.6V 4000mAh lithium battery.
If you need batteries, you can buy power or batteries according to the above values, thank you.

Description:
This is a shortwave QRP SSB/CW transceiver. The ultra-small size is easy to carry for outdoor use, using 1602N LCD screen, built-in speaker, support to connect to PC, use digital mode software control such as FT8, JS8, FT4, etc., support CW automatic decoding.

Features:
-8 tracks cover 80m/60m/40m/30m/20m/17m/15m/10m
- Excellent PCB layout design in line with high frequency circuit design principles to ensure excellent performance
-Whether using internal battery or external 13.8v power supply, it can achieve 3-5w power in 8 ranges, and reserve SOT-223 and TO-220 pack pads needed to upgrade
-High emission efficiency, 80m/60m/40m/30m/20m efficiency is greater than 80%, 17m efficiency is greater than 70%, 15m/10m efficiency is greater than 60%
-High accuracy KDS brand TCXO, frequency accuracy is better than 1ppm, frequency stability is better than 0.5ppm
-Ultra small size: 83*38*124mm (excluding protruding parts)
- Abundant interfaces (cat, ptt out, mic/key, k-head mic)
-All LPF parts use 100v c0g/np0 capacitors
-Use genuine Omron original magnetic latching relays
-Use op amp chip with lower noise than LM4562
-Built-in speaker with cavity
- BNC antenna interface

The usdx+ update is as follows:
- Moved the headphone and power key/microphone jacks to the front panel for easy access to the headphone and power button.
- Move the keys to the bottom of the LCD screen for a larger touch area and a more comfortable keystroke experience.
- Upgraded built-in speaker effects, double the sound!
- PCB reserved pads for various upgrades, out of the box, can be used as a template for DIY upgrade learning
- Quickly change qrp cw frequency.
- Support cw sidetone volume adjustment.
- Support cw sidetone adjustment.

List of Functions:
1. Support all modes: usb, lsb, cw, am, fm (ssb mode has good reception effect, but poor transmission effect. AM and FM modes are free, and the effect is not good)
Filter dsp filter: 4000, 2500, 1700, 500, 200, 100, 50hz passband
2. Function DSP functions: automatic gain control (AGC), noise reduction (NR), Xmit voice trigger (VOX), RX attenuator (ATT), TX noise gate, tx unit control, volume control, dbm/s meter.
3. Sidebar/Carrier Suppression SSSSB transmit: better than -45dbc, imd3 (dual tone) -33dbc, receive: better than -50dbc
4. Support multi-band support, continuously adjustable 10m within 80m frequency range (from 20khz..99mhz, loss performance)
5. Open source firmware, built with arduino ide; allows experimentation, new features can be added, contributions can be shared via github, software complexity: 2000 lines of software-based Vovox code available for fast full control (qsk and half-qsk operations) or rx/ Auxiliary switch tx for external control of ptt/pa output using fully digital tx-delay stage and software based ssb stage transmitter in digital mode (no cat or ptt interface required): controls the phase of the sill si5351 (by switching at 800kbits/s Small frequency changes under i2c) and magnitude of pa (via pwm pa key shaping circuit)
6. Software-based all-digital SDR receiver stage (optional): The I/Q (complex) signal is sampled from a quadrature sampling detector digital mixer and a 90 degree phase shift is performed mathematically in software ( Hilbert transform) and three independently switchable analog faders (0db,-13db,-20db,-33db,-53db,-60db,-73db) from the pre-receiver by adding Atten sidebands
7. Receiver noise floor mds: -135dbm at 28mhz (200hz bw)
8. Receiver receiver front-end selectivity: +/-2khz steep 45db/decade tuning frequency rolling
9. Blocking blocking dynamic range: 20khz offset 123db, 2khz offset 78db
10.cw decoder, direct/iambic-a/b keyer
11.vvfo a/b + rit and split, and the corresponding relay through i2c
12.cat supports cat with filter switch (using kenwood TS-480 protocol)

Specifications:
-Type: hf qrp sdr transceiver
-Mode: ssb/cw
- Frequency range: 3.5-30mhz
-Built-in mic
-Antenna/connector: 50ohms/so-239

Package Includes:
-1 x usdx+ Transceiver
-1 x Microphone
-4 x Machine Foot Pads
