PT-5000 Camera Remote Control Electric Cloud Platform Tilt 360 Panoramic Mirror Rotation Dual Axis Micro Slr Camera Mobile Phone

Note:
Big remote &small remote can not be used at same time, it may cause the pan tilt not smooth in operation.
The max output power for DC14.8v&DC8.4vport is 30W, please use under this power.
The output for DC14.8v&DC8.4v is only available in adapter mode, no output when using battery.

Description:

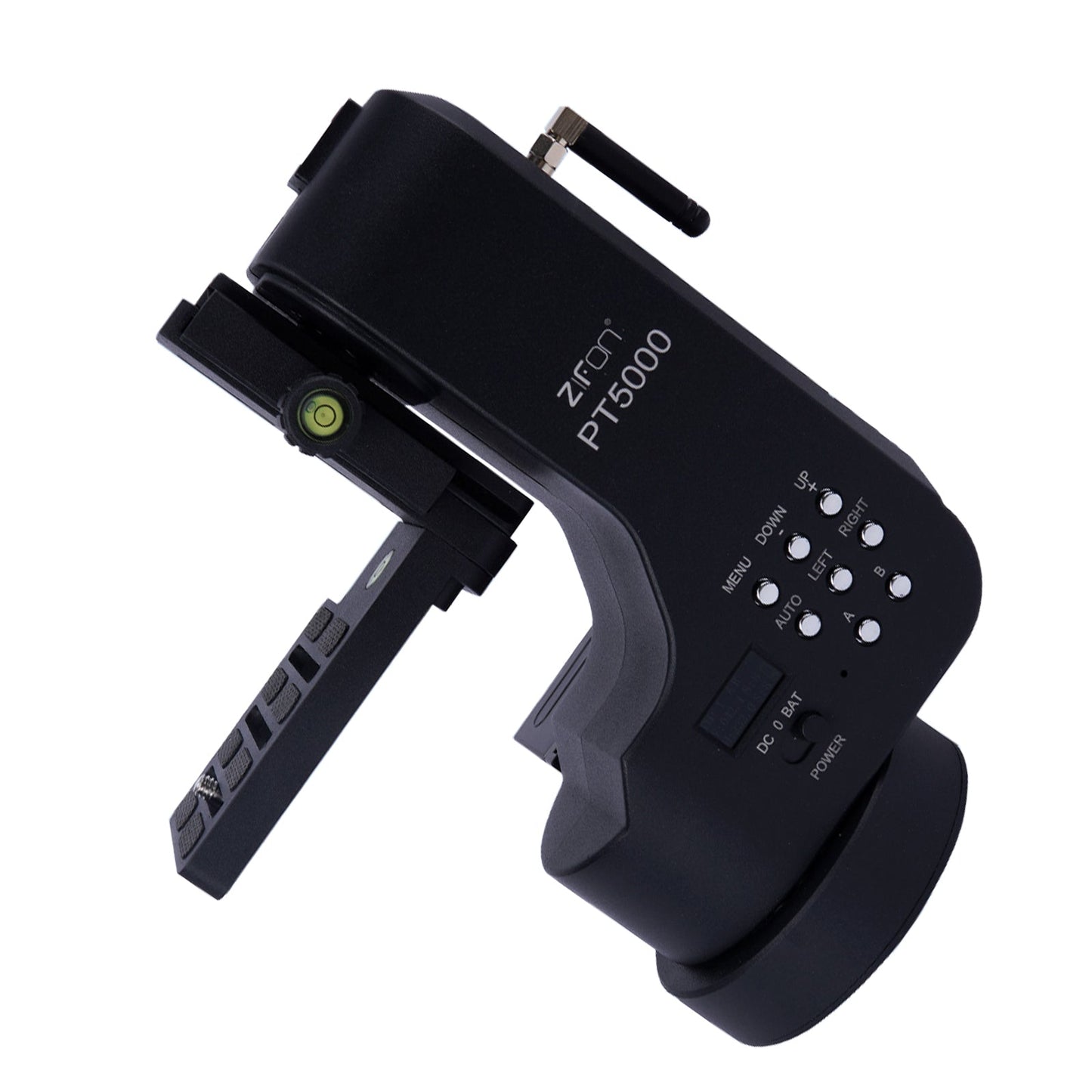

Pt5000 remote pan tilt has aluminum alloy body, the max load is 5 kg. It adopts high precision step motors and worm gears which have high accuracy,low noise and self-lock. There are 8 speed for pan and tilt, speed range is from 0.05r/min to 3.8r/min. This pan tilt is equipped with horizontal shooting quick plate&vertical shooting quick plate. It has 2 preset position, easily be set and one click return. Also it can scan automatically between A and B horizontally, the scan speed also can be adjusted. It has 2 remotes, the big remote adopts joystick control, high accuracy and easy operation , the remote distance >120m. the small remote is portable, can be easily operated by one hand. The pan tilt has shutter release port ,it connects the camera by cable and can take photos by remote. For out door use,F770/970battery can be installed.There is UNC1/4 screw hole & 3/8 screw hole at the bottom of the pan tilt, it can be easily installed on the tripod. It can be widely used on live stream, photo shooting, etc.

Features:
1. 2.4G wireless remote control
2. Strong stability
3. Suitable for shooting
4. Panorama mode
5. Suitable for tripod
6. Horizontal and vertical switching
7. One-button shooting
8. Two-axis linkage
9. Long-lasting battery life
10. 360° rotation
11. Load-bearing capacity of 5 kg
12. Two preset position switches

Specifications:
Pan angle: infinity
Tilt angle:87°
Pan speed:8speed,0.05r/min-3.8r/min
Tilt speed:8 speed,0.04r/min-1.3r/min
Remote:2.4G
Remote channel:00-99
Remote distance:big remote>120m:smallremote>30m
Remote battery:2*AA(big remote)2*AAA (small remote)
DC out:14.8v2a/8.4v3a(only adapter)
Load:5kg
Power:10w
Adapter:12v5a
Battery:fits Sony NP-F770/970
Suitable models: mobile phones, micro single, cameras, etc., no restrictions on models

Package Included:
1 x PT-5000 Camera Remote Control Electric Cloud Platform
1 x Power Cable
1 x Remote control
1 x Universal quick release plate
1 x instructions

Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
