NanoVNA-H Vector Network Antenna Analyzer 50KHz-1.5GHz MF HF VHF UHF Bare Metal

In stock
SKU: I016-A008
Regular price £49.89 GBP

NanoVNA-H Vector Network Antenna Analyzer MF HF VHF UHF Analyzer W/ SD Card Slot

Feature:
1: Support time domain analysis function (TDR).
2: The battery usage can be displayed on the interface.
3: Support typec-typec line, more convenient to connect to mobile phones ,Support to most Android phones with the same screen
display(Doesn't support for iPhone). Solve the problem of small screen, insufficient brightness and so on.
4: Changed the outer packaging, the world cover hot stamping carton, plastic inner protection. Reduce problems caused by transportation shocks and other processes.
5: Add a MicroSD card to save test data,Modify the port names to Port1 and Port2.
6: MicroSD supports up to 32GB, and only supports SPI mode.
7: Other details have been improved,Lower power supply noise, less noise when using harmonics.

Specifics:
Condition: 100% Brand New
PCB: 54 x 85.5 x 11mm / 2.1 x 3.4 x 0.4inches (without the size of connectors, switches)
Measurement Frequency: 50KHz -1.5GHz
RF Output: -13dbm (maximum -9dbm)
Frequency Accuracy: <2ppm
Measurement Range: 70dB (50kHz-300MHz), 50dB (300M-900MHz), 40dB (900M-1500MHz)
Port SWR: < 1.1
Display: 2.8 inch TFT (320 x240)
USB Interface: USB Type-C; Communications Mode: CDC (Serial)
Power Supply: USB 5V 120mA, built-in 400mAh electricity, maximum charging current 1A,Can be used continuously for more than 4 hours
Number of Calibration Points: 101 (Fixed)
Number of Scanning Points: 101 (Fixed)
Display Tracking: 4, Marking: 4, Save Setting : 5
Measuring S parameters, voltage standing wave ratio, phase, delay, Smith chart and the like

Note:
1.Please allow 1-3mm difference due to manual measurement.
2.The color might be a little different from the actual product due to color display of different monitors.

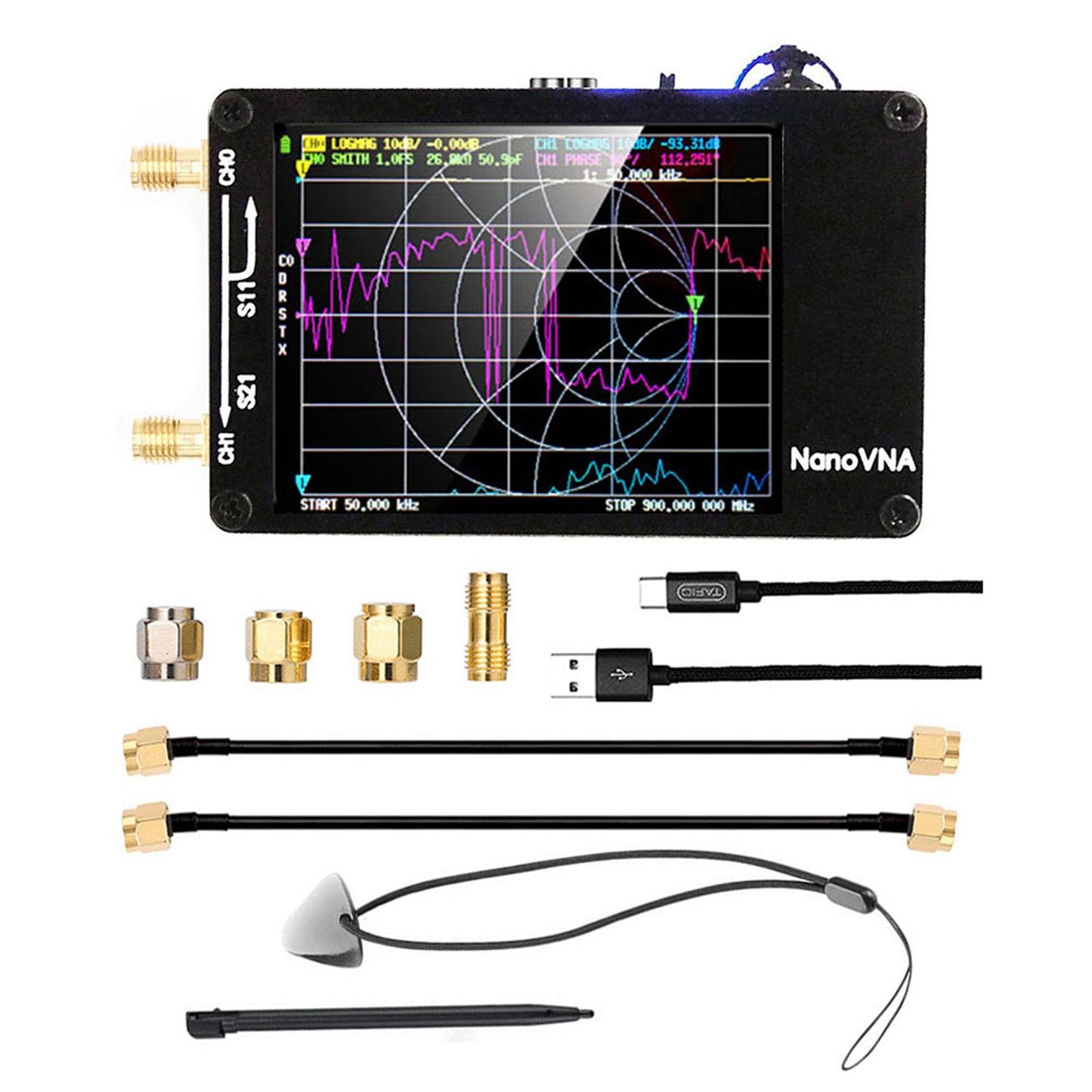

Package Included:
1X NanoVNA Host (2.8-inch touch screen and 400mAh battery is included)
2X 20cm SMA Male to Male RG174 RF Cable
2X SMA Female to Female Connector
1X SMA Simple Calibration Kit SHORT
1X SMA Simple Calibration kit OPEN
1X SMA Simple Calibration kit LOAD
1X USB Type-C Data Cable
1X Type-c to Type-c Line
1X Touch PenShipping
