Features:
1.Raspberry Pi HDMI IN
HDMI to CSI
HDMI input supports up to 1080p50hz

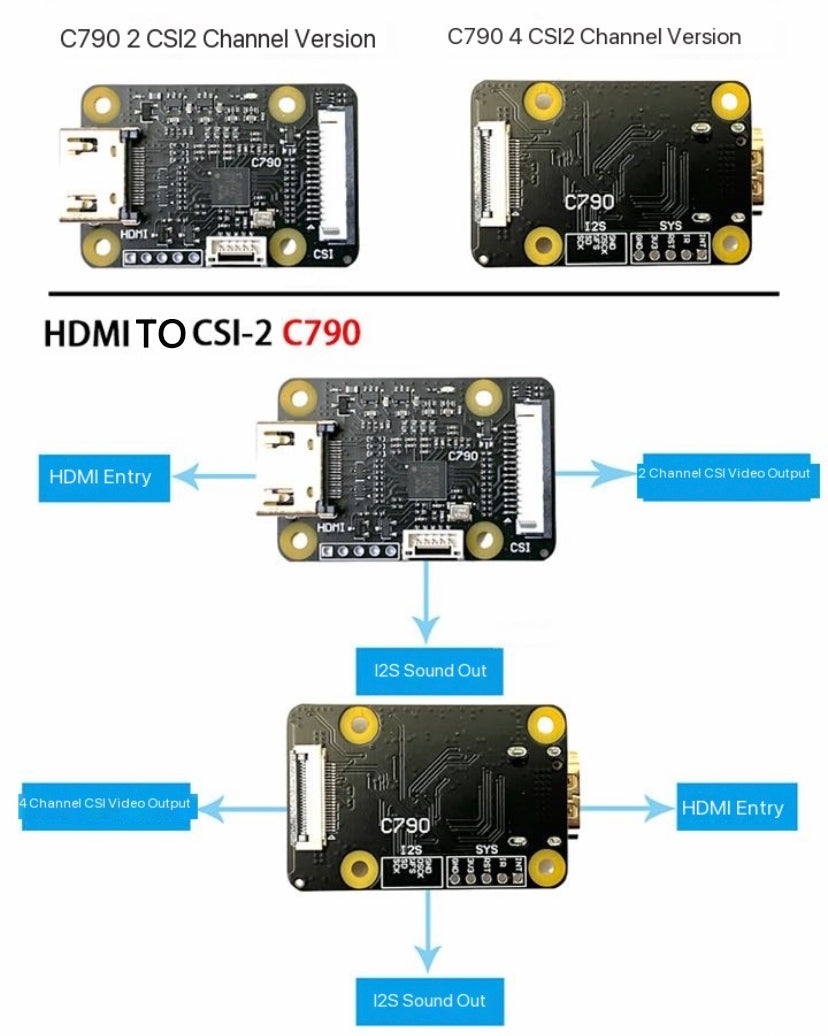

2.HDMI to CSI-2 C790
HDMI input supports up to 1080P60Hz and supports both video & audio
Supports the full range of Raspberry Pi, such as: ZERO/3B/3B+/4B/CM3/CM4
3.HDMI to CSI&I2S bridge guide
Convert HDMI signal acquisition into CS1 signal and I2S audio signal

Introduction:
This module takes the incoming HDMI signal and converts it into a separate CSI signal and 12S audio signal. HDMI input supports up to 1080P60Hz. It works well on raspberry pi, there are three versions of this module in history(C779、C780、C790).C790 is the latest version.C790 has mitigate HDMI backpowering,also has two csi channels and four csi channels at the same time.

Package Included:
Option1:
1x C790
1x FPC 15Pin 1.0mm
1x FPC 22Pin 0.5mm
1x I2S Cable
Option2:
1x C790
1x FPC 15Pin 1.0mm
1x FPC 22Pin 0.5mm
1x I2S Cable
1x Mounting Plate
2x Double-pass Copper Pillar M2.5x11
8x Round Head Screws M2.5x4
2x Double-pass Copper Pillar M2.5x6
Option3:
1x C779
1x FPC 15Pin 1.0mm

Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
