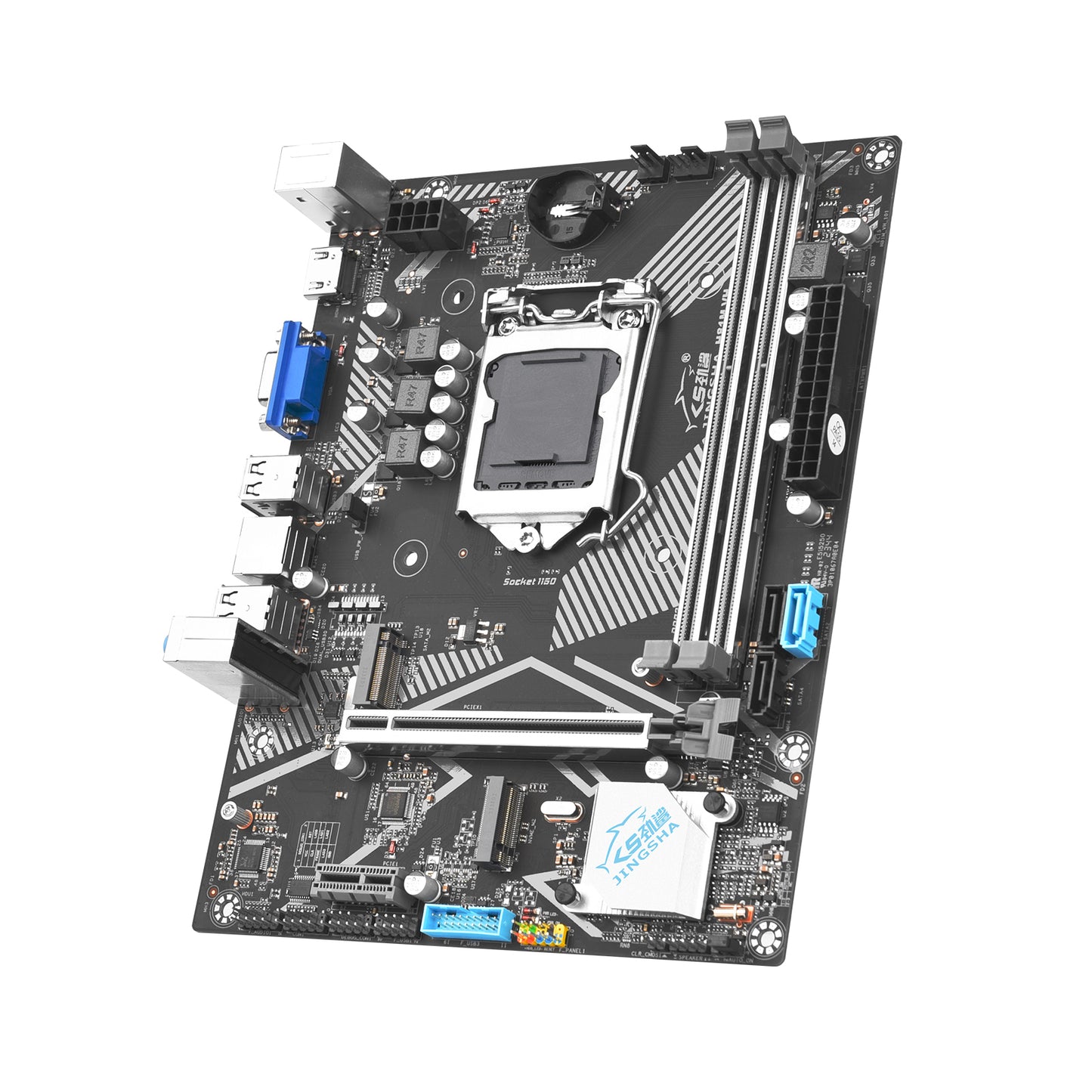

H81M VH Computer Motherboard Desktop DDR3 Memory LGA 1150-pin Gigabit Network Card supports M.2

Features:
100% brand new and high quality.
2*DDR3 dual channel
Dual channel, supports up to 16GB
Greatly improve motherboard performance
Full-speed M.2 NVME, M.2 NGFF interface
M.2 supports high-speed data transmission speed, stable and fast.
Supports LGA1150 intel 4th and 5th generation series CPUs
Paired with more cost-effective solution configurations to ensure the operation of the motherboard
heat resistant
Has high mechanical strength and can withstand high temperature and pressure
1*Gigabit network port
Adopt Gigabit network, designed for heavy-duty fast network
1*PCIE3.0 x16 slot
PCIE3.0 has higher bandwidth and lower latency

Specifications:
Product model: H81MVH motherboard
CPU: LGA1150 Intel 4th and 5th generation series CPU
Chip: Intel PCH H81
Memory: 2*UDIMM DDR3 1066/1333/1600MHz dual channel, supports up to 16GB
Storage: 1*SATA3.0, 2*SATA2.0, 1*M.2 2280 NVMe SSD port, 1*M.2 2280 NGFF SATA SSD port
USB: 6*USB2.0 interface, 2*USB3.0 interface
Network port: 1*RTL8111H, Gigabit network port
Audio: ALC897 7.1 channel chip
BIOS: AMI EFI BIOS
Rear I/O interface:
1*HDMI, 1*VGA, 4*USB2.0 interface, 1*RJ45 network port, 1*Audio(Line-out/Line-in/MIC), 1*PS/2 keyboard, 1*PS/2 mouse
Onboard interface:
1*4pin CPU FAN pin, 1*SYS FAN pin, 1*Front Audio pin, 1*F_USB3.0 pin, 1*F USB2.0 pin, 1*RS232COM pin, 1*Front control panel Pin, 1*Speaker pin, 1*24pin ATX power supply interface, 1*8pin 12V power supply interface
Expansion slots: 1*PCIE3.0 x16 slot, 1*PCIE2.0x1 slot
Specifications: Micro-ATX 215mm*170mm

Buying instructions:
1: Memory usage principle: first insert the main slot, and then insert the secondary slot. If only the secondary slot is inserted, the motherboard will not work.
2: Please allow 1-3mm differs due to manual measurement.
3: Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

Note:
This Motherboard does not come with CPU, memory, graphics card

Package Included:
1 x H81M VH PC Motherboard
