Product introduction:

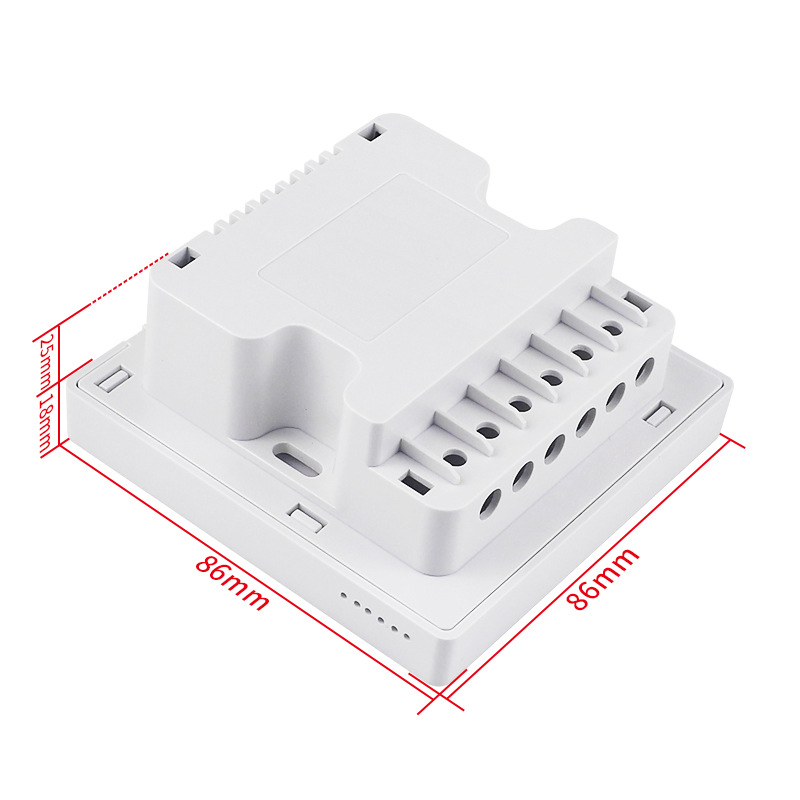

The 86 type intelligent control panel launched by QIWIS based on Loxin ESP32-S3 programme has two versions for customers to choose from: ZX3D95CE01S-TR and ZX3D95CE01S-R, the difference is that the TR series hardware contains temperature and humidity sensors, and the R series hardware does not contain them.

Parameter introduction:
Module Model:WT32-S3-WROVER-N16R8 Screen Size:4 inch IPS full screen Resolution:480*480, RGB565 Screen Driver IC:GC9503V Touch Driver IC:FT6336U
Sensor:Temperature and humidity sensing, SHT20 RS485:Using automatic send/receive 485 circuits
For other detailed parameters, please refer to the product specification

Note: ZX3D95CE01S-TR and ZX3D95CE01S-R are two 86 products, we only provide semi-finished products, the bottom case is left empty; users can add relay or RS485 power supply module according to the actual needs of their own products.

Package Included:
1*86 Type Intelligent Control Panel (with/without Temperature and Humidity Sensors)

Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
