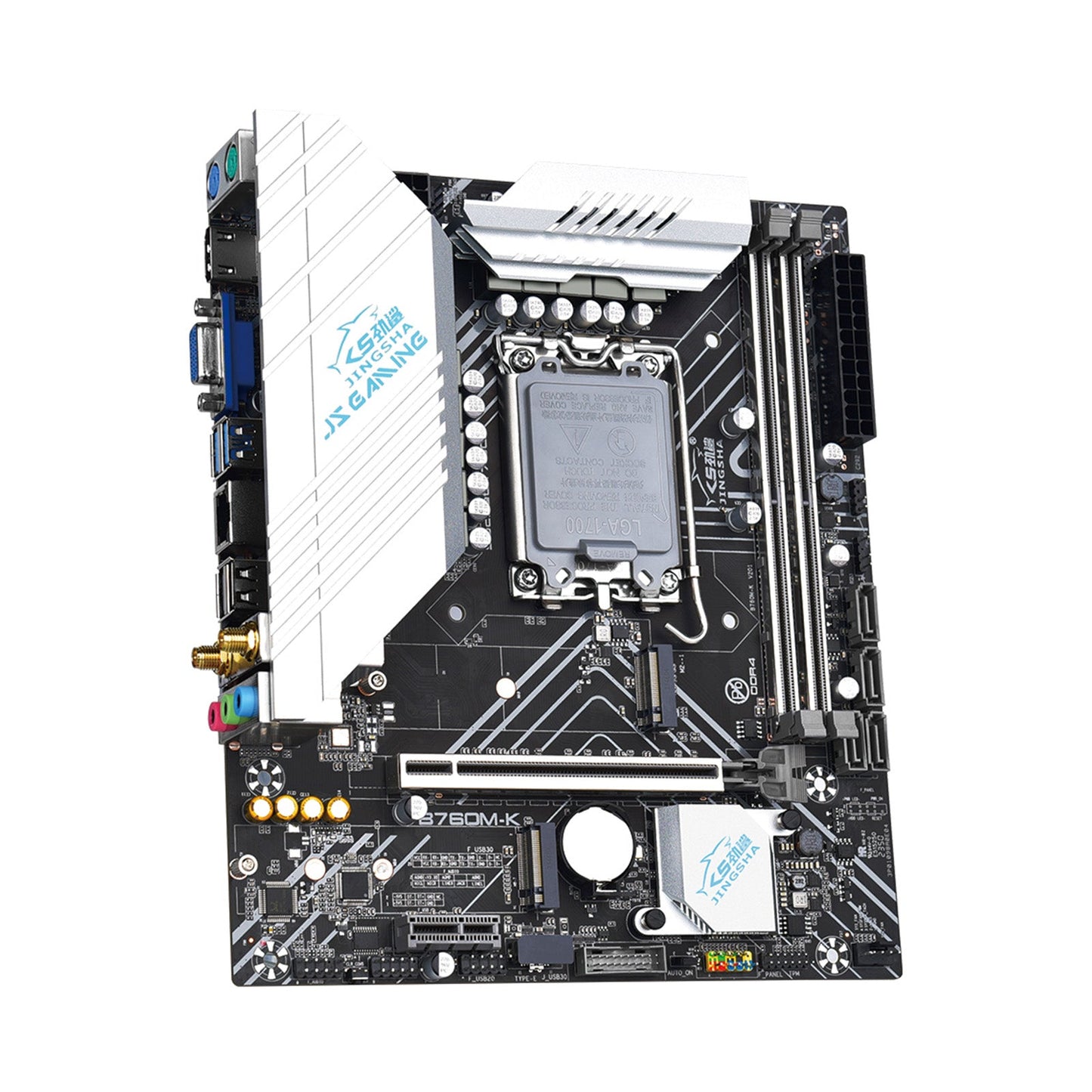

B760M-K Computer Motherboard LGA-1700 pin DDR4 Memory Dual M.2 Interface supports WIFI

Features:
100% brand new and high quality.
2*DDR4 memory slots
Supports up to 64GB, greatly improving the performance of the motherboard
2*M2_NVME interface
M.2 supports high-speed data transmission speed, stable and fast
Support LGA1700 CPU
Paired with more cost-effective solution configurations to ensure the operation of the motherboard
RGB LED
Multiple RGB interfaces to support the connection of multiple light strips or RGB devices
1*Gigabit network port
Adopt Gigabit network, dedicated to heavy-duty fast network
1*PCIE4.0 x16 slot
PCIE4.0 has higher bandwidth and lower latency

Specifications:
Product model: B760M-K motherboard
CPU: LGA1700 / Intel 12/13 generation series CPU
Chip: B760
Display: 1*VGA 1*HDMI 2.0: 3840*2160/60Hz
Memory: 2*DDR4-UDIMM/2133/2400/2666/3200(based on CPU), dual channel, supports up to 64GB
Storage: 4*SATA3.0 interface, 2*M.2 Type 2280/ Key M/PCle4.0x4/Support NVMe SSD
USB: 4*USB10Gb interface, 4*USB2.0 interface 1*USB TYPE-E Port, Support one USB 5Gb
Network port: 1*RTL8111H, 1000Mbps network port
Audio: ALC897 5.1
Rear I/O interface:
1*HDMI, 1*VGA, 2*USB10Gb interface, 2*USB2.0 interface,1*M.2/Key E, 1*RJ45 network interface, 1*audio 3-in-1 (Line-out/Line-in/MIC),1*PS/2 keyboard, 1*PS/2 mouse
Onboard interface:
1*4pin CPU fan pin, 1*4pin SYS fan pin, 1*front audio pin, 1*USB10Gb] pin (out of 2 USB10Gb interfaces), 1*USB2.0 pin (out of 2 indivual
Onboard interface USB2.0 interface), 1*USB TYPE-E interface (supports 1
USB5Gb), 1*Speaker pin, 3*5VRGB pin, 1*CMOS pin, 1*power pin,
1*24pin ATX power supply interface, 1*8pin12V power supply interface
Expansion slots: 1*PCIE4.0x16 slot, 1*PCIE3.0 x1 slot
Specifications: Micro-ATX 215mm*185mm

Buying instructions:
1: Memory usage principle: first insert the main slot, and then insert the secondary slot. If only the secondary slot is inserted, the motherboard will not work.
2: Please allow 1-3mm differs due to manual measurement.
3: Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

Note:
This Motherboard does not come with CPU, memory, graphics card

Package Included:
1 x B760M-K PC Motherboard

Warranty:
Returns: Customers have the right to apply for a return within 30 days after the receipt of the product.
24-Hour Expert Online: Solve your installation and product problems
