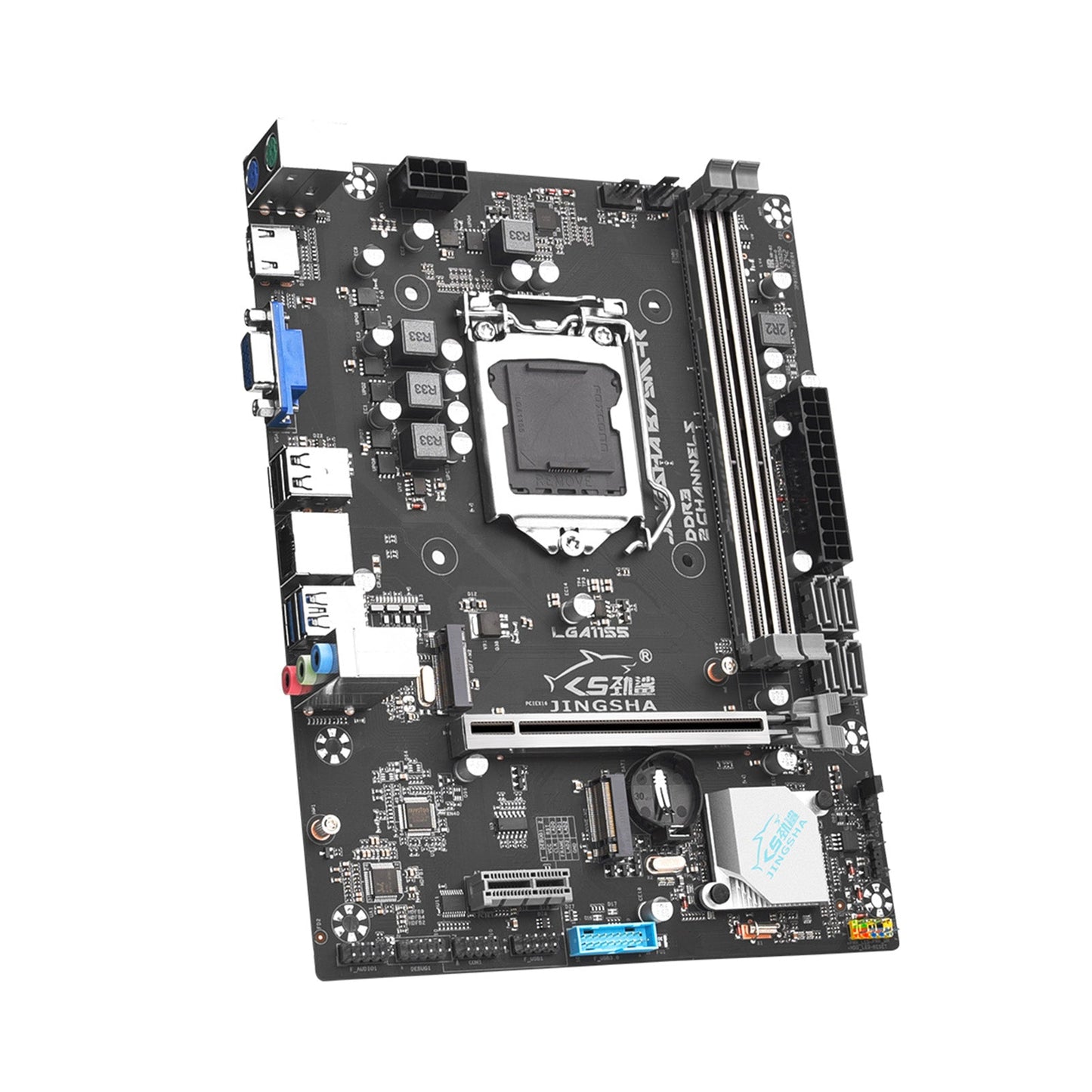

B75M-K Motherboard Computer Desktop Gigabit Network Card DDR3 Memory LGA-1155CPU Supports M.2

Features:
100% brand new and high quality.
2*DDR3 memory slots
Supports up to 16GB, greatly improving the performance of the motherboard
Full speed M.2 NVMe, M.2 NGFF interface
M.2 supports high-speed data transmission speeds that are stable and fast.
Support Intel GA1155 CPU
Paired with more cost-effective solution configurations to ensure the operation of the motherboard
heat resistant
Has high mechanical strength and can withstand high temperature and pressure
Gigabit network port
Adopt Gigabit network, dedicated to heavy-duty fast network
1*PCIE3.0 x16 slot
PCIE3.0 has higher transmission bandwidth and lower latency

Specifications:
Product model: B75M-K motherboard
CPU: intel Socket LGA1155 CPU
Chip: Intel PCH B75
Memory: 2*UDIMM DDR3 1066/1333/1600MHz(Base on CPU),Dual channel, Up to 16GB
Storage: 4*SATA2.0 Port, 1*M.2 2280 NVMex4 2.0 Port, 1*M.2 2280 NGFF SATA3.0 Protocol SSD Port
USB: 4*USB2.0 Ports,4*USB3.0 Ports
Network port: 1*RTL8111H, 1000Mbps Ethernet
Audio: ALC897 7.1 Channel Audio Chip
BIOS: AMI EFI BIOS
Rear I/O interface:
1*HDMI, 1*VGA, 2*USB3.0 Port, 2*USB2.0 Port,1*RJ45 LAN Port, 1*Audio 3-in-1(Line-out/Line-in/MIC), 1*PS/2 Keyboard, 1*PS/2 Mouse
Onboard interface:
1*4pin CPU SmartFAN header,1*SYS FAN header, 1*Front Audio header, 1*USB3.0 header(for two USB3.0 ports), 1*USB2.0 header(for two USB2.0 ports), 1*RS232 COM header, 1*Front control panel header, 1*Speaker header,1*24pin ATX connector, 1*8pin 12V connector
Expansion slots: 1*PCIE3.0 x16 slot, 1*PCIE3.0x1 slot
Specifications: Micro-ATX 223mm*170mm

Buying instructions:
1: Memory usage principle: first insert the main slot, and then insert the secondary slot. If only the secondary slot is inserted, the motherboard will not work.
2: Please allow 1-3mm differs due to manual measurement.
3: Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

Note:
This Motherboard does not come with CPU, memory, graphics card

Package Included:
1 x B75M-K PC Motherboard
