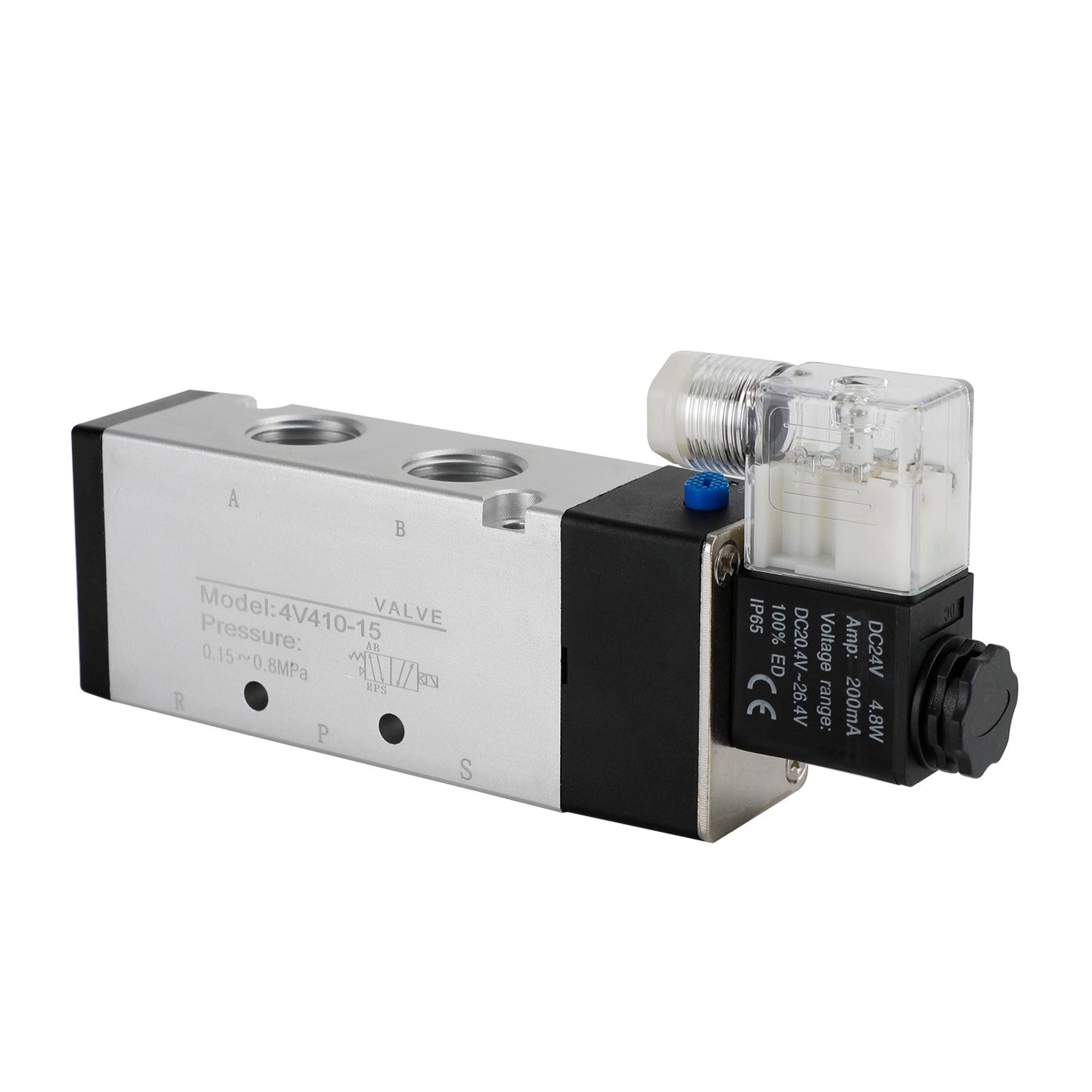

4V410-15 5 Way 2 Position PT1/2" DC 24V Pneumatic Electric Solenoid Air Valve

In stock
SKU: I012-A065-24V
Regular price £18.89 GBP

Specifics:
Condition: 100% Brand New
Name: Pneumatic Solenoid Valve
Model: 4V410-15
Voltage: DC 24V
Coil power: 4.8W
Voltage range: DC20.4~26.4V
Operating Pressure : 0.15 ~ 0.8MPa
Action: Internally Piloted Acting Type
Type: 5 Port 2 position
Port Size: Air Inlet=Air Outlet=1/2" BSPT
Working pressure range: 1.5~8(kgf/cm2)
Lubrication: Not required
Material: Aluminum alloy
Insulation: F Class
Protection: IP65
Temp. range: -5 - 60℃
Max. frequency: 7 cycles/s
Min. activate time: 0.05second
Total Size(Approx) : 16.8 x 7.4 x 5.0cm / 6.6" x 2.9" x 2.0" (L*W*H)

Note:
1.Please allow 1-5mm errors due to manual measurement.
2.Pay attention to check the components before use, whether they are damaged during transportation, and then install and use.
3.Please note that the gas flow direction and the takeover tooth type is correct installation.
4.When installing, pay special attention to whether the voltage meets the requirements. When debugging the whole machine,
it is recommended to use manual device debugging first, and then power on for debugging.

Package Included:
1 x Pneumatic Solenoid Air Valve


Shipping
1. Free Shipping
2. Location: Leicestershire
3. Shipping time: 3-8 buisness days via Royal Mail or FedEx.

Warranty:
Guarantee Period: 1 Years
Returns & Refunds: Customers can return the goods within 60 days of receipt and process quick refund within one day
24-Hour Support: Provide you with timely after-sale support
