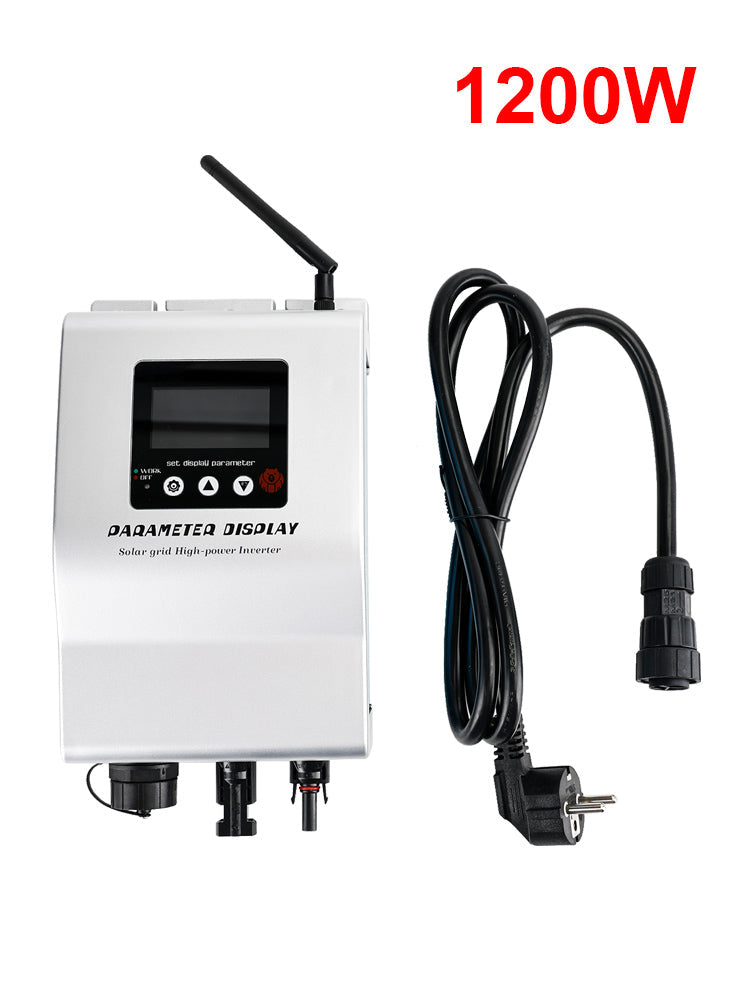

400W/600W/800W/1000W/1200W IP60 Waterproof Solar Inverter Grid Tie MPPT Micro Inverter

Note:
This product is of EU Plug, please make sure you don't mind before purchasing. If there is no European standard socket in your country or region, you can go to the online or offline store to buy the adapter, thank you!

APP download link:
BL500 Grid Ruiblue Power App
Android phone download link: http://fir.sdhzwl.cn/rbfq
Apple mobile phone download link: http://hzwl.sdhzwl.cn/index_lanrui.html

Product function description:
●Solar panel input, AC output to the grid to realize the power generation function.
●DC input range 17-50V, 220V grid voltage 180-260VAC, frequency range 47-52.5Hz; 110V grid voltage 80-160VAC, frequency range 57-62.5Hz. When purchasing, make sure that the purchased model AC220V or AC110V is compatible with the voltage used in the region.
●Output pure sine wave, fully match with the power grid, realize high-efficiency and low-consumption conversion mode, and low heat generation.
●The company's patented high-efficiency automatic power point tracking MPPT technology, reverse power transmission. The input and output are completely isolated to ensure the safety of power consumption.
●High reliability Multiple parallel stacked power generation, easy installation and maintenance, high-efficiency and flexible solar panels are matched with the usable area.
●Panel parameter display function, the display panel and the radiator can be separated and matched perfectly, with a unique and beautiful appearance.
●The machine with antenna realizes the remote management of mobile phone APP, supports WIFI and Bluetooth global operation, and records and manages power generation parameters.

Matters Need Attention:
★ Model AC220V or AC110V can be used consistent with the voltage used in the region.
★ Only professional personnel can install and maintain the equipment.
★ Strictly according to the inverter installation guide operation, installed in a well-ventilated, avoid rain, exposure, high temperature, damp place, and remove the surrounding flammable and explosive items.
★ Can only connect the solar panels, DC input 17-50V, according to the purchase of the product power to choose less than the power of the solar panel.
★Do not soak in water, do not wash with water.

Specifications:
400W:
Maximum Output Power： 400W
Voltage/maximum input current：36V/10A
Output parameters：AC120V
Rating frequency range：57-62.5Hz
Rated voltage range：80-160VAC
Maximum Units per Branch：3 units(single phase)
Maximum output efficiency：91%
Machine static loss power：<60mW
Environmental temperature range：-30℃ to +70℃
Power transmission mode: reverse transmission, load preferred use
Waterproof Grade：IP60
600W:
Maximum Output Power： 600W
Voltage/maximum input current：36V/15A
Output parameters：AC120V
Rating frequency range：57-62.5Hz
Rated voltage range：80-160VAC
Maximum Units per Branch：3 units(single phase)
Maximum output efficiency：91%
Machine static loss power：<60mW
Environmental temperature range：-30℃ to +70℃
Power transmission mode: reverse transmission, load preferred use
Waterproof Grade：IP60
800W:
Maximum Output Power： 800W
Voltage/maximum input current：36V/20A
Output parameters：AC220V
Rating frequency range：47-52.5Hz
Rated voltage range：180-260VAC
Maximum Units per Branch：5 units(single phase)
Maximum output efficiency：91%
Machine static loss power：<80mW
Environmental temperature range：-30℃ to +70℃
Power transmission mode: reverse transmission, load preferred use
Waterproof Grade：IP60
1000W:
Maximum Output Power： 1000W
Voltage/maximum input current：36V/25A
Output parameters：AC220V
Rating frequency range：47-52.5Hz
Rated voltage range：180-260VAC
Maximum Units per Branch：5 units(single phase)
Maximum output efficiency：91%
Machine static loss power：<80mW
Environmental temperature range：-30℃ to +70℃
Power transmission mode: reverse transmission, load preferred use
Waterproof Grade：IP60
1200W:
Maximum Output Power： 1200W
Voltage/maximum input current：36V/30A
Output parameters：AC220V
Rating frequency range：47-52.5Hz
Rated voltage range：180-260VAC
Maximum Units per Branch：5 units(single phase)
Maximum output efficiency：91%
Machine static loss power：<80mW
Environmental temperature range：-30℃ to +70℃
Power transmission mode: reverse transmission, load preferred use
Waterproof Grade：IP60

Package Included:
1x micro inverter
1x manual（English）
1x antenna
1x EU plug AC power cable
