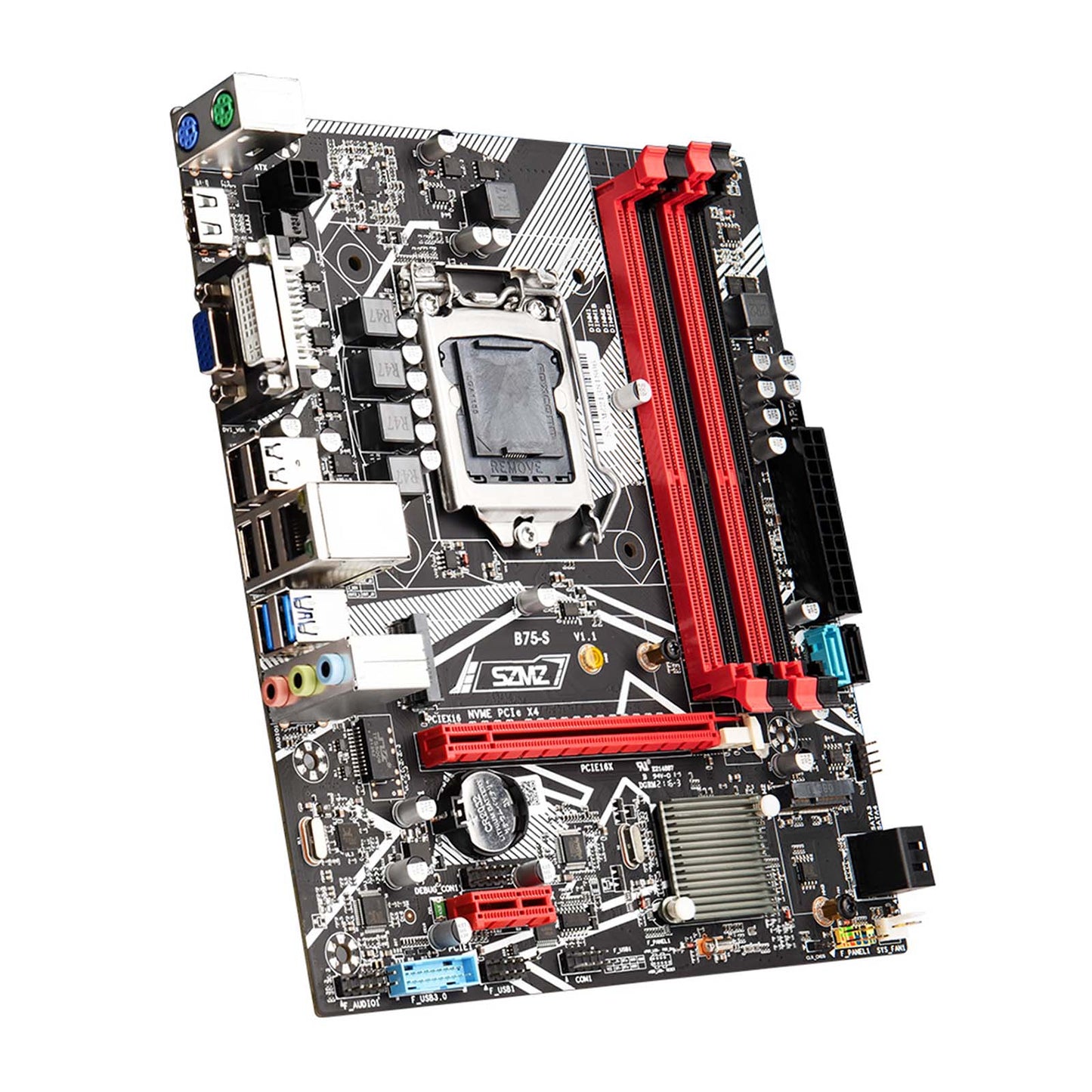

B75-S Motherboard Lga 1155 Support 4*ddr3 USB3.0 Sata3 Nvme Wifi Bluetooth

In stock
SKU: W001-A189
£57.89 GBP

B75-S Motherboard LGA 1155 support 4*DDR3 USB3.0 SATA3 NVME WIFI Bluetooth Placa Mae 1155 Plate Board PC gamer B75-S LGA1155

Features:
100% brand new and high quality.
8-Layer PCB , Stable and Cost-Effective .
Support 4*DDR3 PC Memory Dual Channels up to 32GB.
Onboard High Speed NVMe M.2 Interface .
Onboard NGFF M.2 KeyA&E WIFI (support WIFI+Bluetooth) .
Onboard DVI , VGA , HDMI video output interface .
Support USB3.0 , SATA3.0 .
High compatibility for a higher experience.
All solid capacitors, fine workmanship, professional stability.

Specifications:
Coin Cell Battery: CR2032L 3V(Not Included,need to buy it your own , installation is simple, Press it into the battery slot.It's done.)
Condition : Full new
Form Factor : M-ATX, 223.5mm x 195mm
Chipset : Intel? 7 Series Chipsets
CPU socket : LGA 1155
CPU supported : support Pentium / Celeron / Core i3 i5 i7 i9 , 2nd generation and 3rd generation processors with socket type LGA1155
Memory socket : 4* DDR3 PC RAM 1066/1333/1600MHz
Max memory : Support Dual Channel Architecture up to 32GB
Graphic card slot : PCI-E 16X , PCI-E 1X
Storage : 1* SATA3.0 , 3* SATA2.0
USB Ports : 4* USB3.0 , 6* USB2.0
Expansion slots : 1*NVME M.2 , 1*NGFF M.2 KeyA&E WIFI (support WIFI+Bluetooth)
LAN : Onboard 1* Realtek RTL8111F Chipset, Gigabit Ethernet
Audio : Realtek Audio Codec ALC662, 5.1 Sound Channel Supported.
PSU Solution : ATX 4Pin + ATX 24Pin
Accessories : 1 x I/O Shield ,1 x SATA cable

Buying instructions:
1: Memory usage principle: first insert the main slot, and then insert the secondary slot. If only the secondary slot is inserted, the motherboard will not work.
2: Please allow 1-3mm differs due to manual measurement.
3: Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

Note:
The Coin Cell Battery:CR2032 3V Cell Battery is Not Included,need to buy it your own , installation is simple, Press it into the battery slot.It's done. Easy.
This Motherboard does not come with CPU, memory, graphics card

Package Included:
1 x B75-S PC Motherboard

Shipping
1. Free Shipping
2. Location: Leicestershire
3. Shipping time: 3-8 buisness days via Royal Mail or FedEx.

Warranty:
Guarantee Period: 1 Years
Returns & Refunds: Customers can return the goods within 60 days of receipt and process quick refund within one day
24-Hour Support: Provide you with timely after-sale support
