Description:

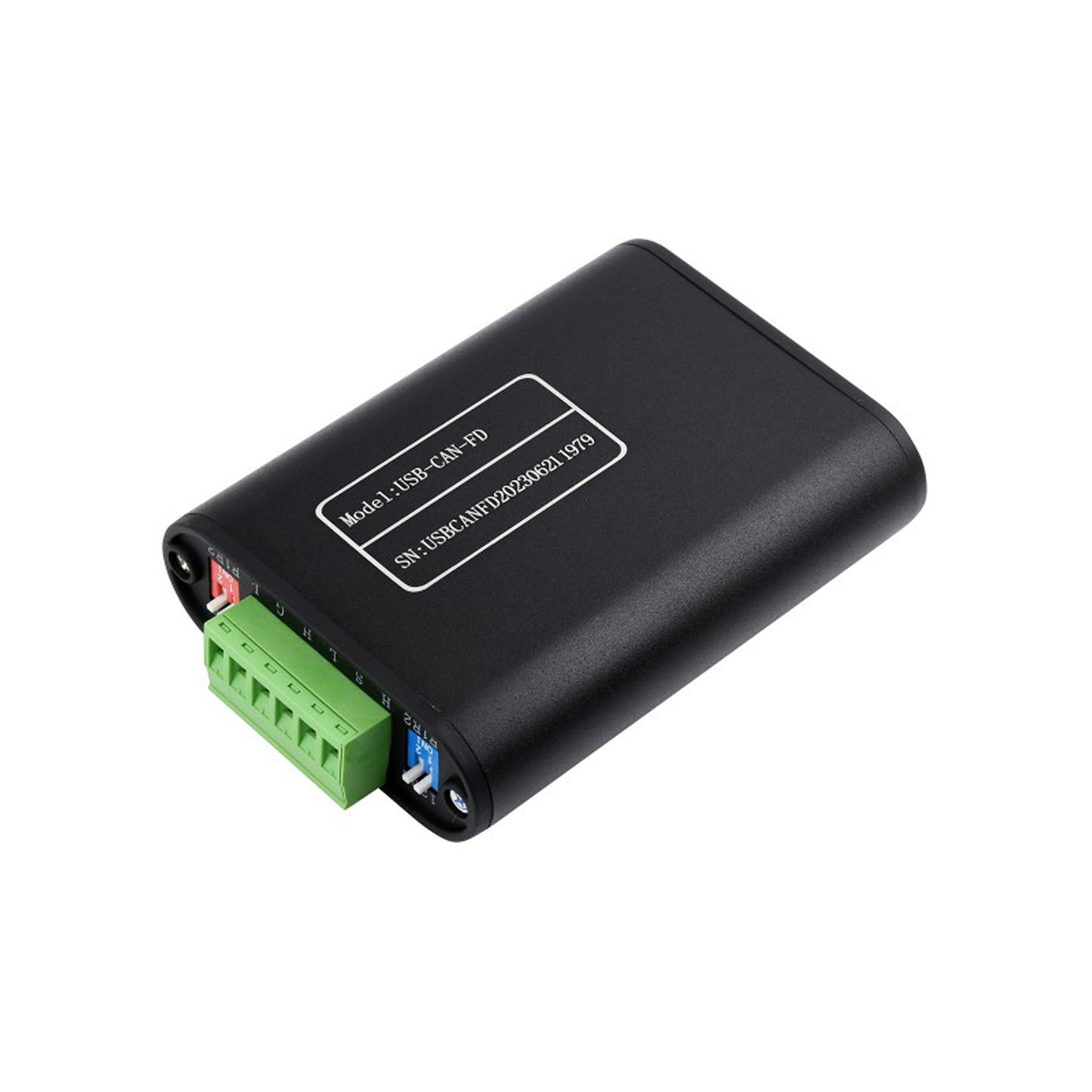

USB-CAN-FD is an industrial-grade high-performance USB to CANFD interface converter, CAN/CAN FD bus communication interface card and CAN/CANFD protocol data analyzer. It integrates two independent CAN FD interfaces with electrical isolation and Multiple protection circuits; support Windows XP/7/8/10/11 systems, provide drivers, CAN FD Tools related software, secondary development call examples and tutorials, etc.
It can be connected to PC or industrial control host through USB to realize the sending and receiving control, data analysis and collection and monitoring of CAN/CANFD bus network. This product is small in size and easy to use. It can be used for introductory learning and debugging of CAN/CANFD bus. It can also be used for secondary development and integration into various industrial, power communication and intelligent control application scenarios that require CAN/CANFD bus communication. middle.

Specifications:
Type: Industrial grade: USB to CAN FD interface converter, CAN/CAN FD bus communication interface card, CAN/CAN FD protocol data analyzer
USB interface:
Working level: 5V (direct power supply through USB port, no additional power supply required)
Interface form: USB-B type interface
CAN/CAN FD interface:
Number of CAN/CAN FD channels: two channels: CAN1 and CAN2 (independent of each other, independent of each other, fully isolated, isolation voltage 3000VDC)
Interface form: terminal interface (OPEN6 pitch 5.08mm)
Matching resistor: Each CAN/CANFD has two built-in 120惟 terminal resistors, which can be enabled through switches
Communication rate: 100Kbps~5Mbps (configurable by software)
Protocol support: CAN2.0A and 2.0BISO11898-1CAN FD protocol specification V1.0 protocol
Data sending and receiving capability: the reception of each CAN/CAN FD can reach 20,000 frames/s, and the transmission can reach 5,000 frames/s
Data transceiver buffer: Each CAN/CANFD receive buffer is 1500 frames, and the transmit buffer is 64 frames (automatic retransmission when transmission fails)
Indicator light:
PWR: power indicator light
SYS: System status indicator, normally off; when there is an error on the bus, it is always on
CAN1: CAN1 channel indicator light (flashing when sending and receiving data)
CAN2: CAN2 channel indicator (flashing when sending and receiving data)
Support system: Windows: WindowsXP/7/8/10/11 (32-bit and 64-bit), currently does not support Linux system, the related driver is under development
Working temperature: -40~85鈩?br>Shell material: Aluminum alloy metal body + 3D flame-retardant insulating baffles on both sides; this shell design and material combination can better prevent metal tip discharge and improve the safety factor and service life of the product
Product size: 104*70x25mm

Package Included:
1x USB-CAN FD
1x USB cable Type A to Type B
1x 4 PIN cable
1x Screwdriver
