Generator Stator Fit for Sea-Doo GTI GTX GTR RXP RXT WAKE 130 155 170 230 300 2018-2021 420889728

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.

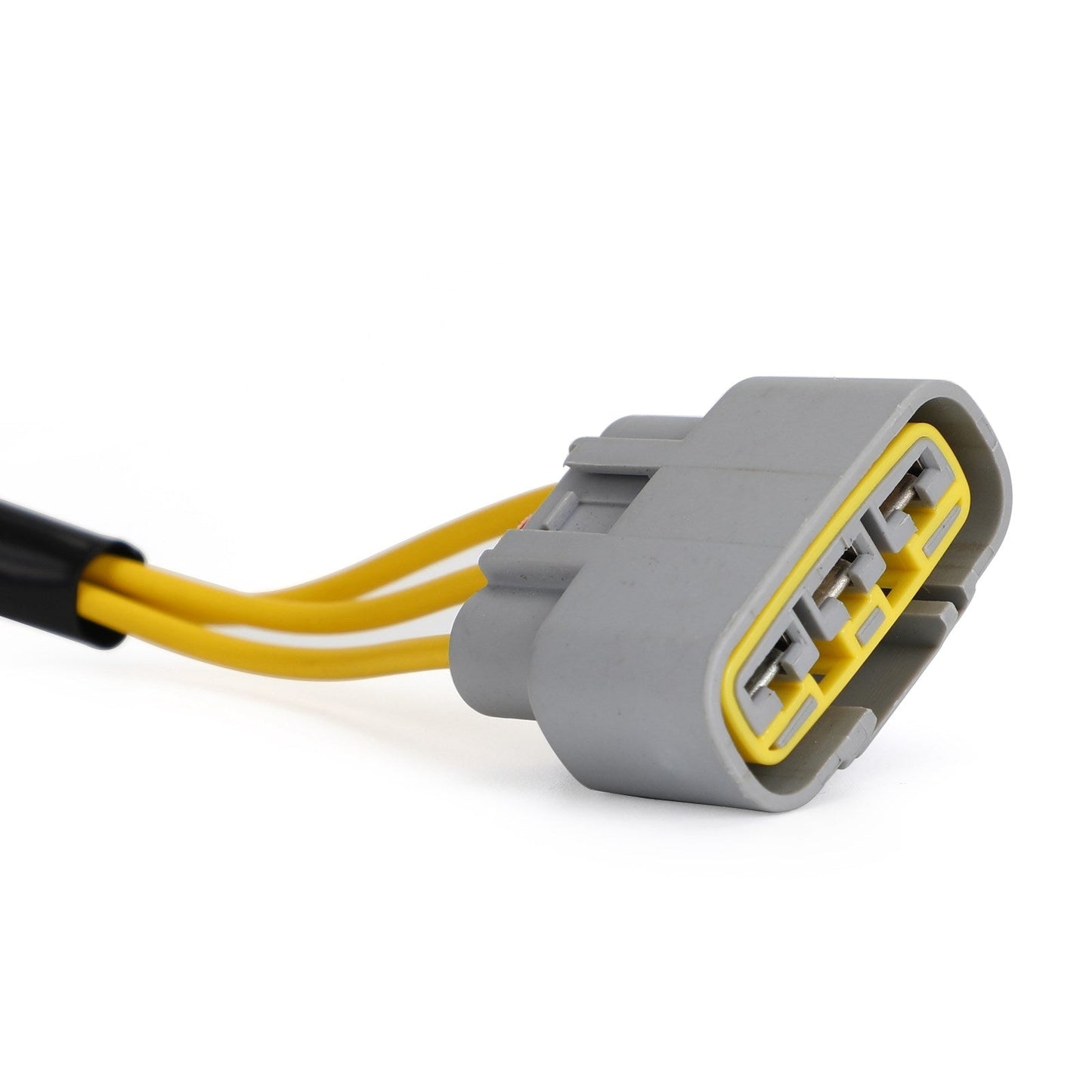

Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Dimensions :
Interior diameter : 42mm
Exterior diameter : 103mm
Pole's Thickness : 33mm
Pole's Width : 12mm

Other Specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Number of fixation holes: 3(+1)
Number of poles: 18

Replacement Part Number:
420889728

Fitments:
Fit for Sea-Doo GTI 130 2018-2020
Fit for Sea-Doo GTI 130 PRO 2020
Fit for Sea-Doo GTI SE 130 2020-2021
Fit for Sea-Doo GTI SE 170 2020
Fit for Sea-Doo GTI 155 2018-2019
Fit for Sea-Doo GTR 230 2018-2021
Fit for Sea-Doo GTX 155 2018-2019
Fit for Sea-Doo GTX 170 2020-2021
Fit for Sea-Doo GTX 230 2018-2021
Fit for Sea-Doo GTX 300 2018-2021
Fit for Sea-Doo GTX LIMITED 300 2021
Fit for Sea-Doo GTX PRO 130 2021
Fit for Sea-Doo RXP X 300 2021
Fit for Sea-Doo RXP 300 2018-2019
Fit for Sea-Doo RXT 230 2018-2020
Fit for Sea-Doo RXT 300 2018-2020
Fit for Sea-Doo WAKE 155 2018-2019
Fit for Sea-Doo WAKE 170 2020
Fit for Sea-Doo WAKE PRO 230 2018-2021
Fit for Sea-Doo FISH PRO 170 2019-2021

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
