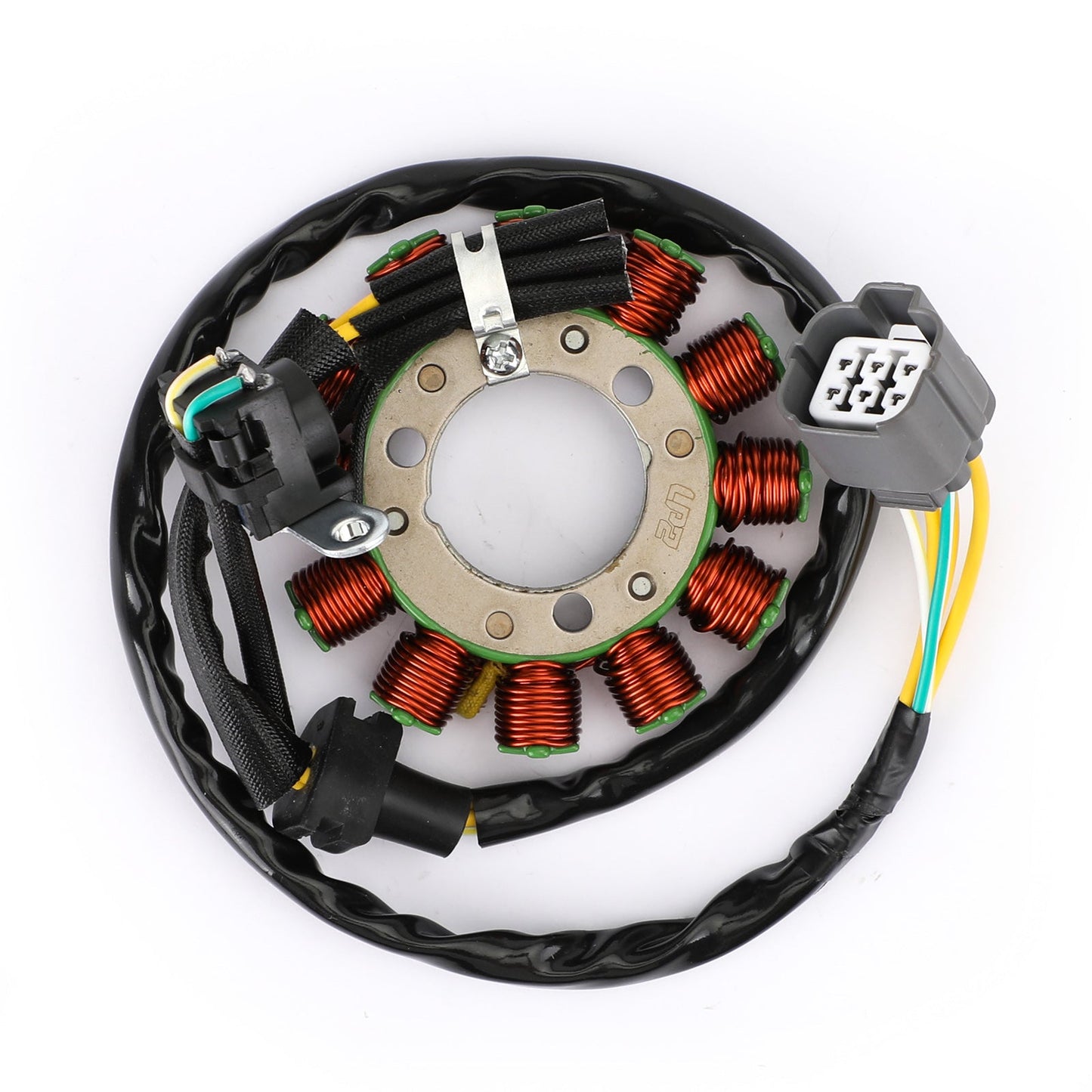

Stator Magneto Fit for Kawasaki KX250F KX450F 2009-2020 21003-0147 21003-0102

In stock
SKU: M550-A510~HWP
Regular price £41.89 GBP

Magneto Generator Engine Stator Coil Fit For Kawasaki KX 250 F 4T 2011-2020 KX 450 F 2009-2018

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Specifics:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Dimensions :
Interior diameter : 34.8mm
Exterior diameter : 89mm
Pole's Thickness : 21.8mm
Pole's Width : 13.8mm

Other Specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 1
Number of fixation holes: 3
Number of poles: 12

Reference Part Number:
21003-0102
21003-0147
21003-0082
21003-0148
21003-0168

Fitments:
Fit for Kawasaki KX250F KX250 2011-2016
Fit for Kawasaki KX250F KX252 2017-2020
Fit for Kawasaki KX250 KX252 2019-2020
Fit for Kawasaki KX450F KX450 2009-2018

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package includes:
1x Generator Stator Coil

Note:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping
1. Free Shipping
2. Location: Leicestershire
3. Shipping time: 3-8 buisness days via Royal Mail or FedEx.

Warranty:
Guarantee Period: 1 Years
Returns & Refunds: Customers can return the goods within 60 days of receipt and process quick refund within one day
24-Hour Support: Provide you with timely after-sale support
