Voltage Regulator Rectifier Fit For Suzuki Dr 650 Rse / Dr 750 800 S Big 1988-1996

Features:
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
No assembly required.
Higher grade of electric components.
Improved heat sink and charging capabilities.
The quality exceeds or meet the OEM equipment.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1 PC
Type: Voltage Regulator Rectifier

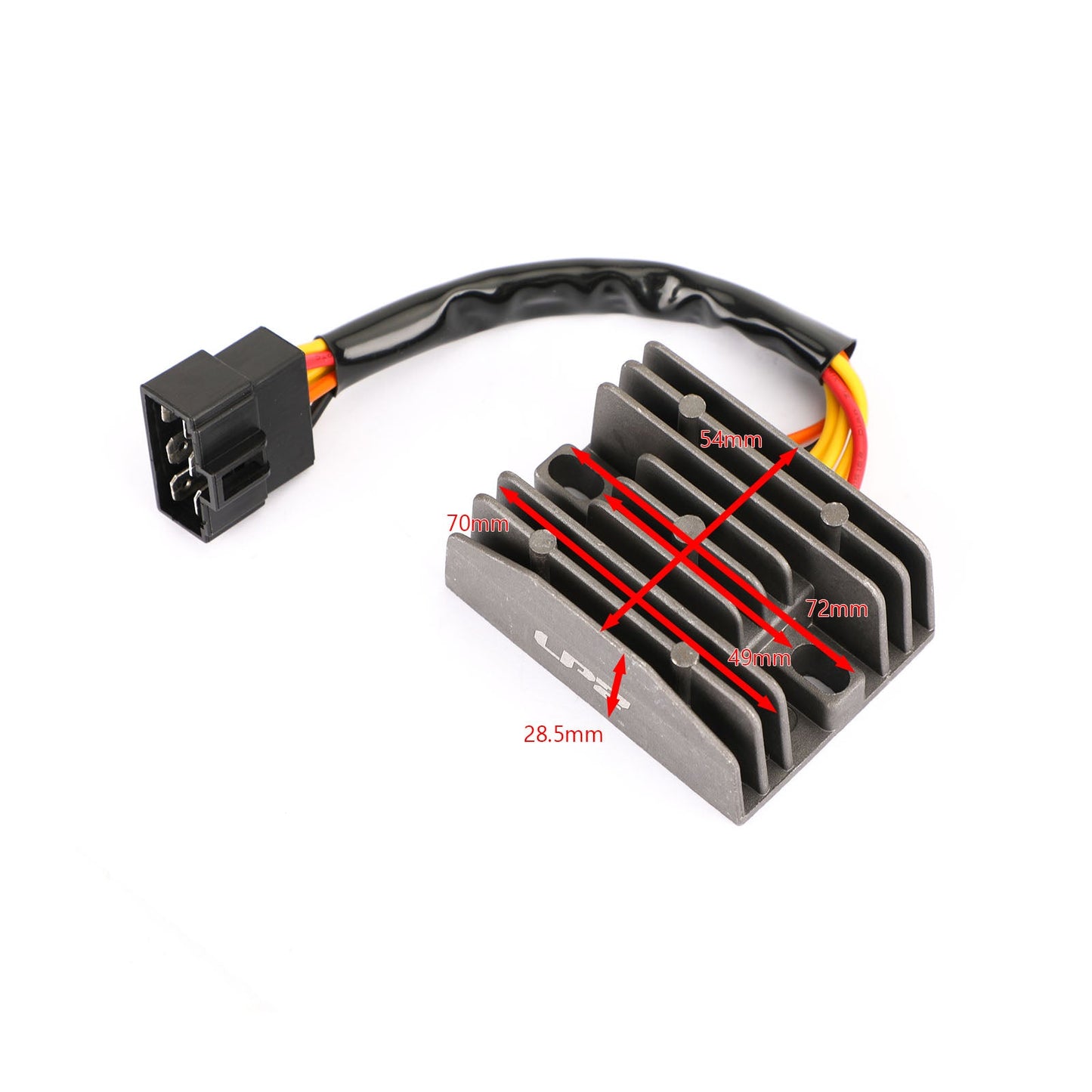

Dimensions:
Length: 70mm
Width: 54mm
Height: 28.5mm
2 Oval Mounting Holes Distance: 72mm (Outer)/ 49mm (Inner)

Other Specifications:
Number of plug interface pins: 6
Number of Plugs: 1
Number of Wires: 6

Reference Part Number:
32800-34A00
32800-34A01

Fitment:
Fit for Suzuki DR650 RSE 1991-1996
Fit for Suzuki DR750 S Big 1988-1989
Fit for Suzuki DR800 S Big 1991-1996

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package includes:
1x Voltage Regulator Rectifier

NOTICE:
Before installing your new voltage regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
