NVIDIA Jetson Orin Nano/NX Ethernet POE Power Supply Expansion Board Supports 802.3af/at

Description:

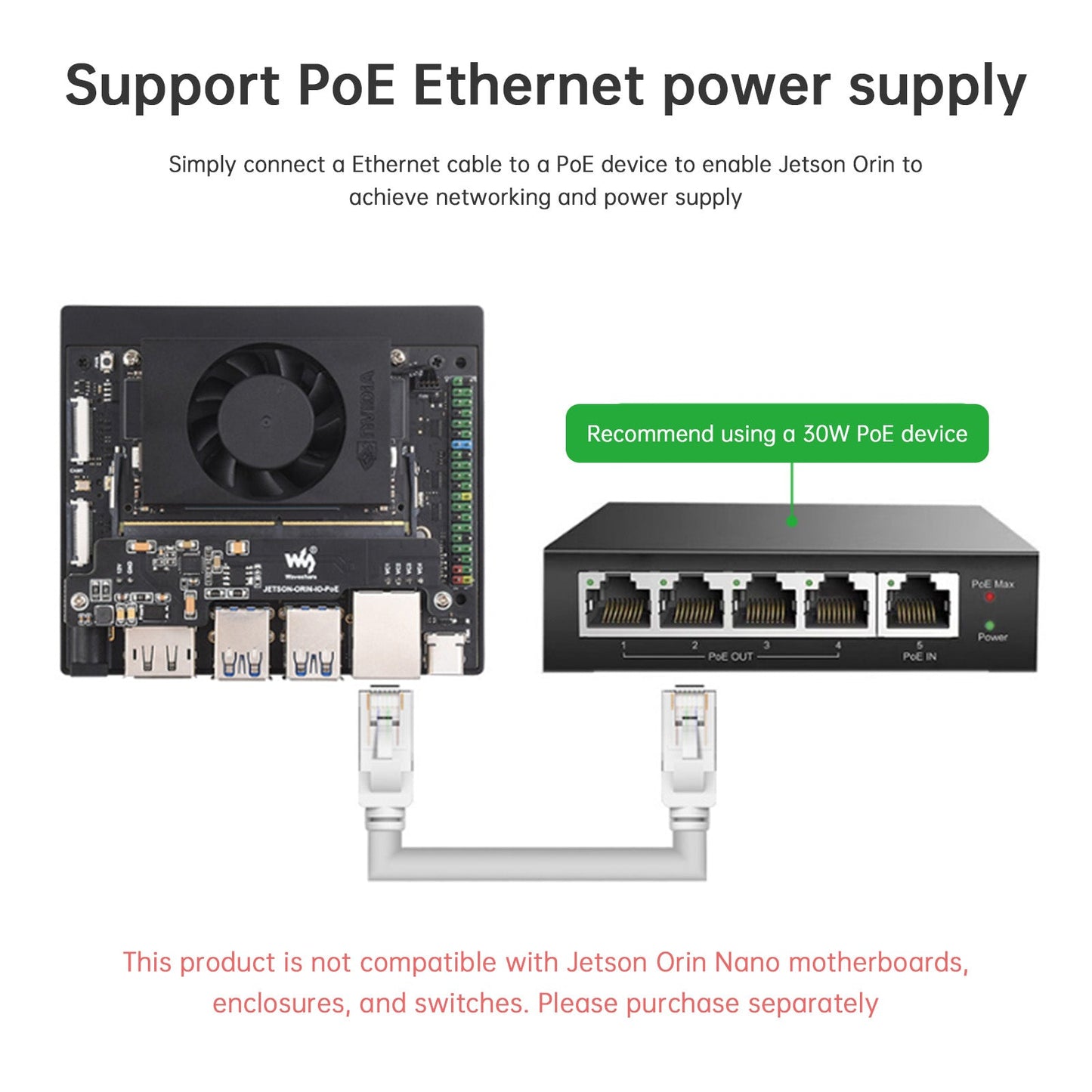

This is a mini expansion board for NVIDIA Jetson Orin Nano/NX motherboards that supports IEEE 802.3af/at network standards. If you already have a PoE router or switch that supports this network standard, with this expansion board, you only need to connect a network cable to enable the Jetson Orin motherboard to achieve networking and power supply functions.

Features:
1. Applicable to Jetson Orin Nano or Jetson Orin NX
2. Supports PoE Ethernet power supply and IEEE 802.3af/at PoE network standards
3. Uses fully isolated switch mode power supply (SMPS)
4. Uses a more compact component layout solution, with a smaller overall size and more flexible use

Specification:
PoE power input: 37V ~57V DC input
Power output: 12V 2.1A DC output
Network standard: Support IEEE 802.3af/at PoE
Product size: 21x 92mm

Package Include:
1x PoE expansion board body
2x Self-tapping hexagonal studs
1x 40-pin straight pin header
1x Small cross socket
