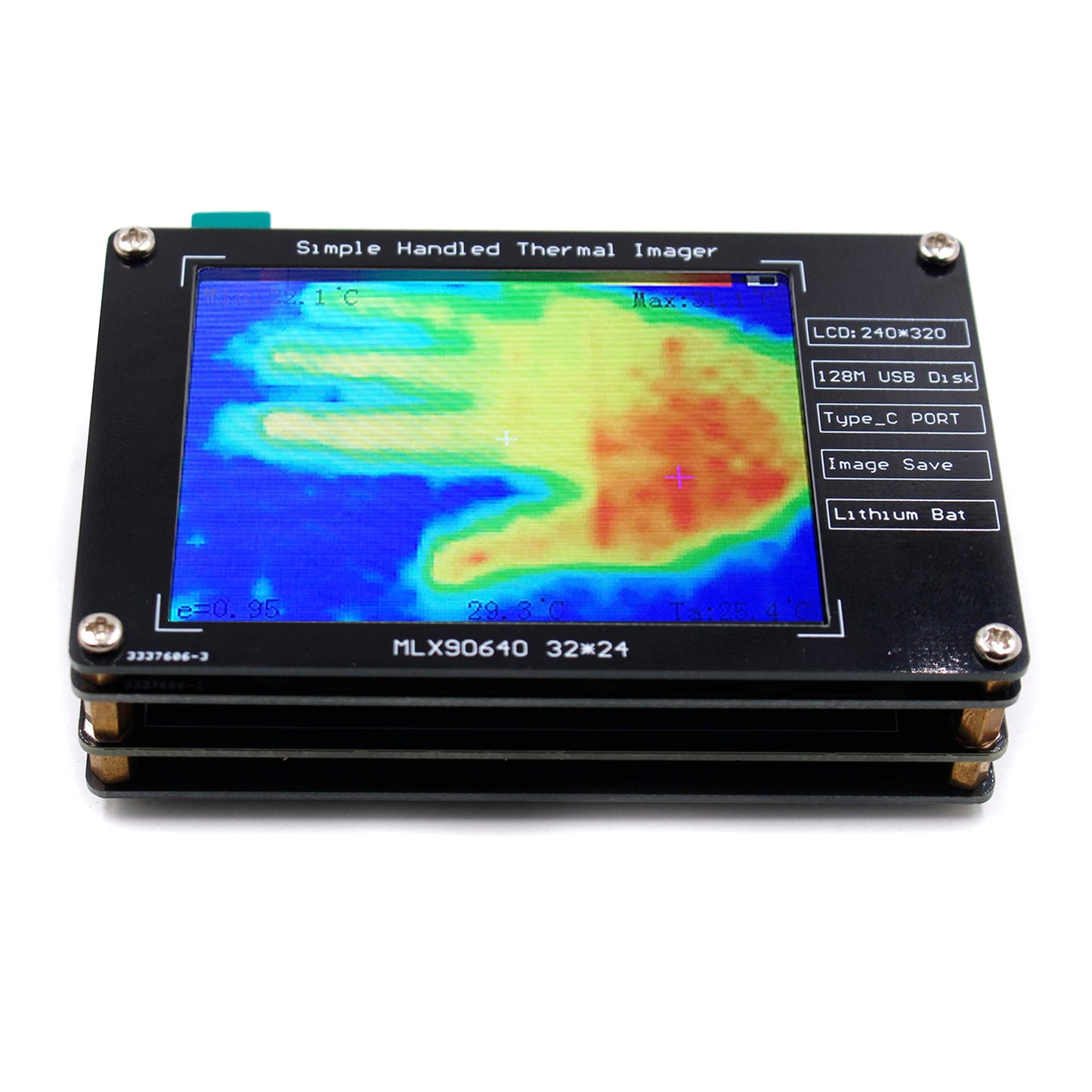

MLX90640 Digital Thermal Imager 2.8" Infrared Temperature Sensors Detection Tool

In stock
SKU: I018-A049
Regular price £76.88 GBP

MLX90640 Digital Thermal Imager 2.8" Infrared Temperature Sensors Detection Tool

1: Compact, lightweight, and portable, it is easy to carry and does not take up too much space.
2: Its uses FR4 epoxy outershell material for better protecting internal component and has a long service lifespan.
3: Adopt infrared sensors, 32*24 pixel far infrared array, clearly imaging.
4: Real-time measurement, with -40℃ to +300℃ measurement ranges, and an 8Hz dynamic refresh rate.
5: 2.8inch large LCD color screen, with 240*320 resolution, clearly displays and tracks the maximum temperature, the minimum temperature, and the center point temperature.
6: Built-in a lithium-ion battery, USB Type-C charging design, long battery lifespan, support charging while in use.
7: This thermal imager has a photo-taking and photo memory function within its built-in SPI flash chip, which can store up to 99 pictures.
8: With a data transmission interface, you can view and copy imagefiles by connecting computers or mobilephones with a data cable.
9: With integrated design, it can operate smoothly without external devices.
10:This product combines the functions of surface temperature measurement and real-time thermal imaging, suitable for both the human temperature detection function and the industry temperature detection function.

Condition: 100% Brand New
Name: Thermal Imager
Materials: epoxy sheet + printed circuit board
Battery: 3.7V 800mAh lithium-ion battery (included)
Infrared sensors: MLX90640ESF-BAB
Hardware resolution: 32*24 pixel far infrared array
Screen resolution: 320*240 pixels
Temperature measurement range: -40℃ to 300℃
Measurement accuracy: ±2℃
Working temperature: 0 to 50℃
Working humidity: ≤ 70%
Refresh rate: 8Hz
Field of view: horizontal 55° * 35° vertical
Emissivity: 0.95
Charging specification: USB Type-C5V/1A
Working time: ≥4 hours
Item size: 85 * 55 * 30mm / 3.35 * 2.17 * 1.18in
Package size: 120 * 90 * 32mm / 4.72 * 3.54 * 1.26in
Package weight: 150g / 5.29ounce

- High-precision non-contact temperature measurement
- Security and intrusion detection
- Body temperature detection
- Intelligent ambient temperature measurement and control of buildings
- Car air conditioning control
- Microwave oven and oven temperature detection and control
- Temperature monitoring of industrial parts
- Visual temperature sensor
- Floor heating equipment side leakage and maintenance
- Thermal inspection of circuit boards and components

1.Please allow 1-3mm difference due to manual measurement.
2.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Package Included:
1* Thermal Imager
1* USB Type-C
1* Mirror cleaning cloth

1. Free Shipping
2. Location: Leicestershire
3. Shipping time: 3-8 buisness days via Royal Mail or FedEx.

Guarantee Period: 1 Years
Returns & Refunds: Customers can return the goods within 60 days of receipt and process quick refund within one day
24-Hour Support: Provide you with timely after-sale support

Customer Reviews

Based on 1 review
Mark Azoulay
Works much better than expected!

I used it to find cold air leaks in my house. Worked great.
