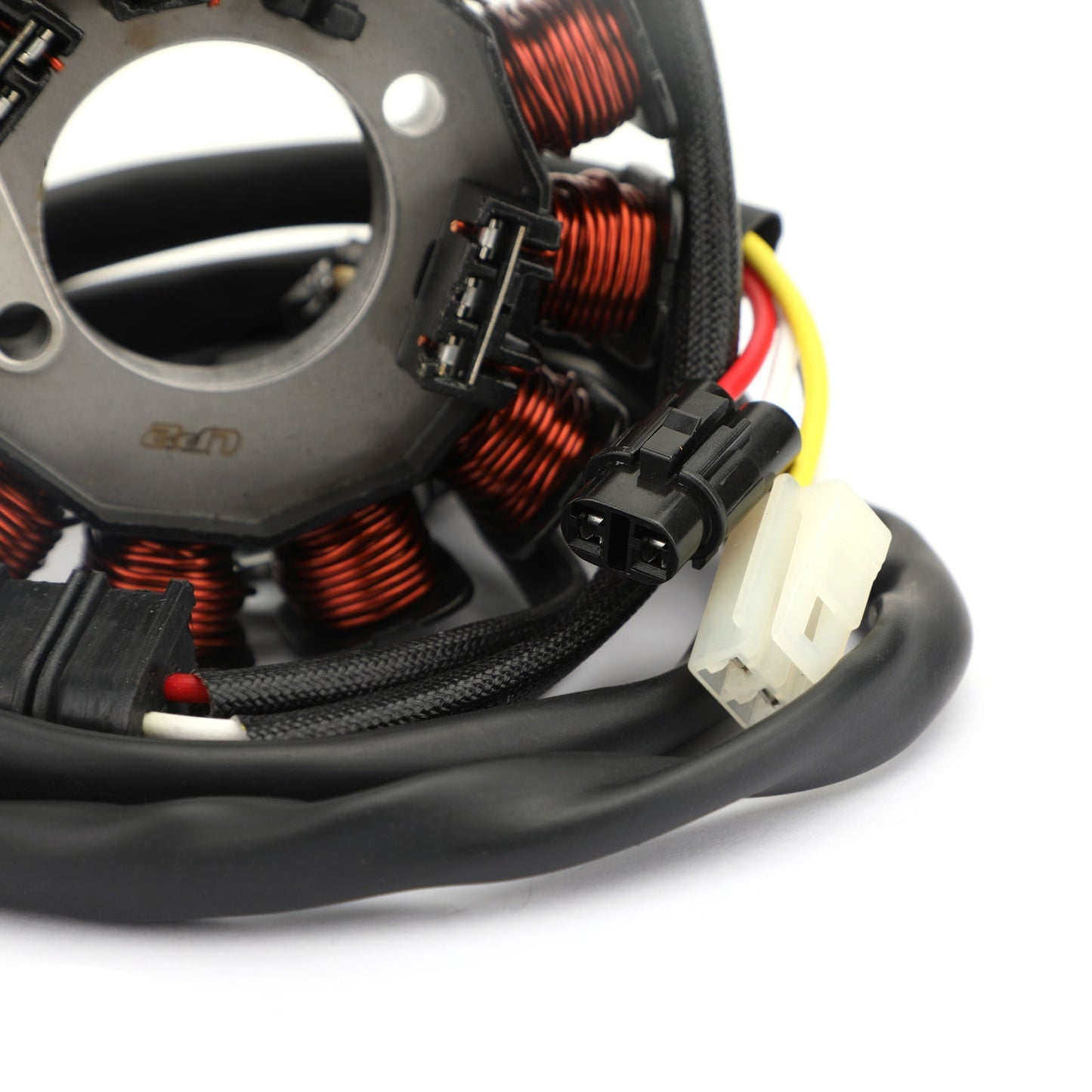

Magneto Generator Engine Stator Coil Fit For Yamaha WR450F 2003 2004 2005 2006

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Dimensions :
Interior diameter : 30.9mm / 1.21 inches
Exterior diameter : 84mm / 3.32 inches
Pole's Thickness : 22mm / 0.86 inches
Pole's Width : 17.8mm / 0.70 inches

Other specifications :
Number of wires: 4
Number of pins: 4
Number of plugs: 2
Number of fixation holes: 2
Number of poles: 12

PART NUMBER(S):
5TJ-81410-00
5TJ-81410-09
5TJ-81410-30
5TJ-81410-31

FITMENT:
Fits Yamaha WR450F 2003-2006

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
