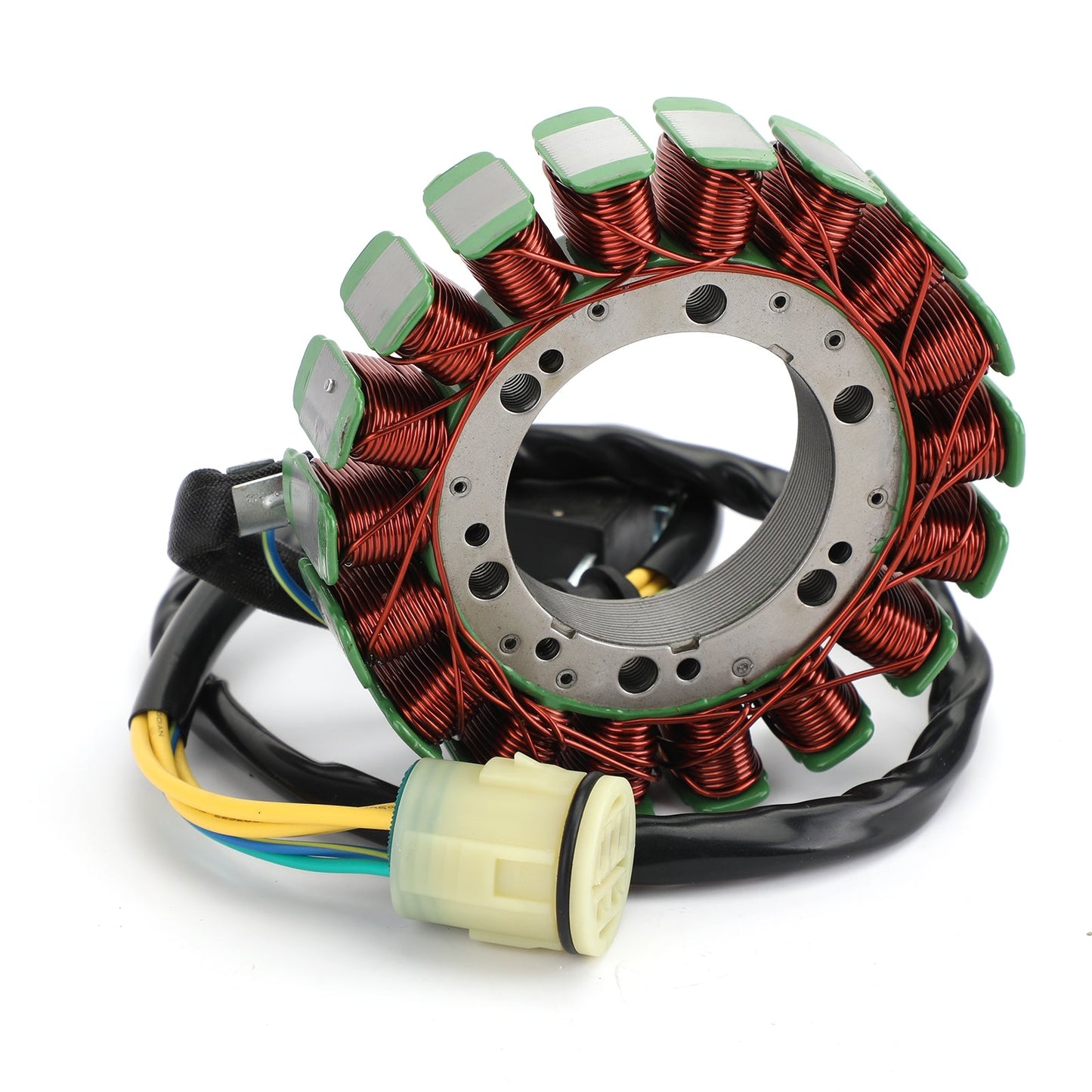

Magneto Stator Generator for Honda TRX400 Foreman 400 1995-2003 # 31120-HM7-014

In stock
SKU: M550-A382
Regular price £38.89 GBP

Magneto Generator Engine Stator Coil Fit For Honda TRX400 Foreman 400 1995-2003 31120-HM7-014

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Dimensions :
Interior diameter : 54.3mm / 2.13 inches
Exterior diameter : 115mm / 4.52 inches
Pole's Thickness : 28mm / 1.10 inches
Pole's Width : 14.8mm / 0.58 inches

Other specifications :
Number of wires: 5
Number of pins: 6
Number of plugs: 2
Number of fixation holes: 6(+3)
Number of poles: 18

REPLACEMENT PART NUMBER: 31120-HM7-014

FITMENT:
Fits Honda TRX400 Foreman 400 1995-2003

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
