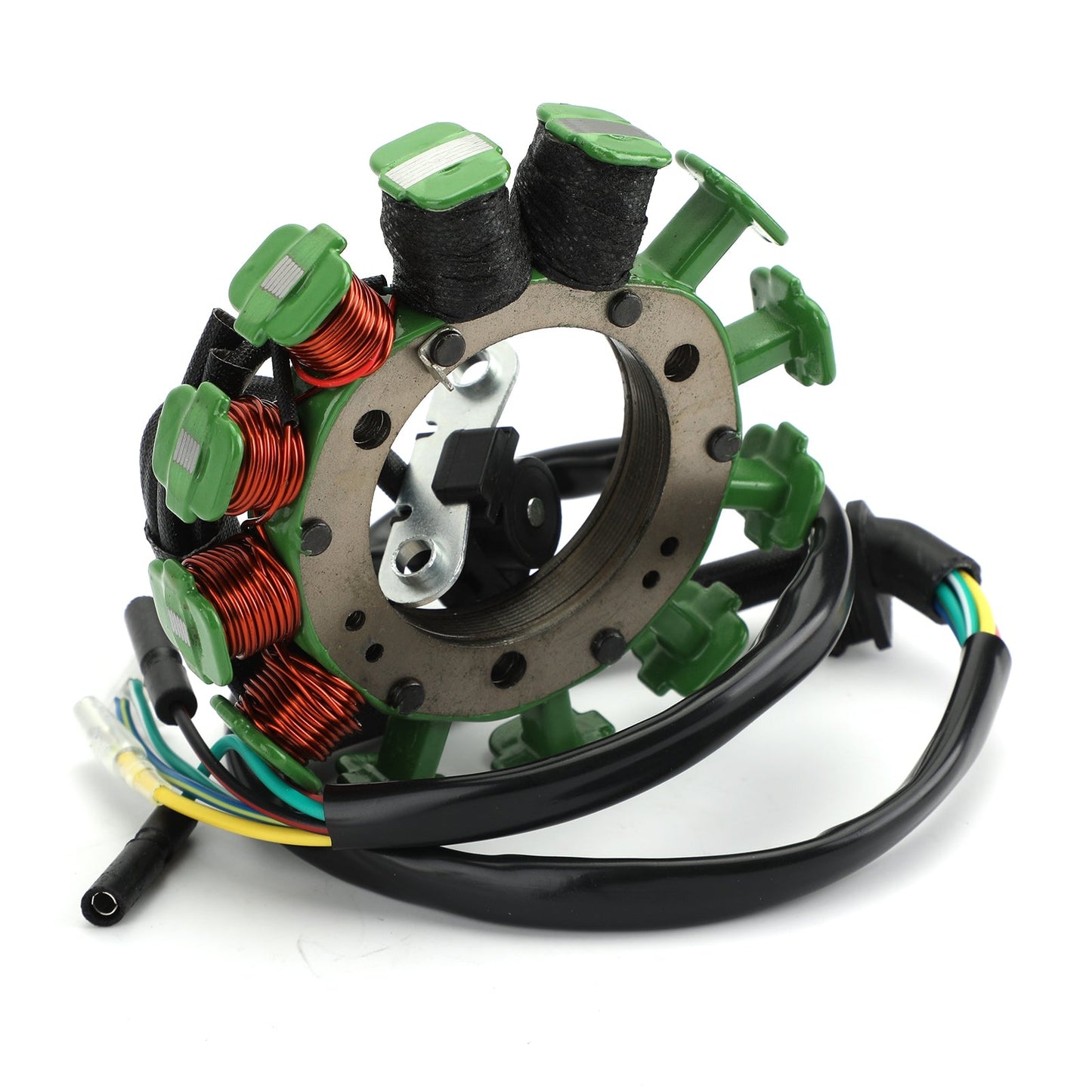

Hight Output Stator Generator for Honda XR400R 1996-2004 XR650R 2000-2007

In stock
SKU: M550-A381
Regular price £35.89 GBP

Magneto Generator Engine Stator Coil Fit For Honda XR400R 1996-2004 XR650R 2000-2007

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Dimensions :
Interior diameter : 54mm / 2.12 inches
Exterior diameter : 114.5mm / 4.50 inches
Pole's Thickness : 21.4mm / 0.84 inches
Pole's Width : 15.8mm / 0.62 inches

Other specifications :
Number of wires: 6
Number of pins: 6
Number of plugs: 5
Number of fixation holes: 3(+2)
Number of poles: 6(+6)

REPLACEMENT PART NUMBER: 31120-KCY-671, 31120-MBN-671

FITMENT:
Fits Honda XR400R 1996-2004
Fits Honda XR650R 2000-2007

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
