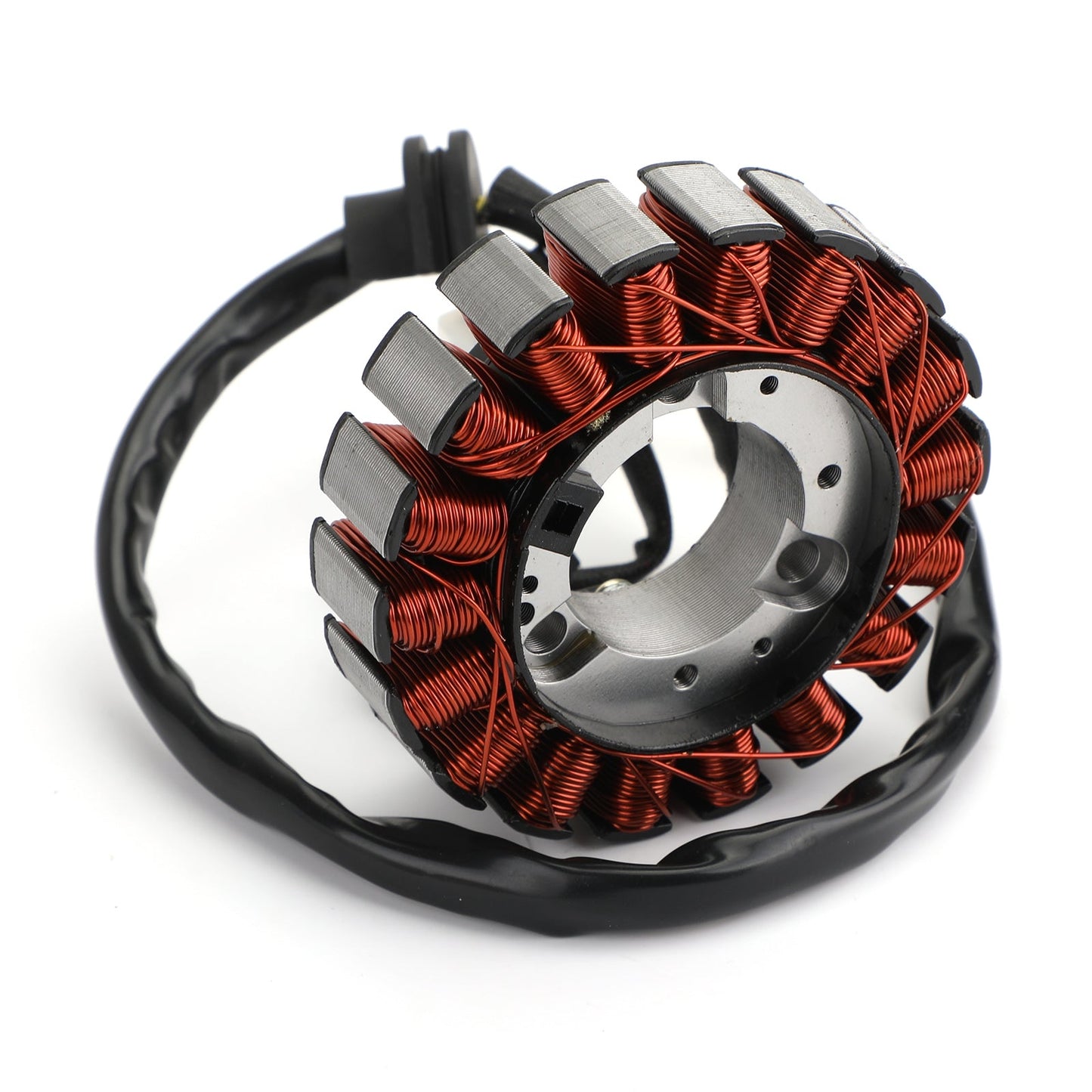

Stator Generator for Honda CBR125 R CBR125RS CBR125RT 2011-2017 31120-KPP-T01
Couldn't load pickup availability
Magneto Generator Engine Stator Coil Fit For Honda CBR125R CBR125RS CBR125R CBR125RT CBR125RW 2011-2017
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 34.8mm / 1.37 inches
Exterior diameter : 91.9mm / 3.61 inches
Pole's Thickness : 26.4mm / 1.03 inches
Pole's Width : 11mm / 0.43 inches
Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 1
Number of fixation holes: 3(+5)
Number of poles: 18
REPLACEMENT PART NUMBER: 31120-KPP-T01
FITMENT:
Fits Honda CBR125R JC50B 2011-2017
Fits Honda CBR125RS 2012-2016
Fits Honda CBR125 RT 2012-2016
Fits Honda CBR125R 2012-2015
Fits Honda CBR125RW 2011
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
