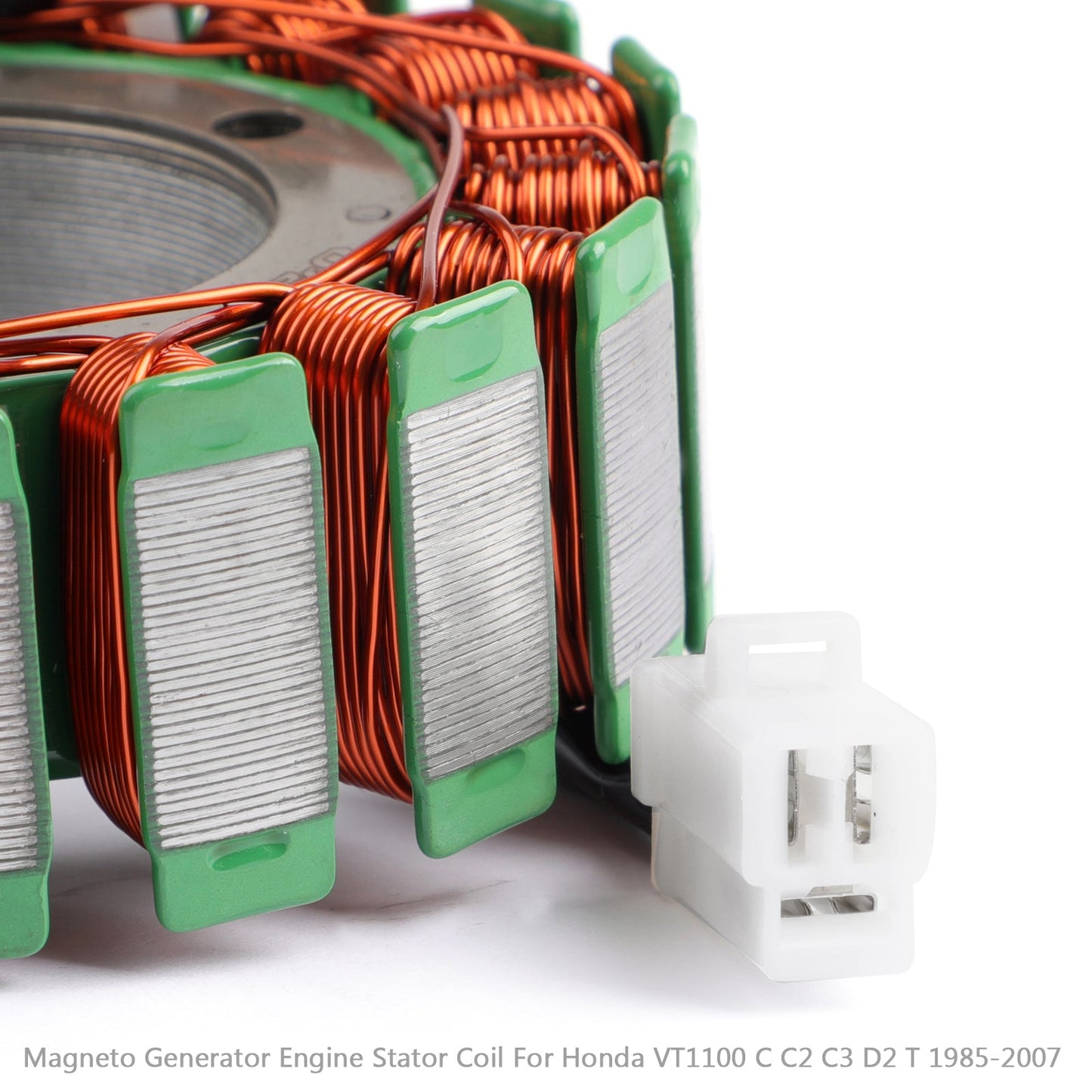

Stator Generator Fit for Honda Shadow ACE Aero Sabre Spirit 1100 VT1100 85-07

In stock
SKU: M550-A235
Regular price £47.89 GBP

Generator Stator Coil Alternator Fit for Honda VT 1100 C C2 C3 Shadow ACE Aero Sabre Spirit 85 - 07

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Dimensions :
Interior diameter : 53 mm / 2.09in
Exterior diameter : 115 mm / 4.52in
Thickness : 13 mm / 0.50in

Other Specifications :
Number of wires : 3
Number of pins : 3
Number of plugs : 1
Number of fixation holes: 3

Replacement Part Number:
31120-MAH-005
31120-MG8-005
31120-MCK-000
31120-MAA-005
31120-MM8-005
31120-MAH-000
31120-MM8-880
31120-MM8-881

Fitments:
Fit for Honda VT1100C2 Shadow A.C.E. 1995-1999
Fit for Honda VT1100C2 Shadow Sabre 2000-2007
Fit for Honda VT1100C3 Shadow Aero 1998-2002
Fit for Honda VT1100C Shadow Spirit 1997-2007
Fit for Honda VT1100D2 Shadow A.C.E. 1999
Fit for Honda VT1100T Shadow A.C.E. Tour 1998-2001
Fit for Honda VT1100C Shadow 1985-1986
Fit for Honda VT1100C Shadow 1987-1996

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Includes:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
