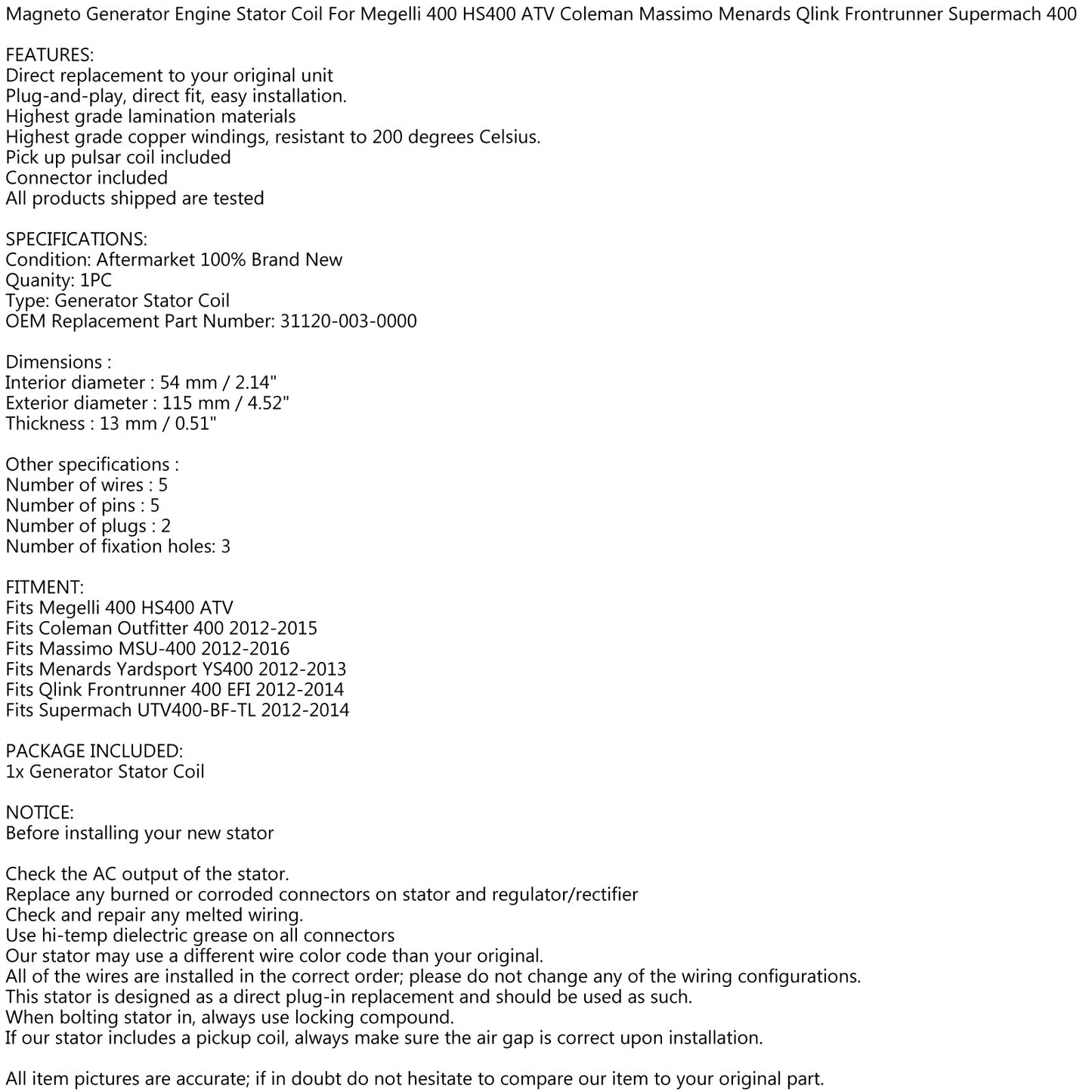

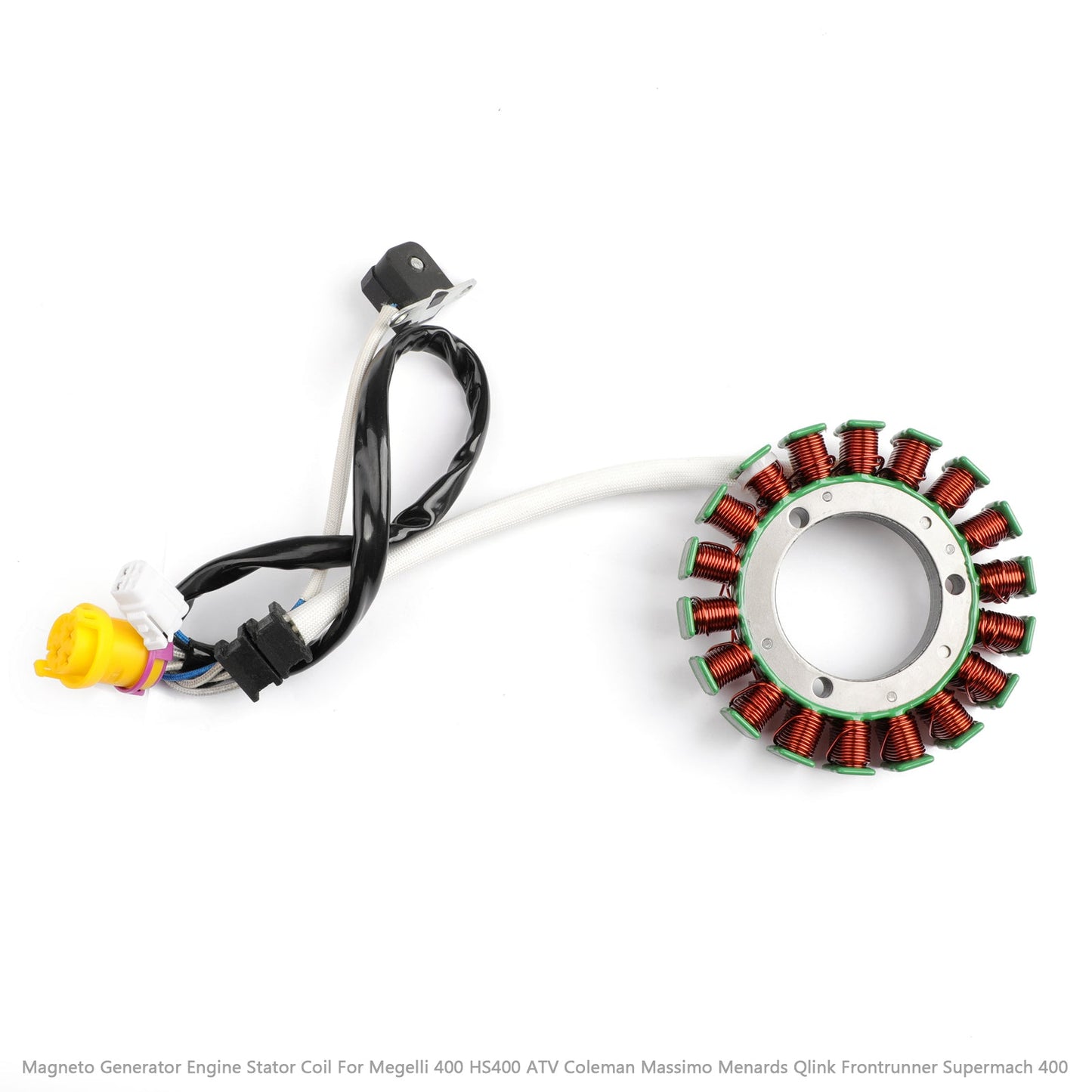

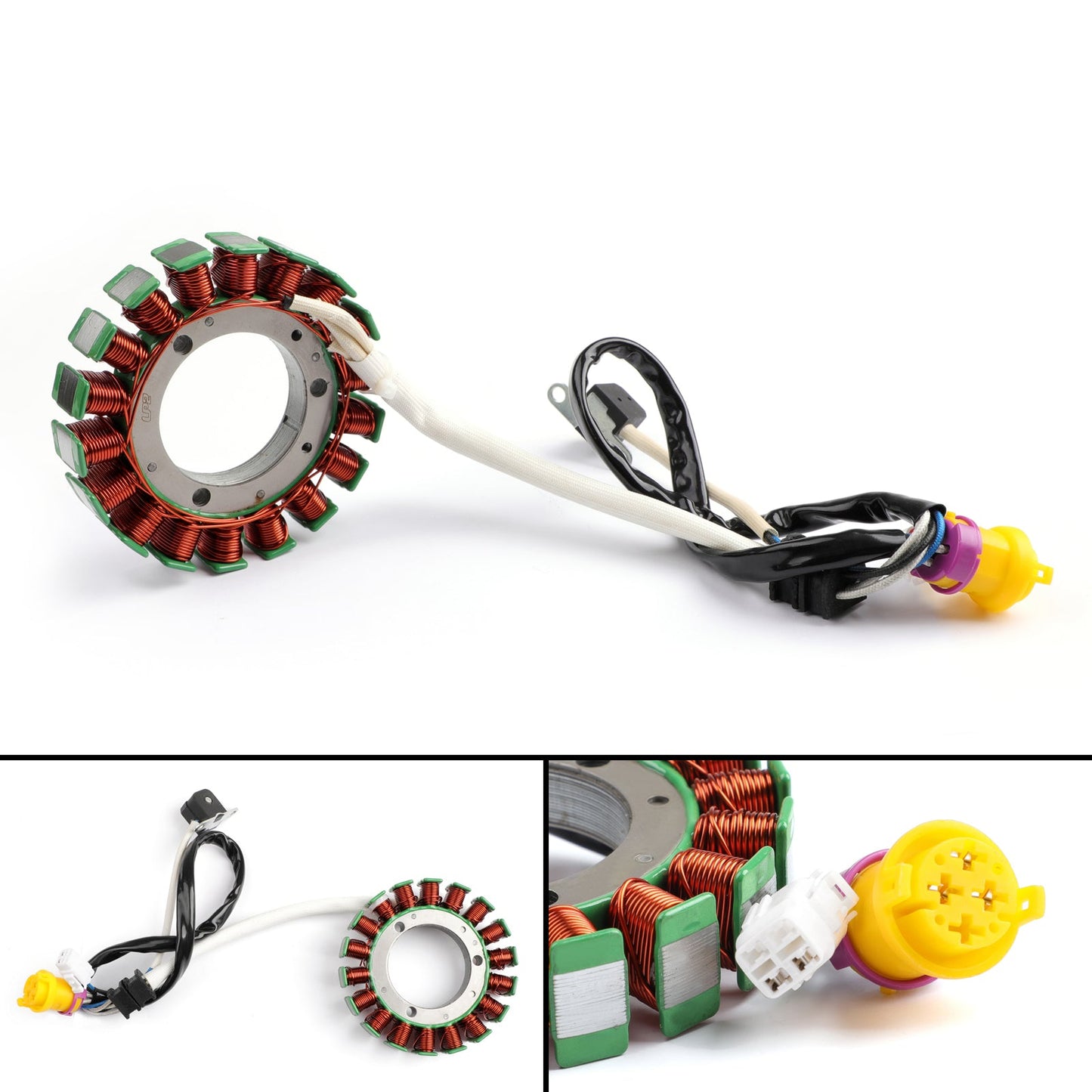

Magneto Generator Engine Stator Coil For Megelli 400 HS400 ATV Coleman Massimo Menards Qlink Frontrunner Supermach 400

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included

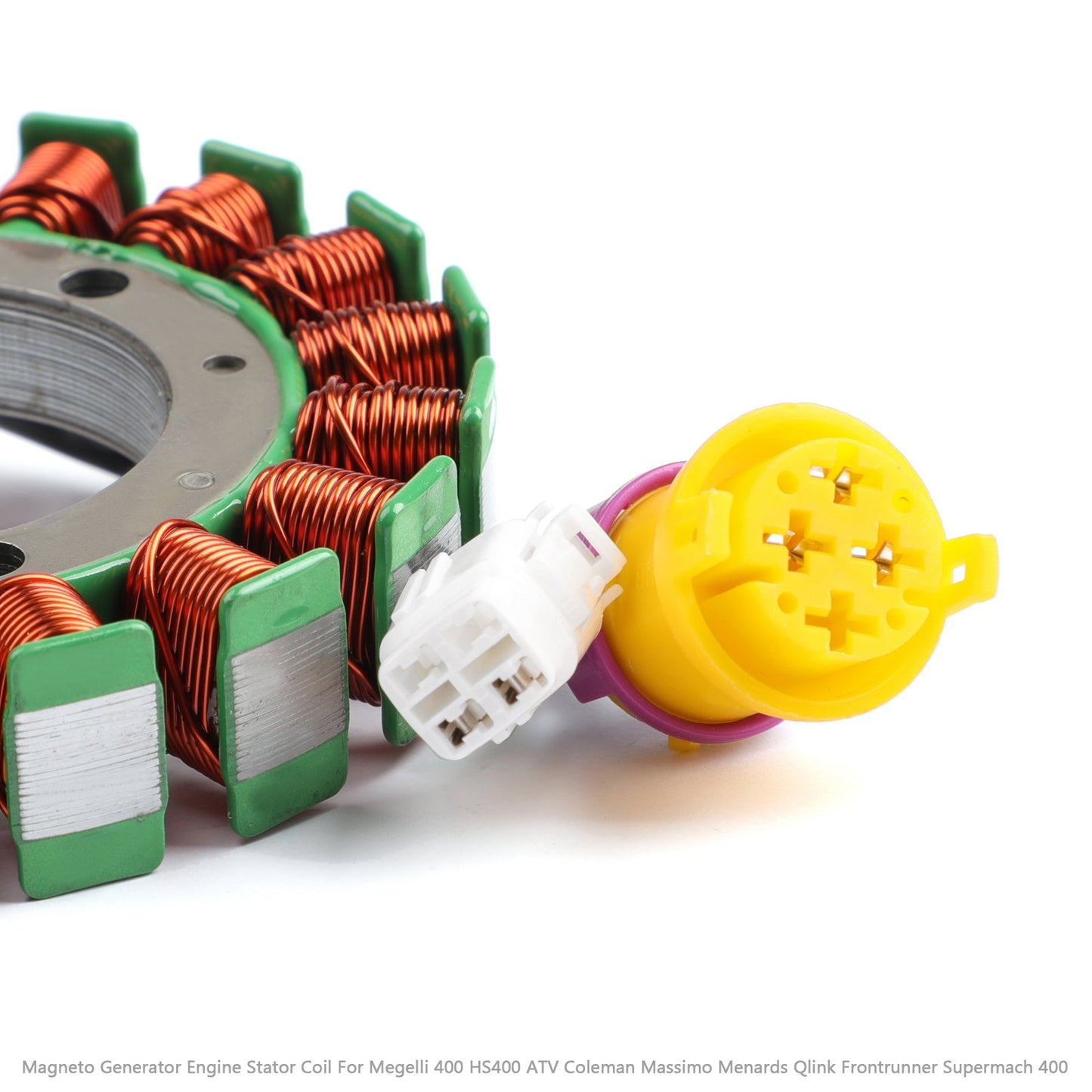

Connector included
All products shipped are tested

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
OEM Replacement Part Number: 31120-003-0000

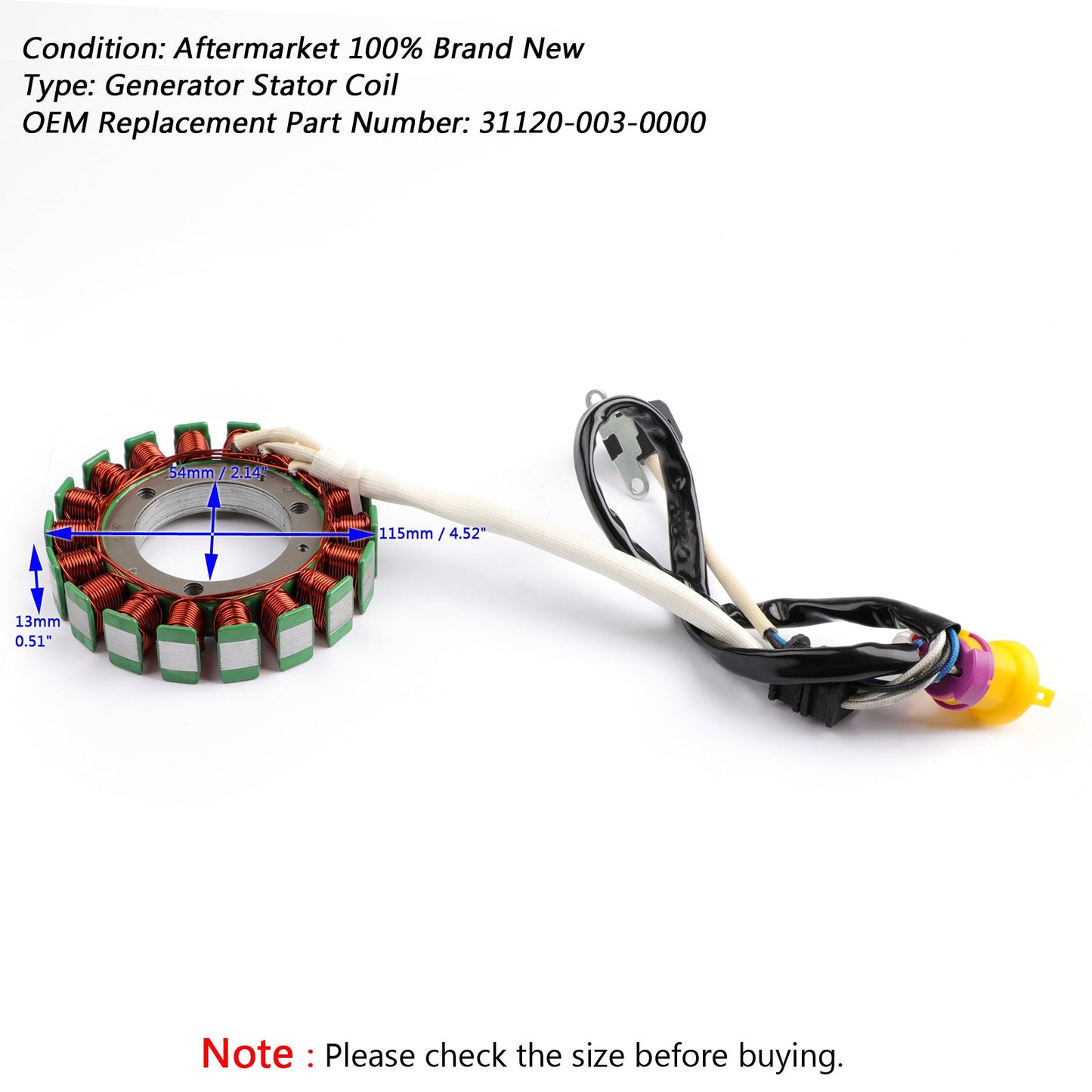

Dimensions :
Interior diameter : 54 mm / 2.14"
Exterior diameter : 115 mm / 4.52"
Thickness : 13 mm / 0.51"

Other specifications :
Number of wires : 5
Number of pins : 5
Number of plugs : 2
Number of fixation holes: 3

FITMENT:
Fits HiSUN 400 HS400 ATV
Fits Coleman Outfitter 400 2012-2015
Fits Massimo MSU-400 2012-2016
Fits Menards Yardsport YS400 2012-2013
Fits Qlink Frontrunner 400 EFI 2012-2014
Fits Supermach UTV400-BF-TL 2012-2014

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
