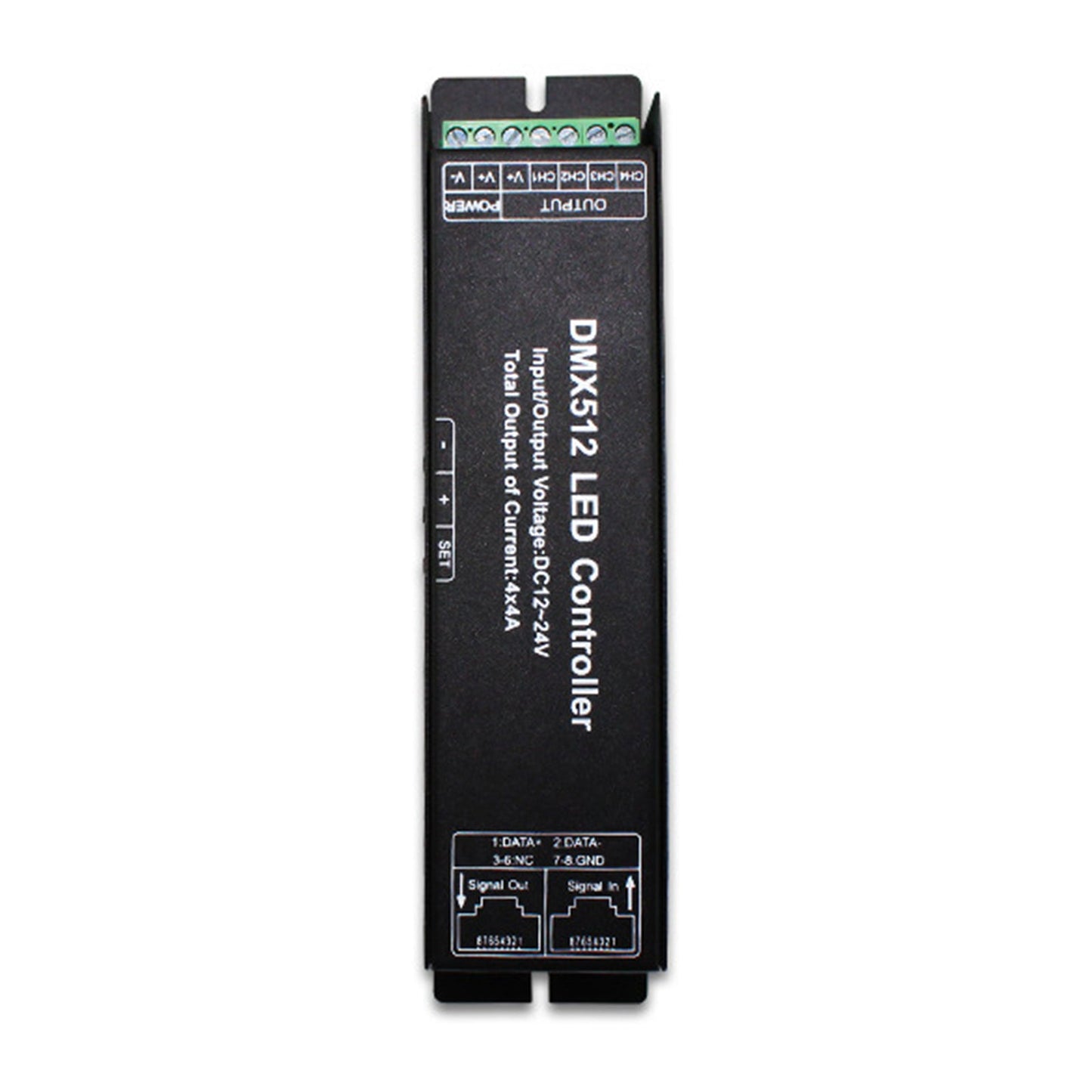

LED RGB DMX512 Decoder Controller DC12-24V 4x4A 16A 4 Channel Digital PWM Dimmer

In stock
SKU: H093-A005
Regular price $16.00 USD

LED RGB DMX512 Decoder Controller DC12-24V 4x4A 16A 4 Channel Digital PWM Dimmer

Description:
This DMX decoder uses advanced computer chip control and can convert the international DMX512 standard digital control signal received into PWM controller signal for LED driving.
The DMX controller can be controlled by the DMX console, and can increase the output power with number-linked DMX decoder to realize all kinds of change mode.
In addition, the DMX decoder can be used as a synchronous control device, control LEDs alone and can realize the synchronous effects.
This decoder adopts the digital display to show the address code, and with 3 buttons for setting, it makes it easier to use.

Details:
Type: DMX512 controller
Material:Iron
Color: Black
Working Temperature: -20°-60°
Supply Voltage: DC 12V-24V
Output: 4 channels
Static Power Consumption: <1W
Output Current: Each channel 4A
Output Power: 12V:<192W, 24V:<384W
DMX512 Standard:DMX512/1990
DMX Input/output interface:RJ45 Port
External Dimension: L177×W42×H33mm

Package includes:
1 X 4 Channel LED RGB DMX512 Decoder Controller
1 X User ManualShipping
1. Free Shipping
2. Location: Leicestershire
3. Shipping time: 3-8 buisness days via Royal Mail or FedEx.

Warranty:
Guarantee Period: 1 Years
Returns & Refunds: Customers can return the goods within 60 days of receipt and process quick refund within one day
24-Hour Support: Provide you with timely after-sale support
