Generator Stator Regulator & Gasket Fit For Honda TRX500FM Foreman 500 4X4 S 2005-2011

Features:
Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

ATTENTION:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.
This regulator is not suitable for lithium-ion batteries! The battery or other electric parts can be damaged!

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

Replacement Part Number:
Stator Assy: 31120-HP0-A01
Rectifier, regulator: 31600-HP0-A01
Gasket, generator cover: 11396-HP0-A00

Fits Make/Year/Model:
Fit for Honda ATV 2005 TRX500FE A - FOURTRAX FOREMAN 4X4 ES
Fit for Honda ATV 2005 TRX500FM A - FOURTRAX FOREMAN 4X4
Fit for Honda ATV 2005 TRX500TM A - FOURTRAX FOREMAN
Fit for Honda ATV 2006 TRX500FE A - FOURTRAX FOREMAN 4X4 ES
Fit for Honda ATV 2006 TRX500FM A - FOURTRAX FOREMAN 4X4
Fit for Honda ATV 2006 TRX500TM A - FOURTRAX FOREMAN
Fit for Honda ATV 2007 TRX500FE 2A - FOURTRAX FOREMAN 4X4 ES
Fit for Honda ATV 2007 TRX500FE A - FOREMAN 4X4 ES
Fit for Honda ATV 2007 TRX500FM 2A - FOURTRAX FOREMAN 4X4
Fit for Honda ATV 2007 TRX500FM A - FOURTRAX FOREMAN 4X4
Fit for Honda ATV 2007 TRX500FPE 2A - FOURTRAX FOREMAN 4X4 ES
Fit for Honda ATV 2007 TRX500FPE A - FOURTRAX FOREMAN 4X4 ES
Fit for Honda ATV 2008 TRX500FE 2A - FOURTRAX FOREMAN 4X4 ES
Fit for Honda ATV 2008 TRX500FE A - FOURTRAX FOREMAN 4X4 ES
Fit for Honda ATV 2008 TRX500FM 2A - FOURTRAX FOREMAN 4X4
Fit for Honda ATV 2008 TRX500FM A - FOURTRAX FOREMAN 4X4
Fit for Honda ATV 2008 TRX500FPE 2A - FOURTRAX FOREMAN 4X4 ES
Fit for Honda ATV 2008 TRX500FPE A - FOURTRAX FOREMAN 4X4 ES
Fit for Honda ATV 2008 TRX500FPM 2A - FOURTRAX FOREMAN 4X4
Fit for Honda ATV 2008 TRX500FPM A - FOURTRAX FOREMAN 4X4
Fit for Honda ATV 2009 TRX500FE 2A - FOURTRAX FOREMAN ES
Fit for Honda ATV 2009 TRX500FE A - FOURTRAX FOREMAN ES
Fit for Honda ATV 2009 TRX500FM 2A - FOURTRAX FOREMAN
Fit for Honda ATV 2009 TRX500FM A - FOURTRAX FOREMAN
Fit for Honda ATV 2009 TRX500FPE 2A - FOREMAN P/S ES
Fit for Honda ATV 2009 TRX500FPE A - FOREMAN P/S ES
Fit for Honda ATV 2009 TRX500FPM 2A - FOREMAN P/S
Fit for Honda ATV 2009 TRX500FPM A - FOREMAN P/S
Fit for Honda ATV 2011 TRX500FE 2A - FOREMAN ES
Fit for Honda ATV 2011 TRX500FE A - FOREMAN ES
Fit for Honda ATV 2011 TRX500FM 2A - FOREMAN
Fit for Honda ATV 2011 TRX500FM A - FOREMAN
Fit for Honda ATV 2011 TRX500FPE 2A - FOREMAN ES
Fit for Honda ATV 2011 TRX500FPE A - FOREMAN ES
Fit for Honda ATV 2011 TRX500FPM 2A - FOREMAN
Fit for Honda ATV 2011 TRX500FPM A- FOREMAN

Package Includes:
1 x Stator Coil
1 x Regulator Rectifier
1 x Generator Gasket

Note:
Before installing your new stator regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.

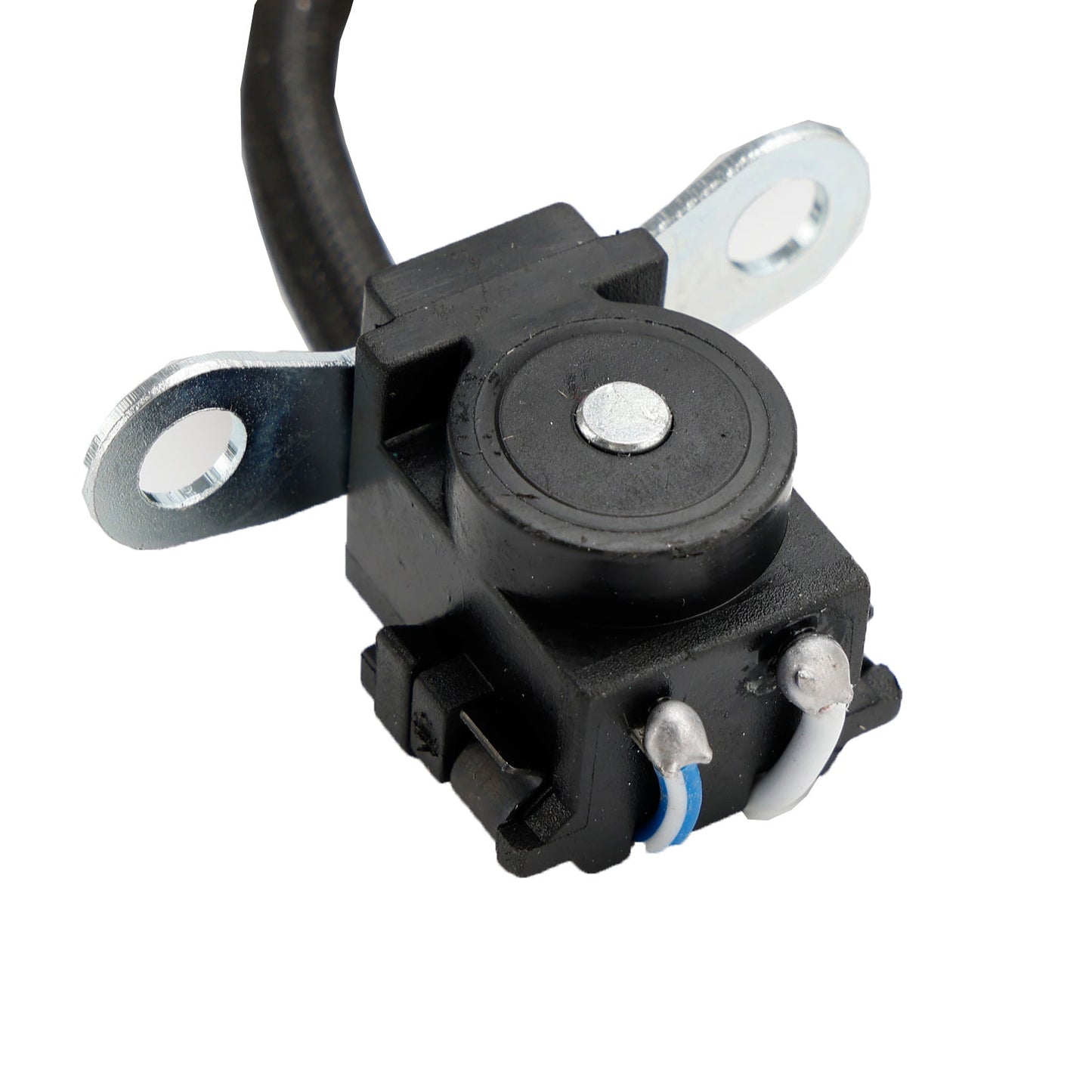

If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
