Feature:
1:＜±0.5% Regulation.
2: 220/400 VAC Programmable Input.
3: Rugged Compact Design.
4: With Ynder Frequency Protection.
5: Soft Start Voltage Ramping.
6: EMI Suppression.
7: Built-in Hing Capacity 15Amp Fuse.

Specifics:
Condition: 100% Brand New
Sensing Input Voltage: 200/400VAC, 1phase 2wire
Power Input Voltage: 180-240VAC, 1phase 2wire
Output Voltage: Max. 90VDC@240VAC input
Current: Continuous: 6A
Intermittent 12A for 10SEE
Resistance Min.10Ω Max.100Ω
Voltage Build-up: Residual volts at AVR terminal>5VAC
External Volts Adjustment: ± 7%with I KΩ 1 watt trimmer
Sotf Start Ramp Time: 3sec
Unit Power Dissipation: Max. 8 Watt
EMI Suppression: Internal Electromagnetic Interference Filtering
Thermal Drift: 0.05% per °C change in AVR ambient
Under Frequency Protection: 60Hz system presets knee point at 57Hz
50Hz system presets knee point at 47Hz
Operating Temperature:-40°C to + 65°C
Storage Temperature:-40°C to + 85°C
Relative Humidity:<95%

Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.
3.If magnetization is required when the generator set is turned on, please remove the AVR voltage regulator and then magnetize it! In order to
prevent the AVR board from blowing up the tube and burning the board due to improper super-operation during the magnetization process.

Package Included:

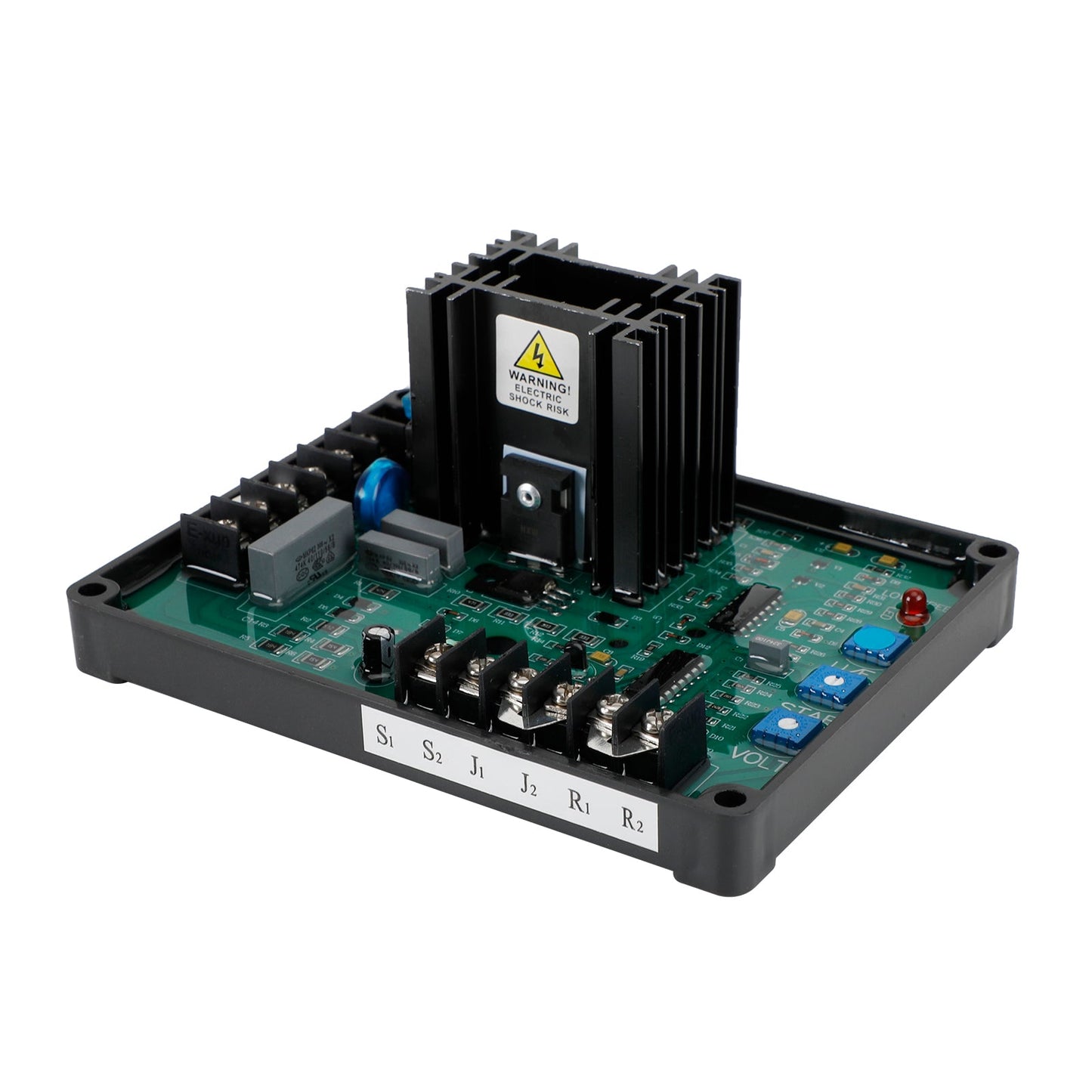

1 X GAVR-15A
1 X English Product Instructions
