GA-800 Active Loop Antenna Shortwave Antenna 10KHz-159MHz HF Portable for Radios

In stock
SKU: E002-B914
Regular price £115.89 GBP

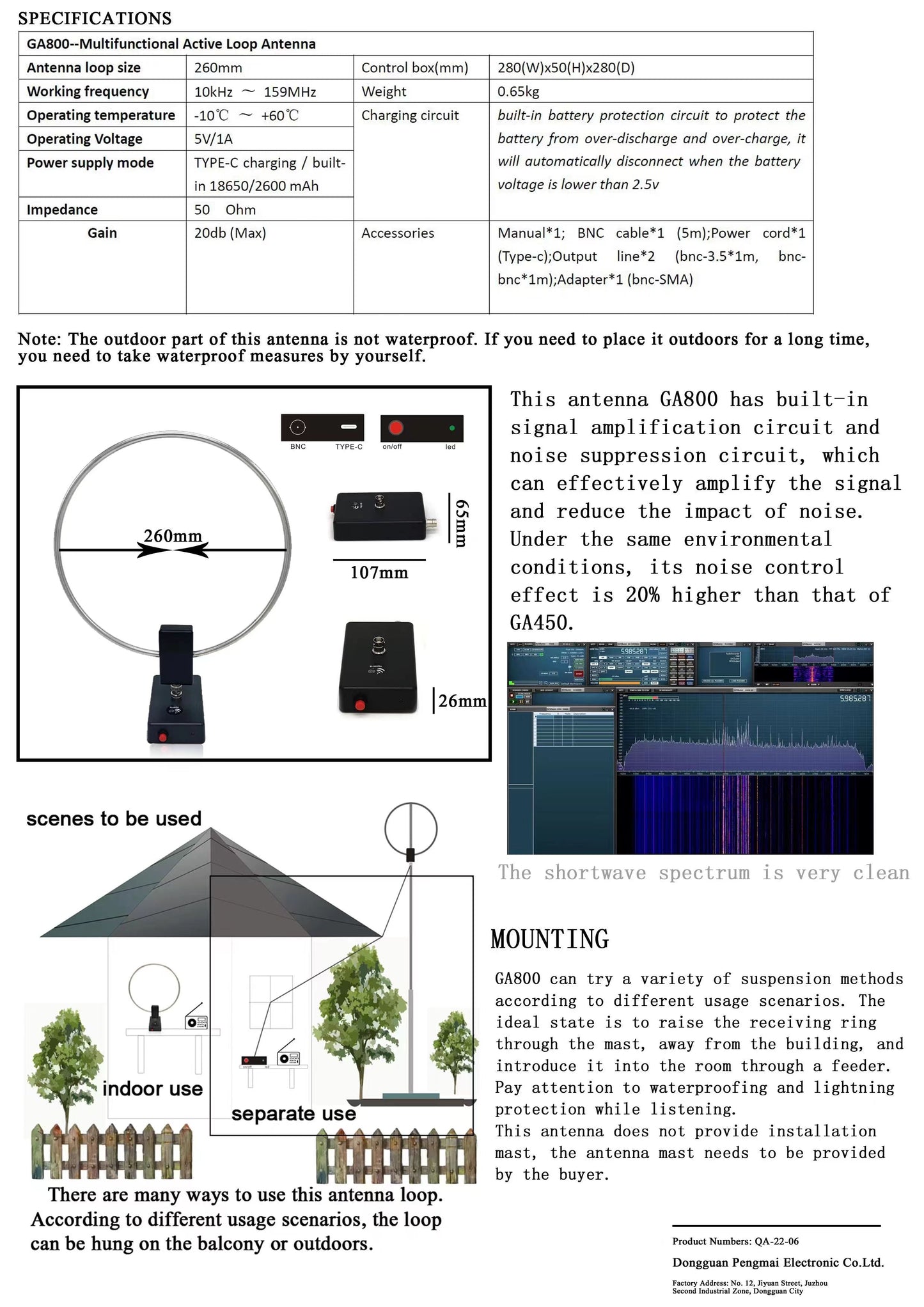

GA-800 Active Loop Antenna Shortwave Antenna 10KHz-159MHz HF Antenna with Portable Design for Radios

The outdoor part of this antenna is not waterproof.If you need to place it outdoors for along time, you need to take waterproof measures by yourself.

Material: high-grade plastic shell + stainless steel ring
Built-in 18650 lithium battery: 2600 mAh
Antenna loop size: 260mm/10.2" (inner diameter)
Control box: 107 x 65 x 26mm/4.2 x 2.6 x 1"
Working frequency: 10KHz-159MHz
Operating temperature: -10a?? to +60a??
Operating Voltage: 5V/1A
Power supply mode: TYPE-C charging/built-in 18650/2600mAh
Impedance: 50Ohm
Gain: 20db (Max)
Charging circuit: built-in battery protection circuit to protect the battery from over-discharging and over-charging. It will automatically disconnect when the battery voltage is lower than 2.5v

Package Included:
1 x Antenna with control box
1 x Manual
1 x BNC cable (5m/16.4ft)
1 x Power cord (Type-c)
2 x Output cables (BNC-3.5*1m/3.3ft; BNC-BNC*1m/3.3ft)
1 x Adapter (BNC-SMA)
