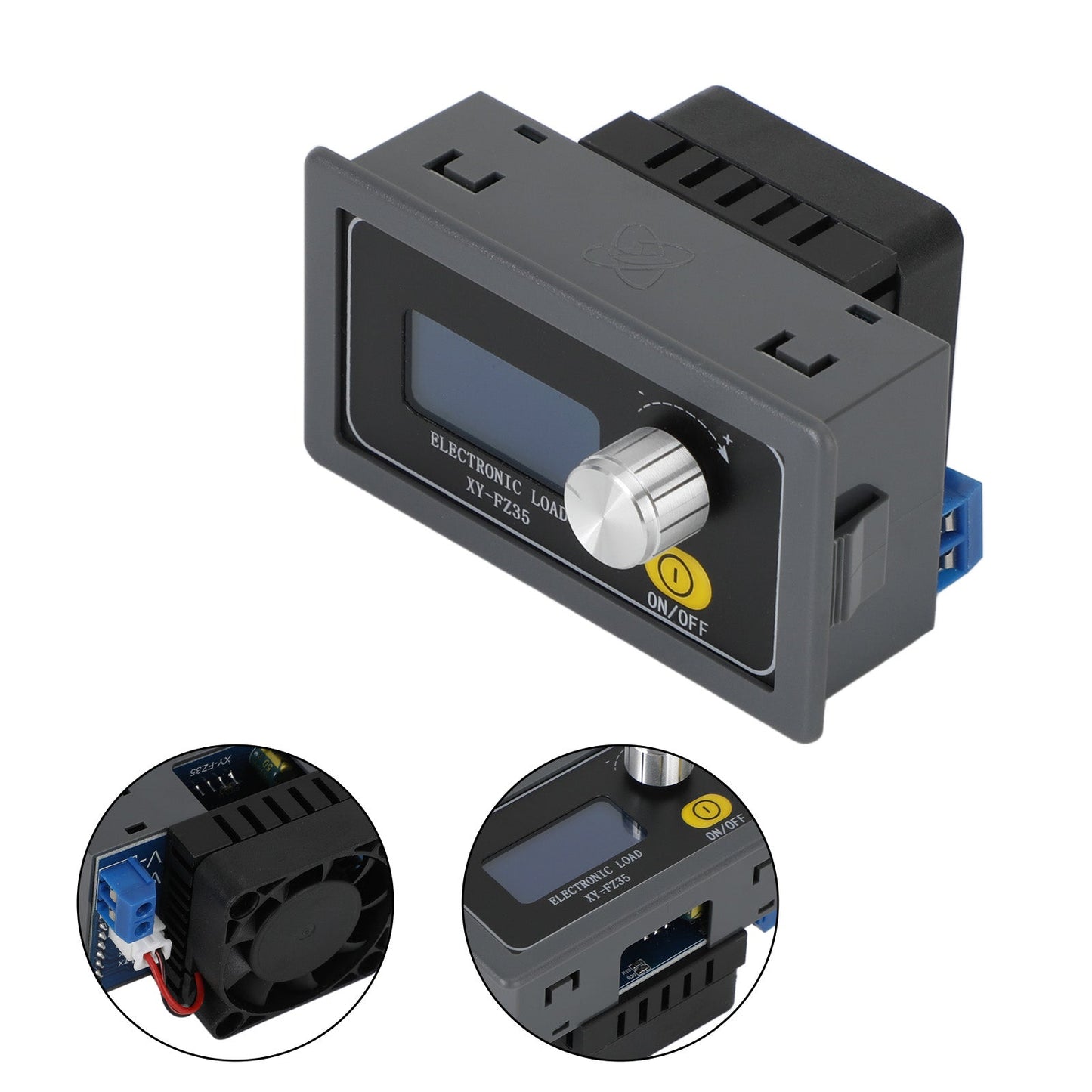

FZ35 Constant Current Electronic Load Module Battery Discharge Capacity Tester

In stock
SKU: I018-A043
Regular price £16.89 GBP

FZ35 Constant Current Electronic Load Module Battery Discharge Capacity Tester

Feature:
1: The current a voltage V power W capacity ah and discharge time can be displayed.
2: Have a sound protection mechanism.
3: Automatic statistics of discharge capacity and discharge time.
4: Set maximum discharge Capacity (OAH) and maximum discharge time (OHP); (Realization of unattended aging experiments).
5: Intelligent temperature-controlled fan, when the power is greater than 10W or the temperature is greater than 40 ℃ fan start automatically.
6: The use of rotary coding potentiometer, can accurately adjust the current, accurate to 0.01A, the current can be locked to prevent misoperation.
7: Data group function: You can choose whether to add up the capacity value and running time of the previous stage.
8: Has a powerful serial communication function.

Specifics:
Condition: 100% Brand New
Item model number: FZ35
Rated power supply voltage: DC5.0-30.0V (with anti-reverse connection protection, reverse connection will not burn out)
Rated load voltage: DC1.5-25.0V (with anti-reverse connection protection, reverse connection will not burn out)
Rated load current: 0.00-5.00A
Constant current accuracy: ±(1%+3 words)
Discharge power: 35W
Voltage accuracy: ±(0.5%+3 characters)
Overvoltage protection (OVP): Default 25.2V (can be set by yourself)
Overcurrent Protection (OCP): Default 5.10A (can be set by yourself)
Over power protection (OPP): Default 35.5W (can be set by yourself)
Under-voltage protection (LVP): Default 1.5V (can be set by yourself)
Over temperature protection (OTP): The default is about 80°C (cannot be set)
Weight: 87g
Product size: 79*43*55mm/3.1*1.7*2.2in
Fan speed: hydraulic bearing intelligent temperature control fan, speed 8000±10%RPM
