Digital Car Paint Coating Thickness Tester Depth Gauge Meter Measuring 0-1800um
Couldn't load pickup availability
Digital Car Paint Coating Thickness Tester Depth Gauge Meter Measuring 0-1800um
Feature:
1: Measuring the thickness of non-magnetic coating on the magnetic metal substrate.
2: Measuring the thickness of the non-metallic coating on the non-magnetic metal substrate.
3: Automatically identifying the non-magnetic metal substrate and magnetic metal substrate.
4: Single measurement, continuous measurement and differential measurement available.
5: Zero-point calibration, Offset Calibration and basic calibration available.
6: Metric and imperial units of measurement optional.
7: LCD backlight.flip the screen display.
8: Automatic shutdown.
Specifics:
Condition: 100% Brand New
Measurement ranges: 0~1800um/70.8mil/1.8mm
Resolution: (0.1um(<100um),1um(≥100um)/0.1mil/0.001mm
Measuring error: ≤150um,±5um; >150um,±(3%H+1um)
Minimum diameter of magnetic substrate: 12mm
Minimum thickness of magnetic substrate: 0.5mm
Minimum curvature radius of conve x magnetic substrate: 2mm
Minimum curvature radius of conca ve magnetic substrate: 11mm
Minimum diameter of non-magnetic substrate: 50mm
Minimum thickness of non-magnetic substrate: 0.5mm
Operating temperatur range:-20~40C(It is recommended to calibrate it again when use in different environments,especially for large temperature difference)
Operating humidity: 10~95%RH
Power supply: 2*1.5V AAA batteries (Included)
Overall dimensions: 62*27*121.5mm/2.4*1.1*4.8in
Weight: 105.03g
Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

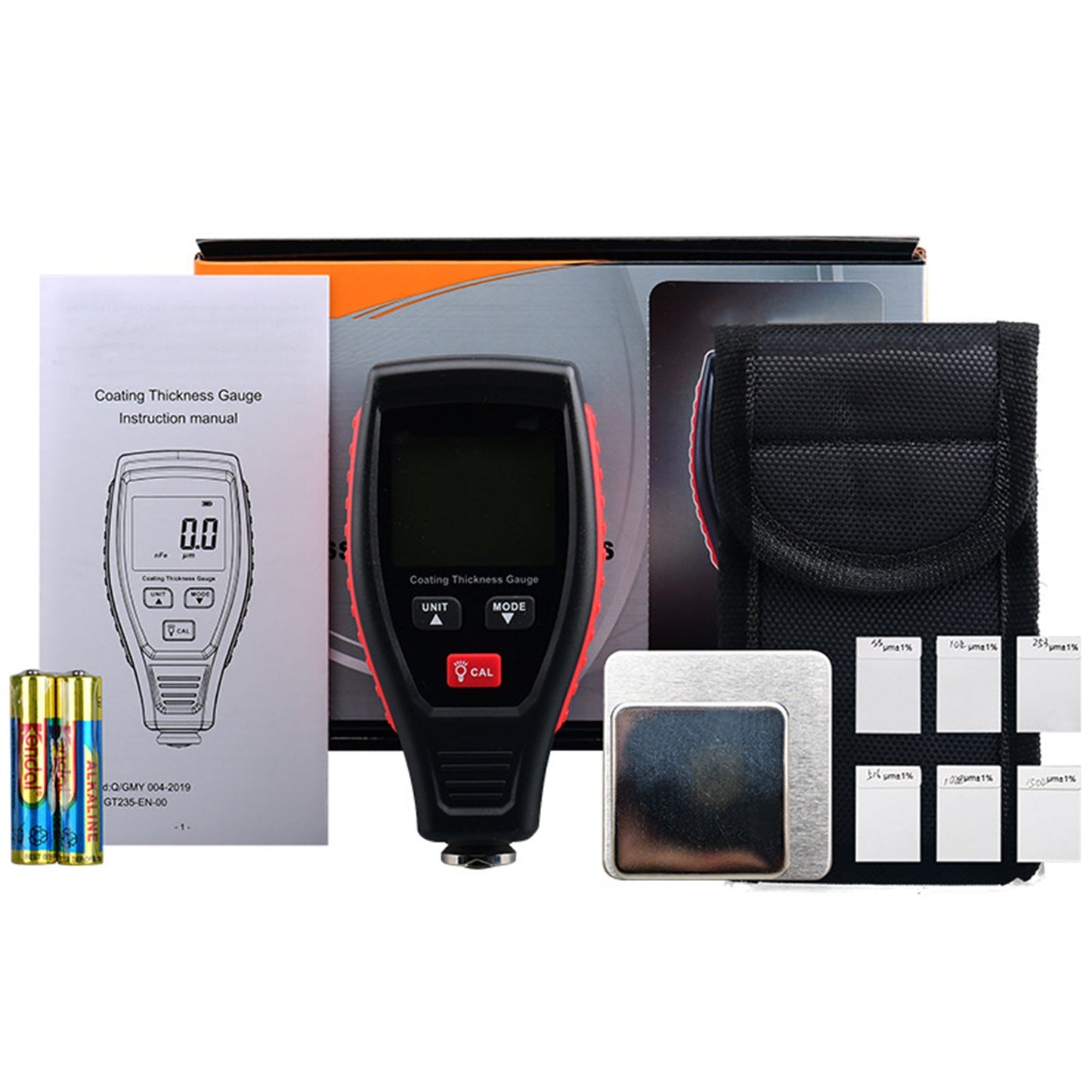

Package Included:
1 X Main meter
1 X User manual
6 X Standard film thick plate
1 X Iron substrate
1 X Carrying Bag
2 X 1.5V AAA batteriesShipping
1. Free Shipping
2. Location: Leicestershire
3. Shipping time: 3-8 buisness days via Royal Mail or FedEx.
Warranty:
Guarantee Period: 1 Years
Returns & Refunds: Customers can return the goods within 60 days of receipt and process quick refund within one day
24-Hour Support: Provide you with timely after-sale support
