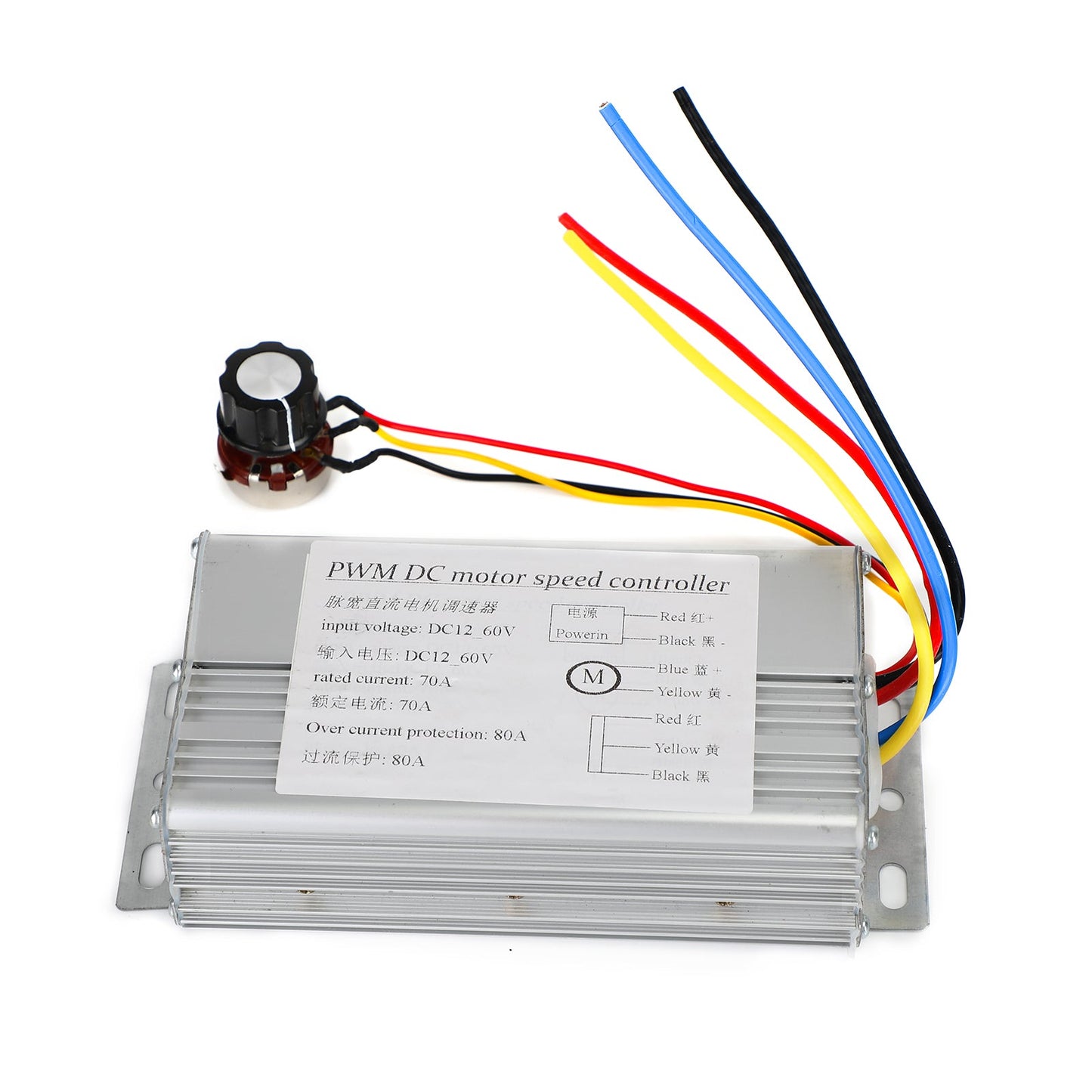

DC 12V 24V 36V 48V 70A 4000W DC Motor PWM Speed Control Brush Motor Controller

In stock
SKU: I029-A024
Regular price £30.89 GBP

DC 12V 24V 36V 48V 70A 4000W DC Motor PWM Speed Control Brush Motor Controller

Feature:
1:DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).
2:Suitable for the DC motor (or DC load) within 70A.
3:Adjustable speed range is from 0%-100%.
4:Potentiometer with adjust speed swtich function,and button swtich function.
5:The item with metal shell and connective label,very easy to install and use.

Specifics:
Condition: 100% Brand New
Input voltage: DC10-60V
Output voltage: Linearity Under Load
Output Current: 0-70A
Continuous Power: 4000W
Speed Control Type: Adjust Current
Speed Control Mode: Potentiometer(Linear)
SPeed Adjust Range: 0-100%
Over-Current Protection: 80A
Knob Size: 100K(with switch)
Module Size: 150 x 85 x 45mm/5.91 x 3.34 x 1.77inches(L*W*H)
Potentiometer Install Hole Size: 10mm
Net Weight: 500g

Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Do Not Reverse Postive And Negative Power Loads.This Will Damage The Controller.

Package Included:
1x Speed Controller
