Big Bore Cylinder Piston Gasket Kit 80mm For Honda Sportrax TRX300EX 93-08 330cc

In stock
SKU: M587-A025
Regular price £124.99 GBP

330cc Big Bore Cylinder Piston Gasket Top End Kit - 80mm Fit for Honda Spotrax TRX300EX 1993-2008

Features:
Kit includes piston, rings, pin, clips, & top end gasket kit (you get exactly what is pictured).
Cast piston has super-high silicone content for additional strength.
Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
Piston dome is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
80mm x 65.50mm Bore and Stroke.
Piston is 80mm.
11:1 Compression ratio.
All of the components within this kit are bolt-on ready for a hassle free installation.

Specifics:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Actual Displacement: 330 cc
Bore size: Big bore 80 mm

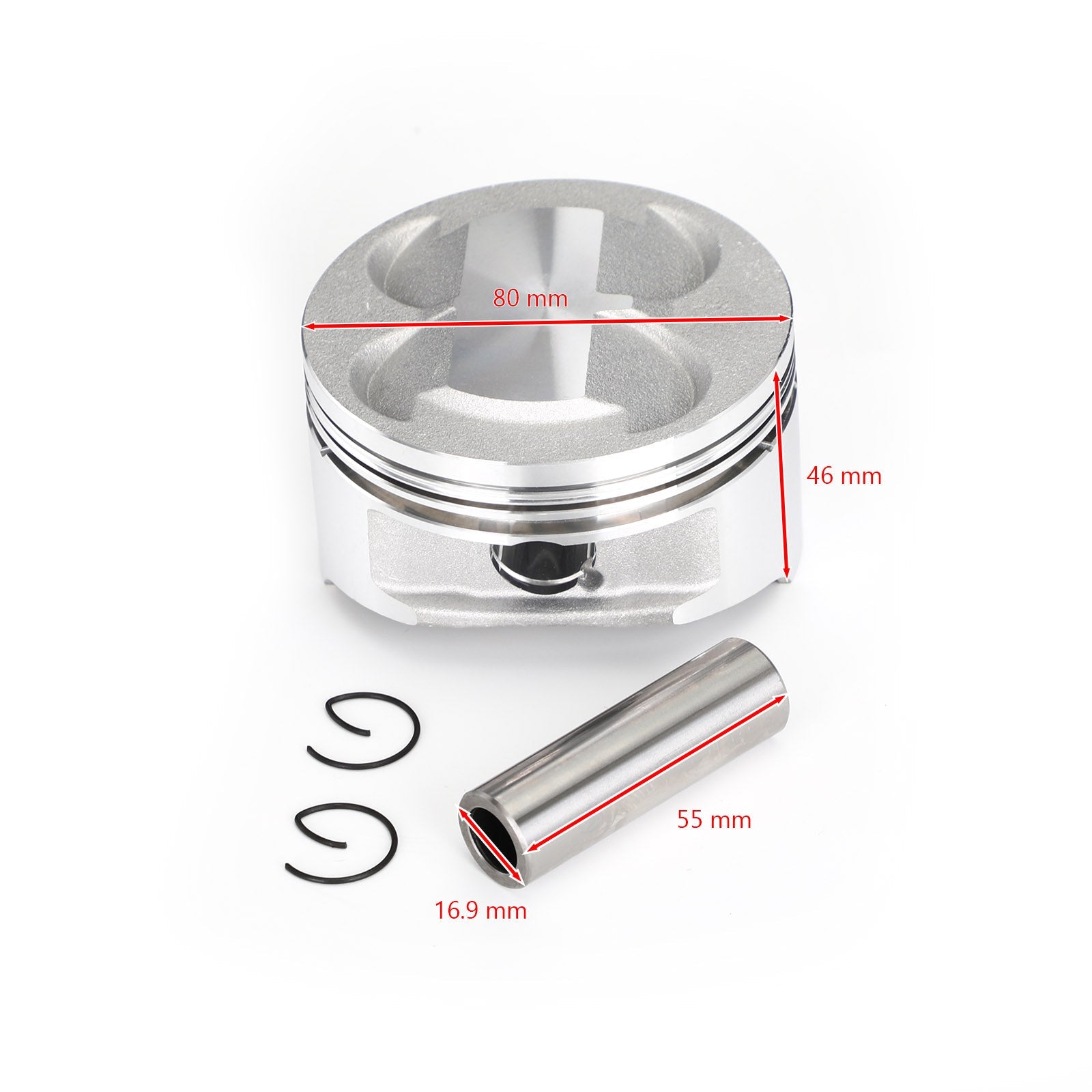

Piston diameter: 80 mm
Piston height: 46 mm
Piston pin diameter: 16.9 mm
Piston pin height: 55 mm
Stroke: 65.50 mm

Replaces Part Number:
Cylinder: 12100-HM3-L00, 12100-HM3-670
Piston: 13101-HM3-670
Piston Pin: 13111-HC0-000
Piston Ring Set: 13011-HM3-671
Head Gasket: 12251-HC0-013, 12251-HC0-003
Base Gasket: 12191-HM3-670, 12191-HC0-000, 12191-HC0-306, 12191-HC0-680
Chain Tensioner Gasket: 12194-HC5-740, 12194-HA0-000, 12194-HA0-306
2x Circlips: 94601-17000

Fitment:
Fit for Honda Sportrax TRX300EX 2x4 1993-2008

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

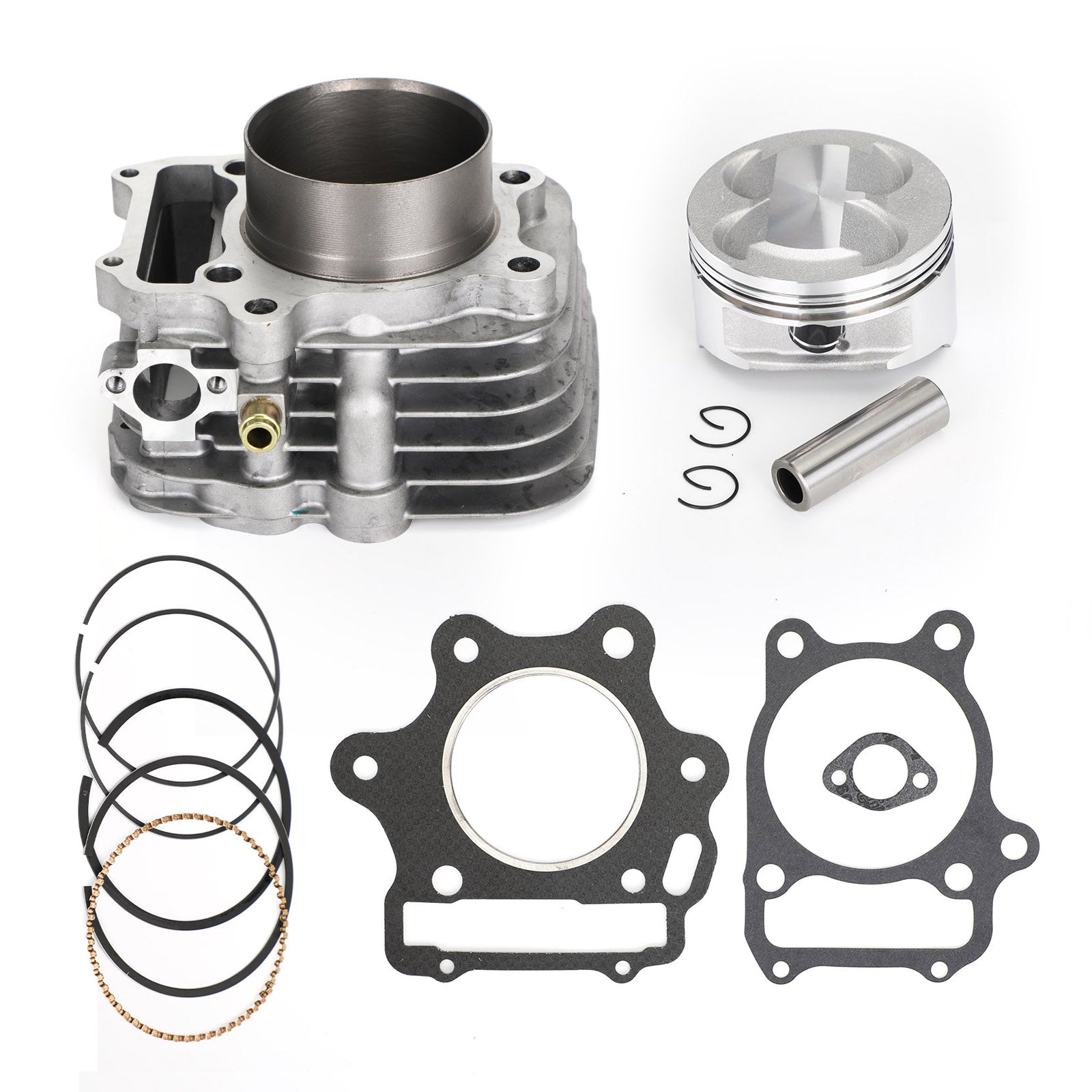

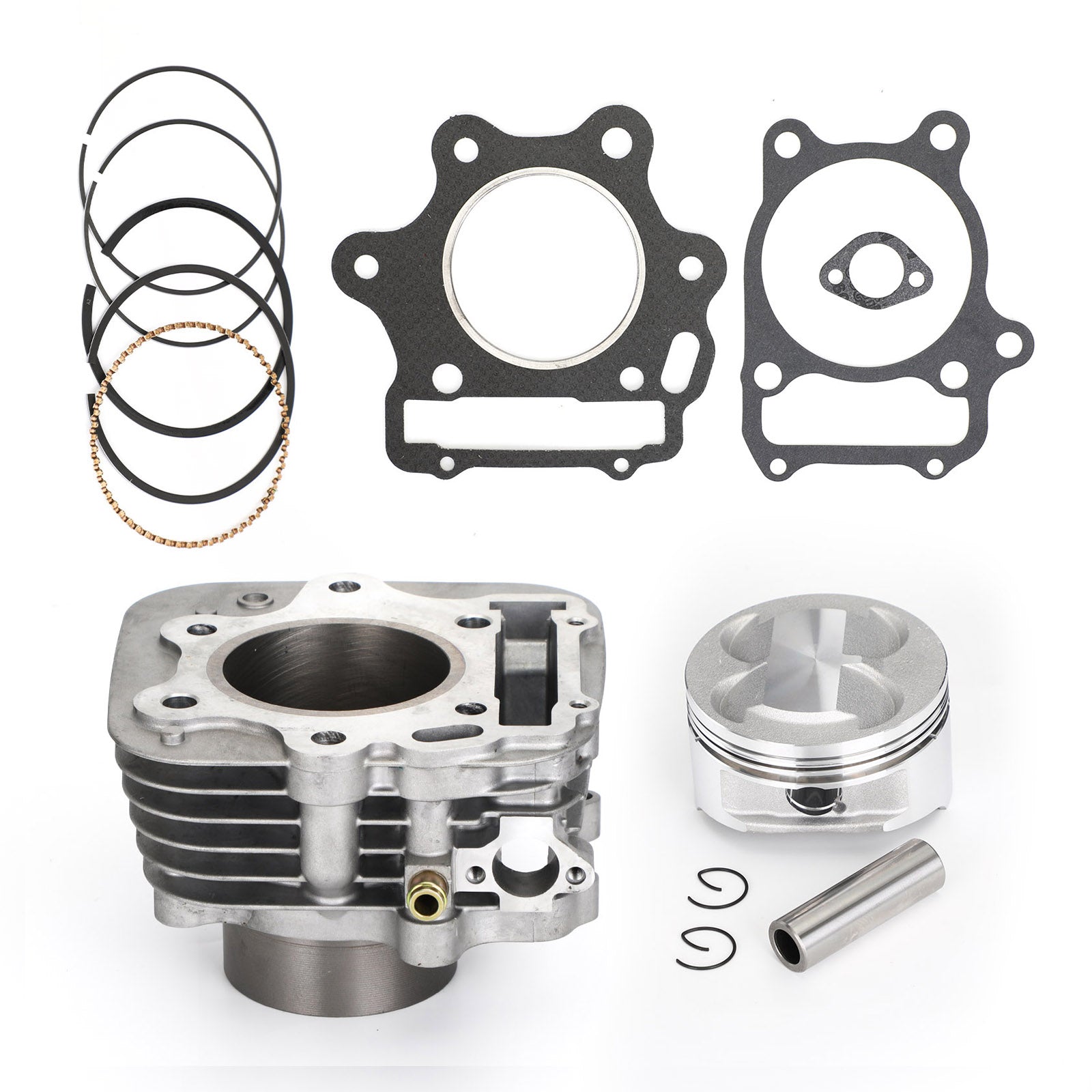

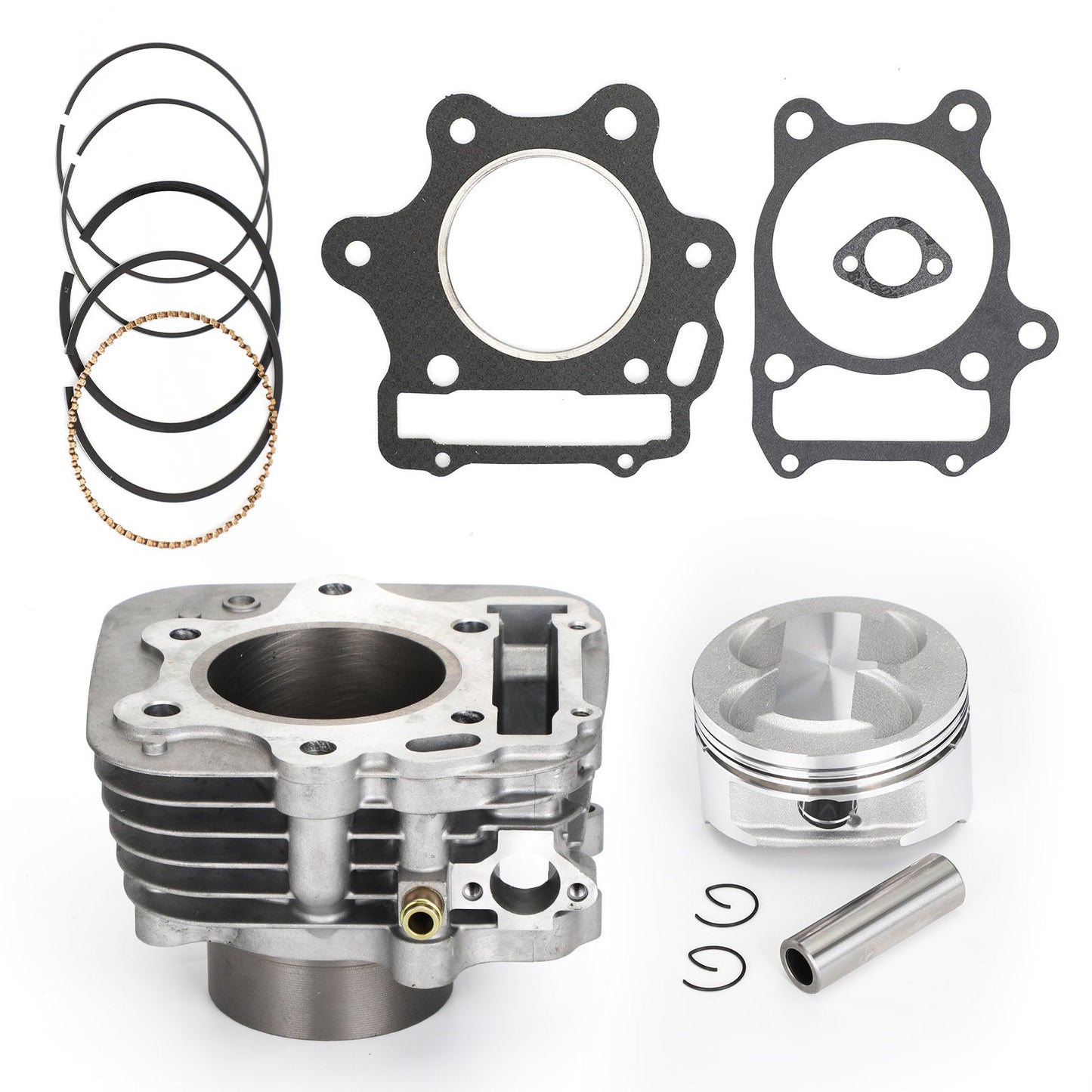

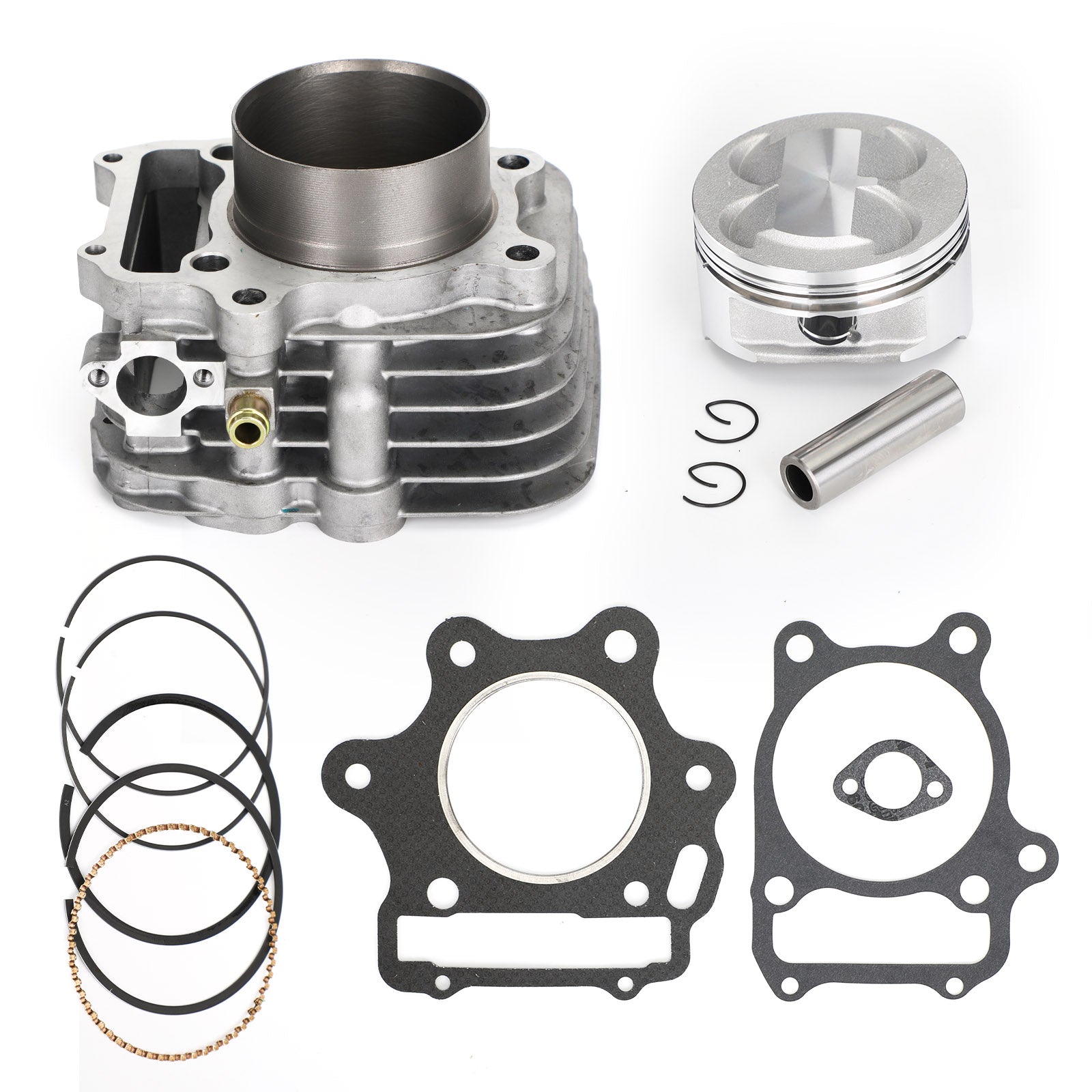

Package Includes:

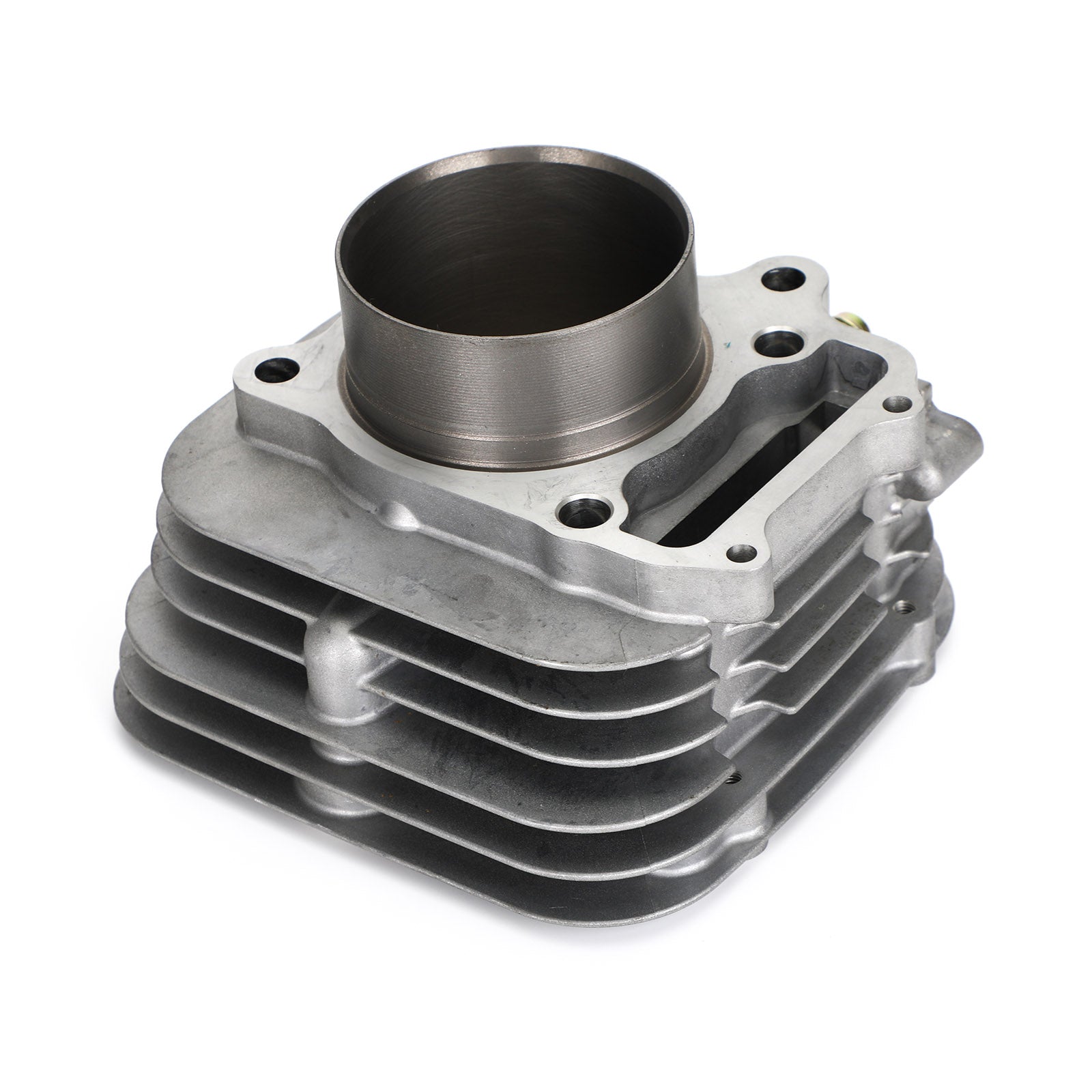

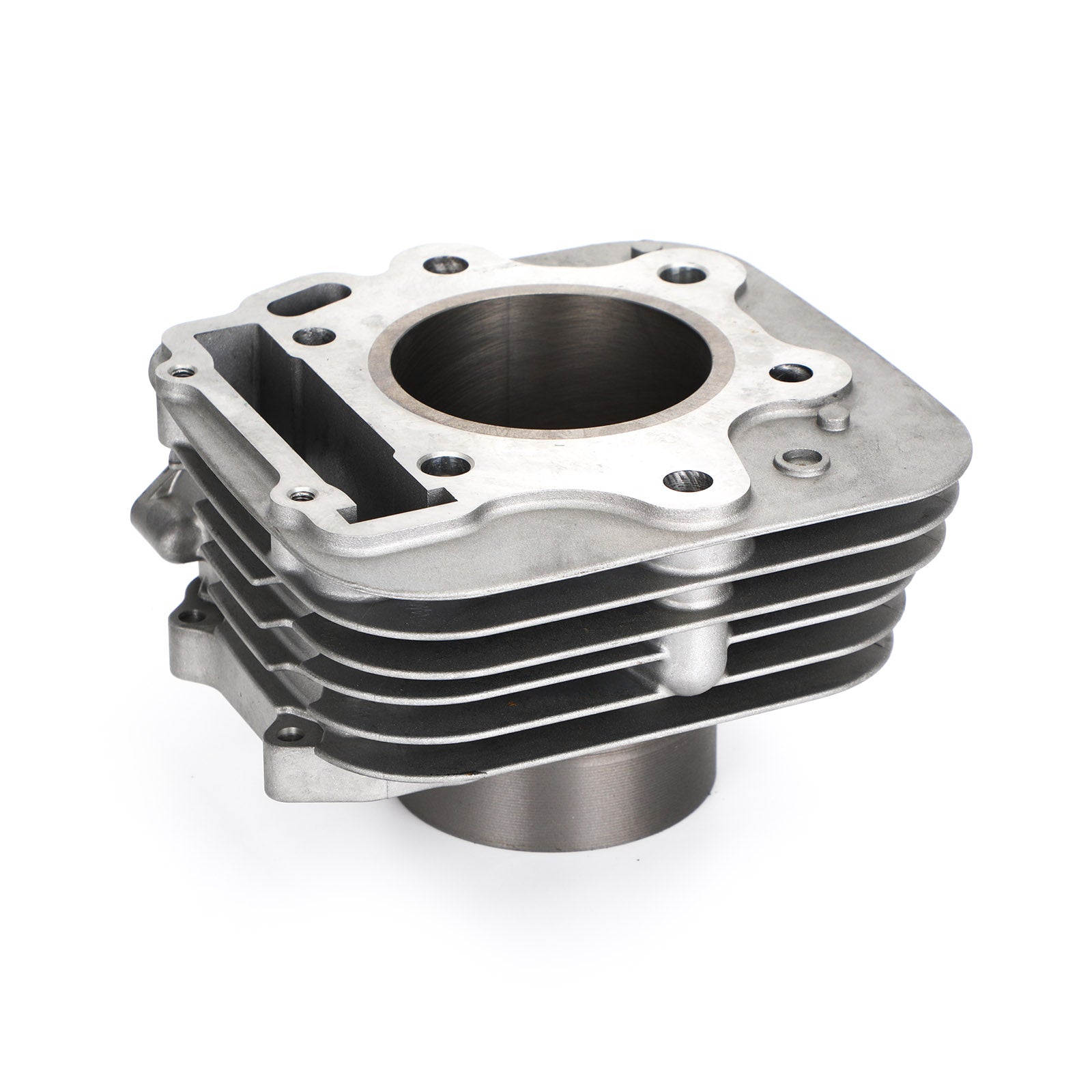

1x Cylinder

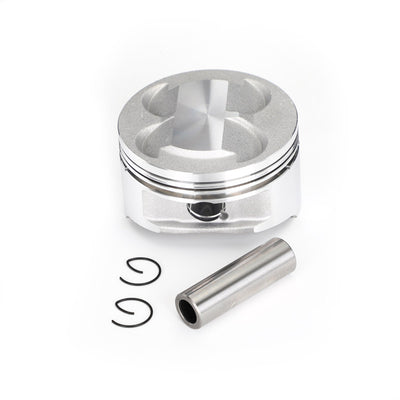

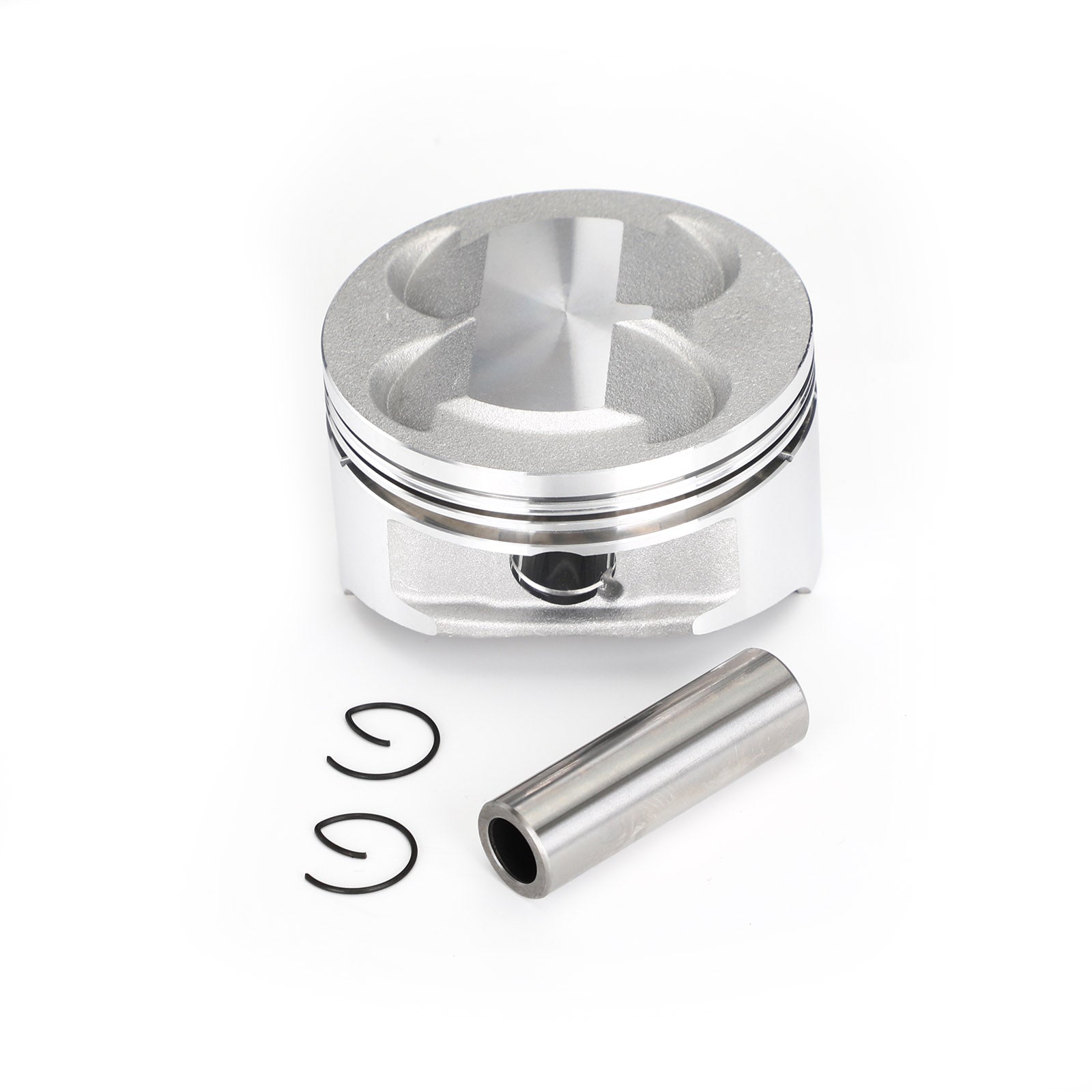

1x Piston

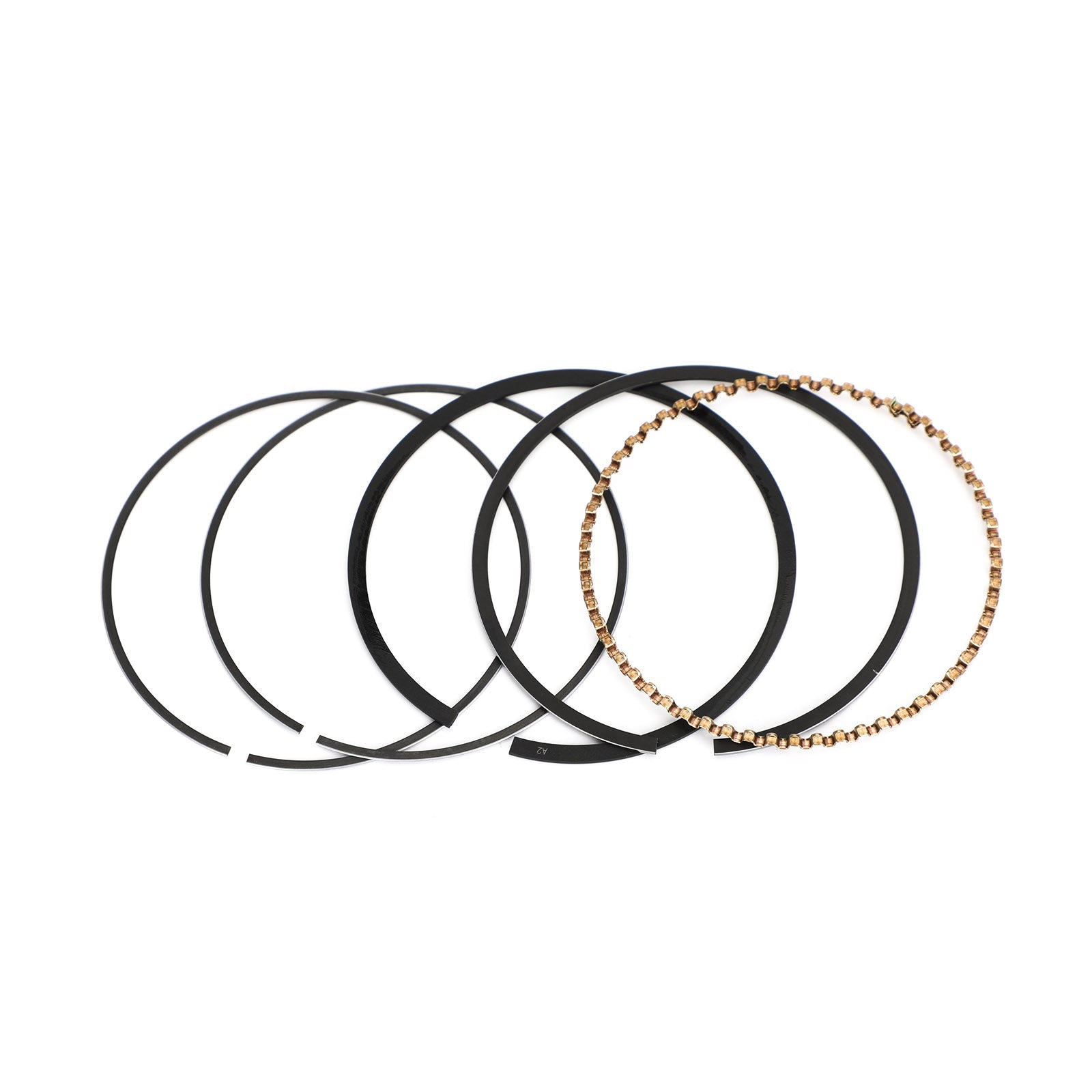

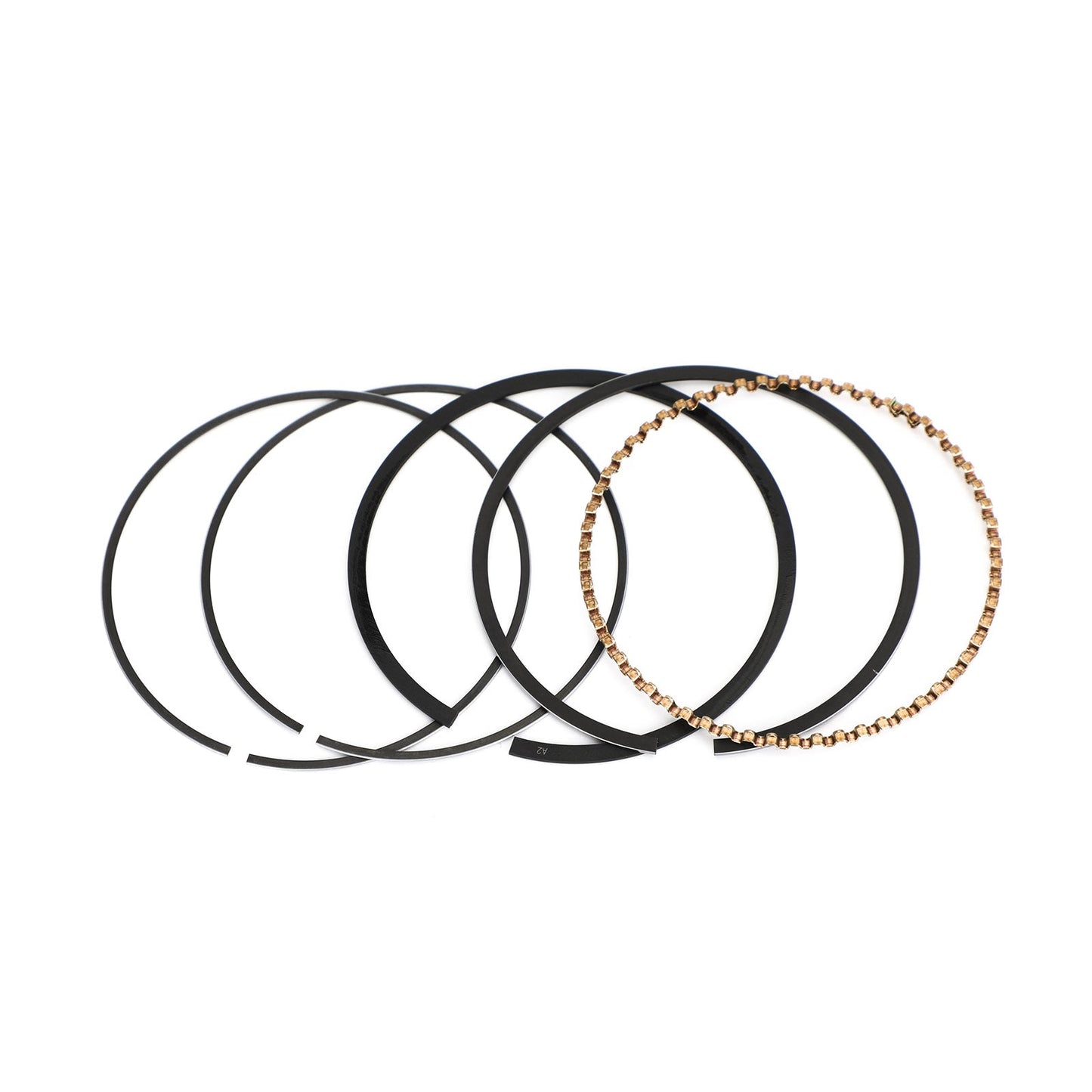

1x Piston Ring Set
1x Wristpin
1x Circlips(2)

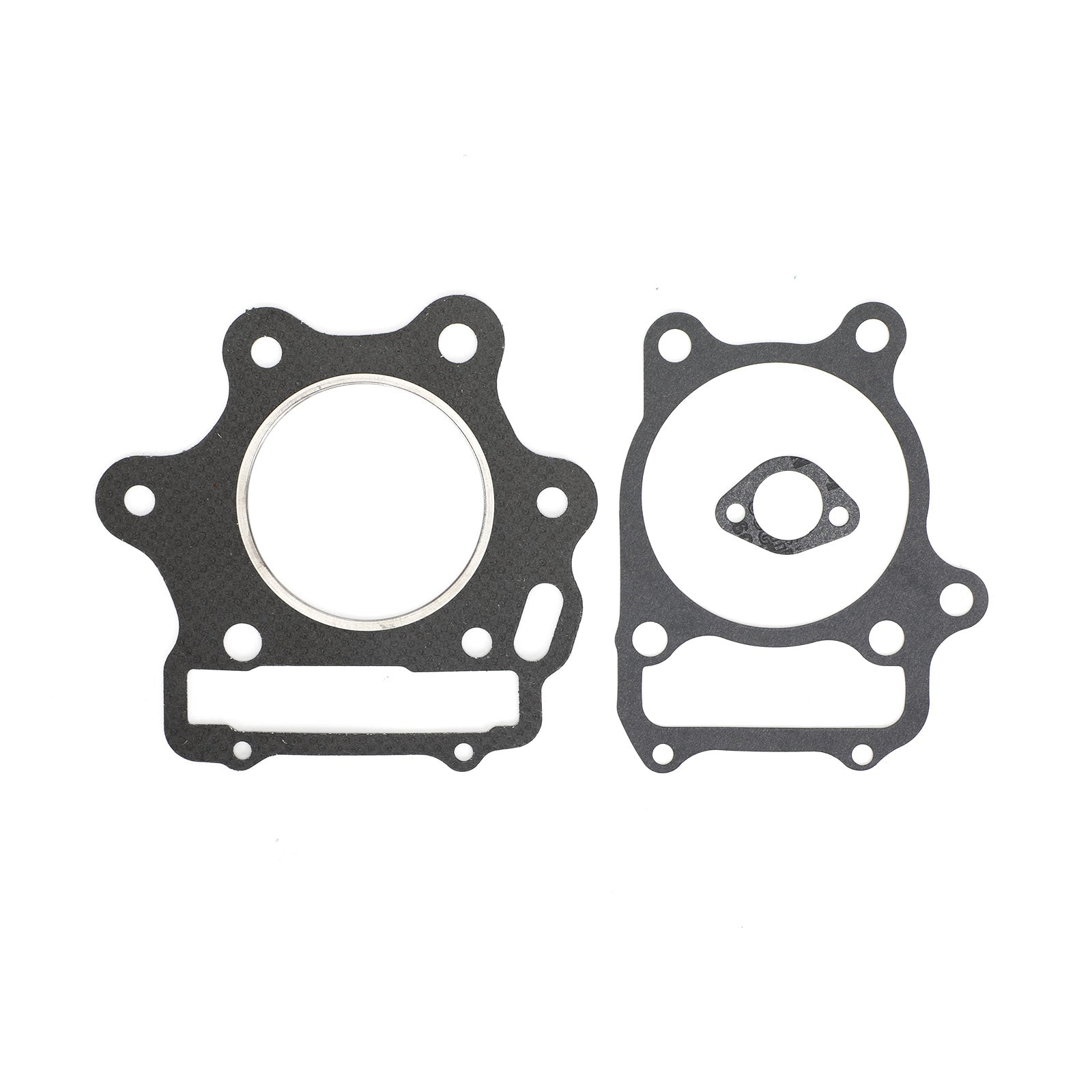

1x Cylinder Head Gasket
1x Cylinder Base Gasket
1x Chain Tensioner Gasket

Note:
Big bore kit - 80mm - 330cc.
Ring end gaps are checked prior to shipment for proper sizing.
Please check out the product and size fits your motorcycle or not before you purchase.
