Cylinder Piston Gasket Kit For Suzuki Address V50G CA42A CA44A Lets 4 UZ50 CA41A

In stock
SKU: M587-A077
Regular price £30.89 GBP

Cylinder Barrel Jug Piston Gasket Kit For Suzuki Address V50 V50G Lets 4 UZ50 CA41A CA42A CA43A CA44A CA45A CA46A CA47A

Features:

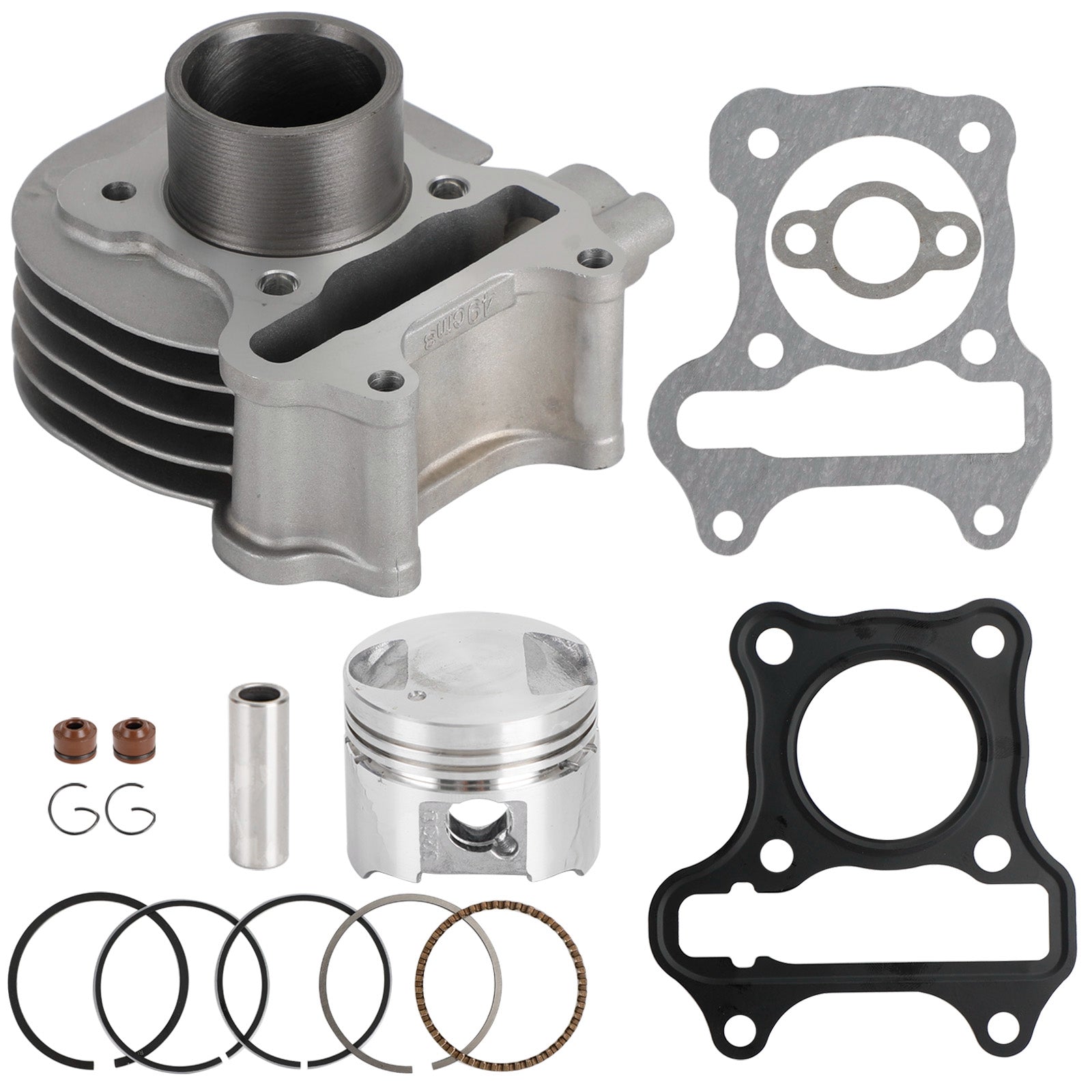

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Cast piston has super-high silicone content for additional strength.
Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
Piston dome is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 39.00 mm.
All of the components within this kit are bolt-on ready for a hassle free installation.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Actual Displacement: 49cc
Bore Type: Standard Bore

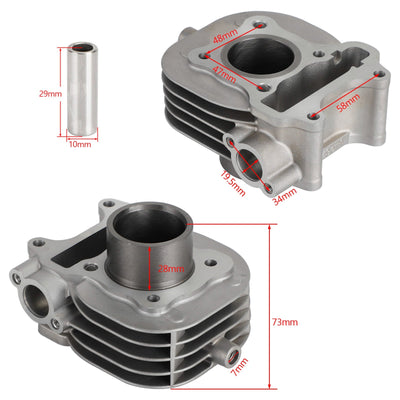

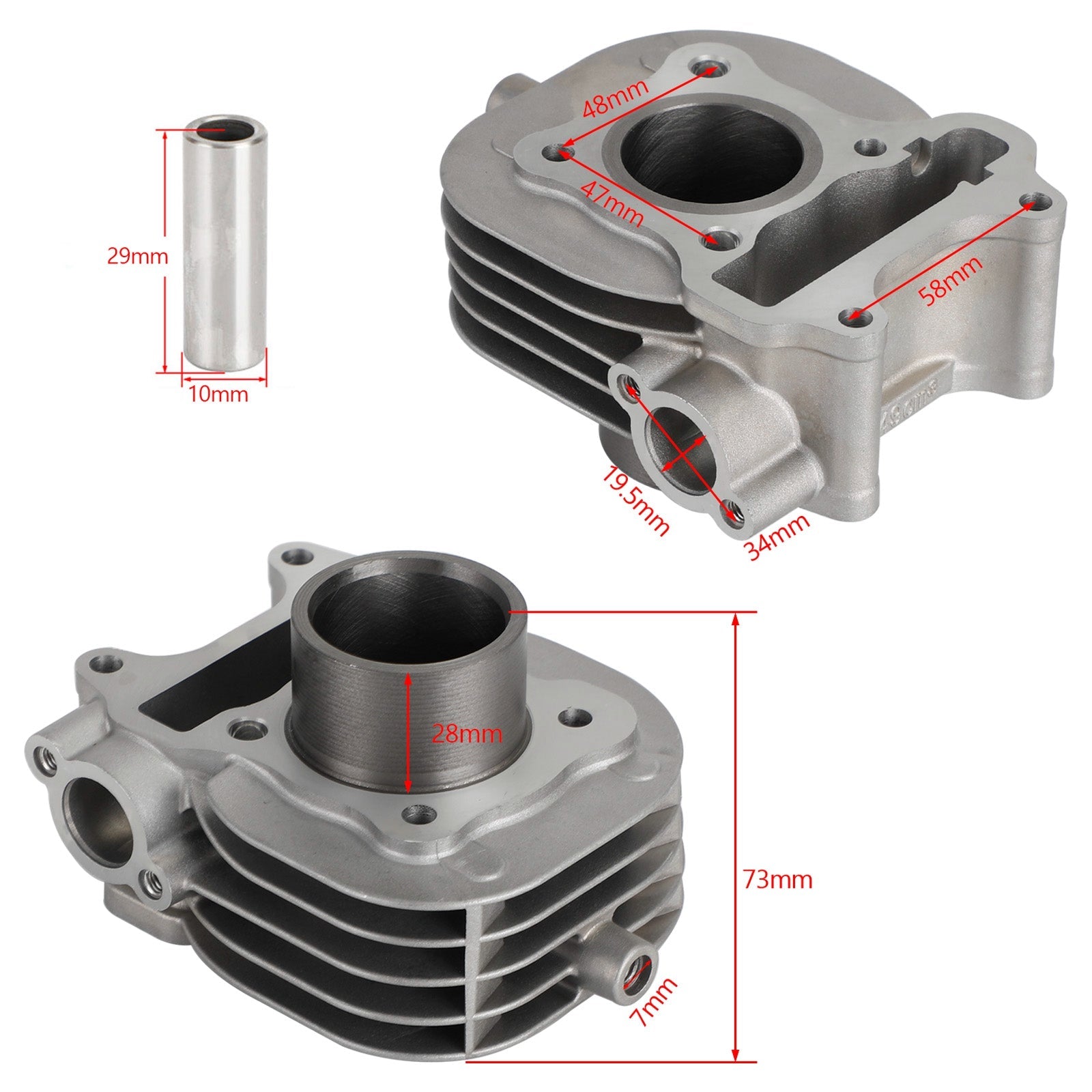

Bore: 39 mm
Pin Height: 29 mm
Pin Diameter: 10 mm
Rings: 0.8*0.8*2.0 mm

Replacement Part Number:

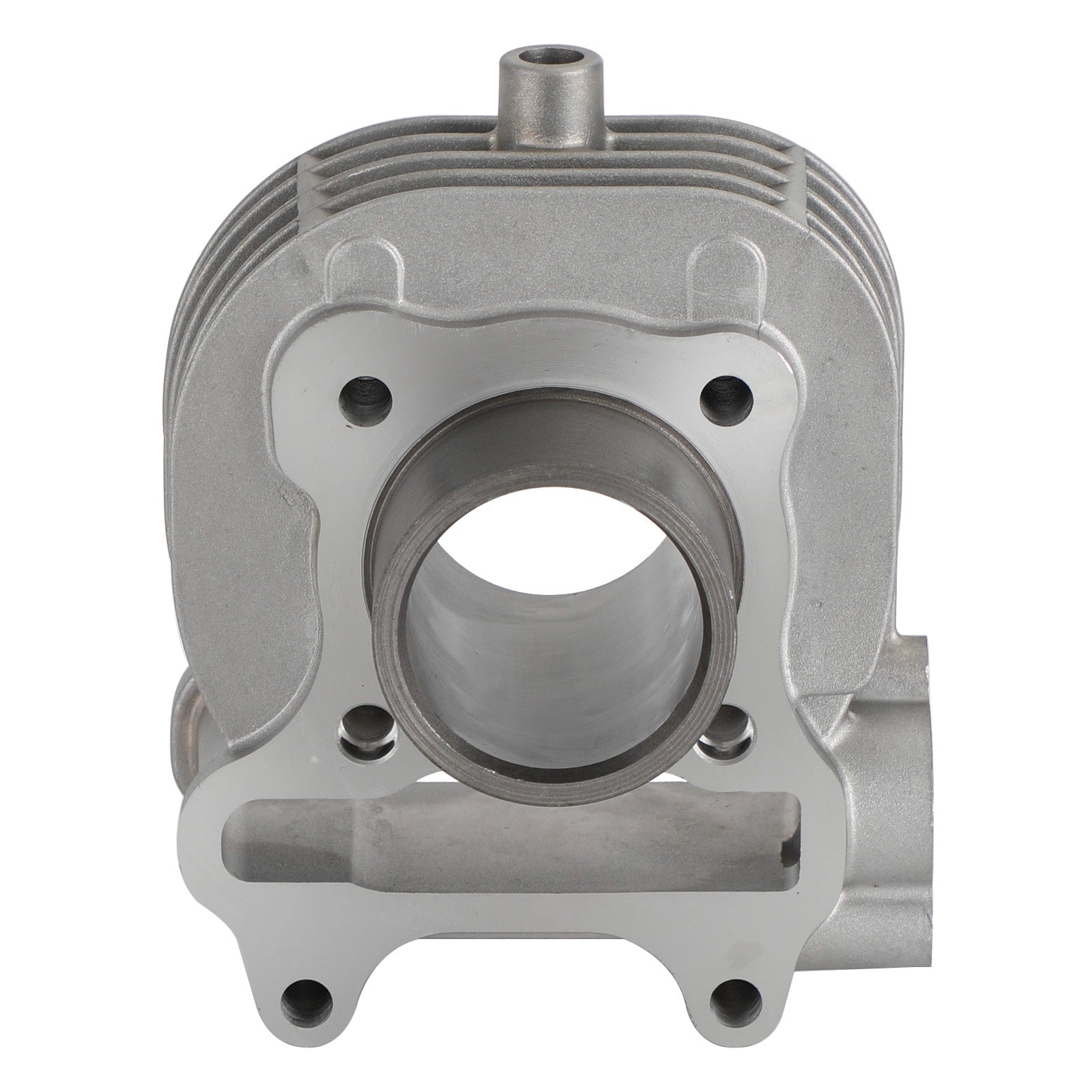

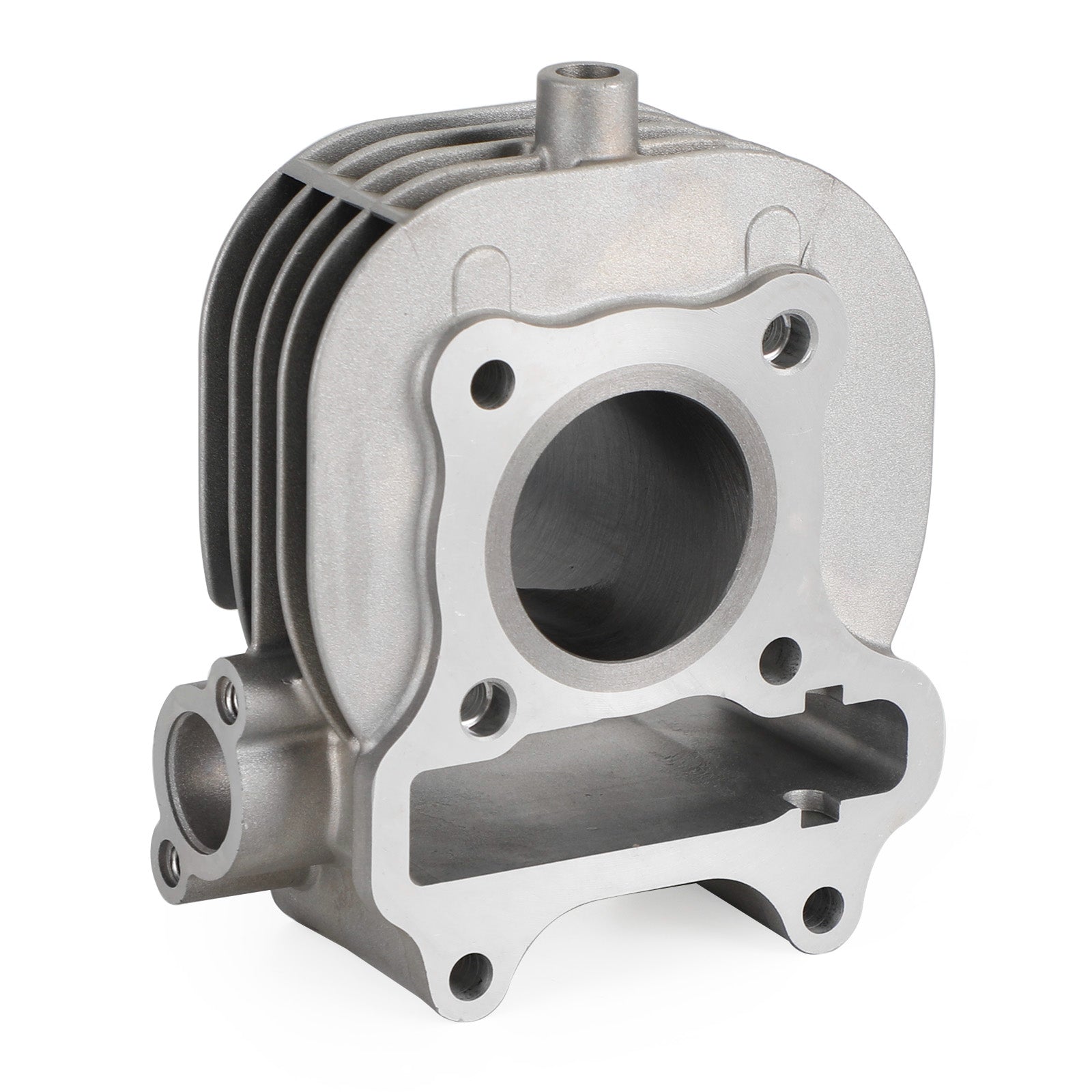

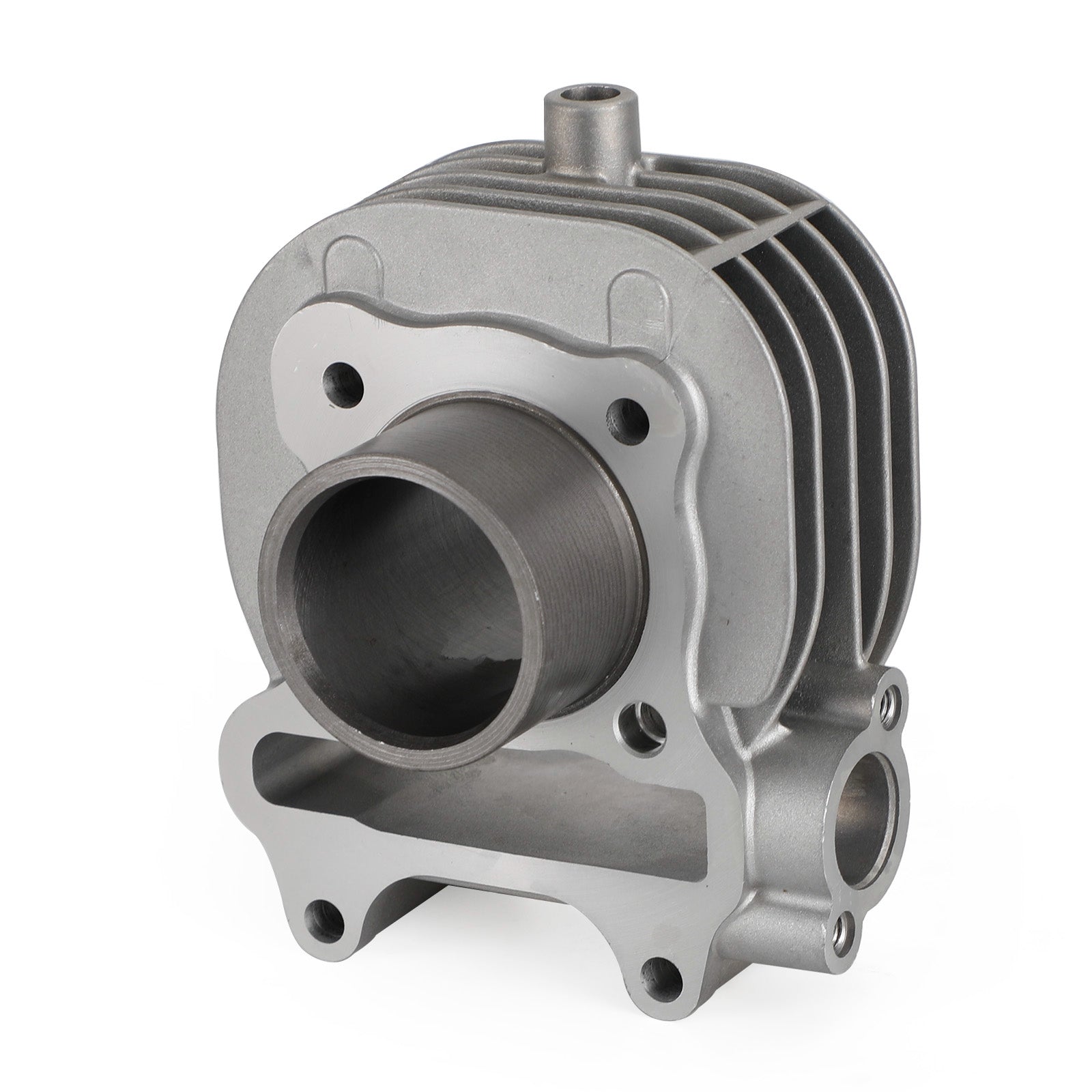

Cylinder: 11211-32G00
Cylinder Base Gasket: 11241-32G00
Cylinder Head Gasket: 11141-32G00
Piston: 12111-32G01
Pin, piston: 12151-32G00
Ring Set, piston: 12140-32G00
Circlips, piston: 09381-10006

Fitments:
Fit for Suzuki Address V50 V50G CA41A CA42A CA43A CA44A CA45A CA46A CA47A
Fit for Suzuki Lets 4 UZ50 CA41A

ONLY FITS FUEL INJECTION FOUR STROKE MODELS.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:
1x 39mm Cylinder
1x Piston(STD)

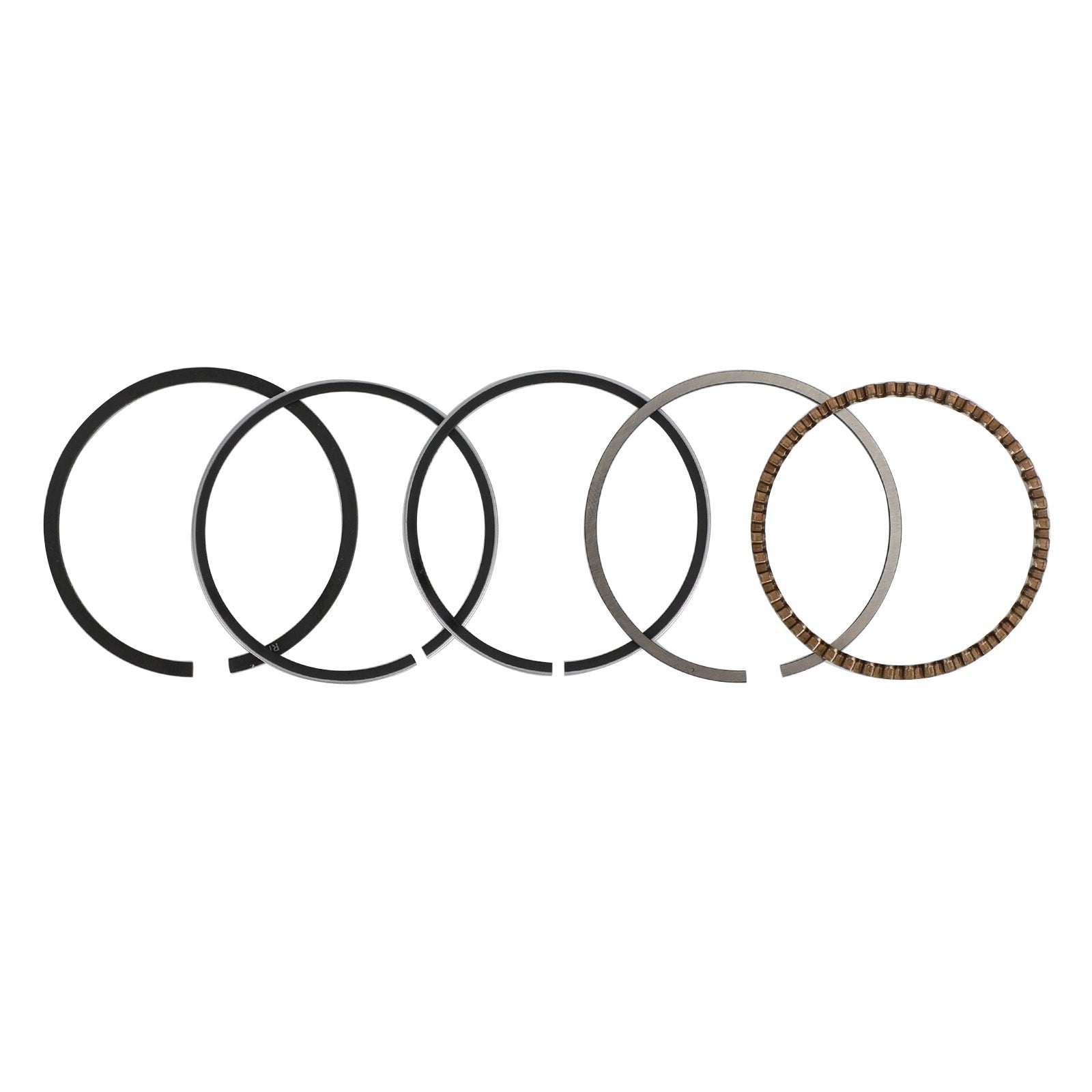

1x Piston Ring Set
1x Wristpin
1x Circlip(2)
2x Valve seals

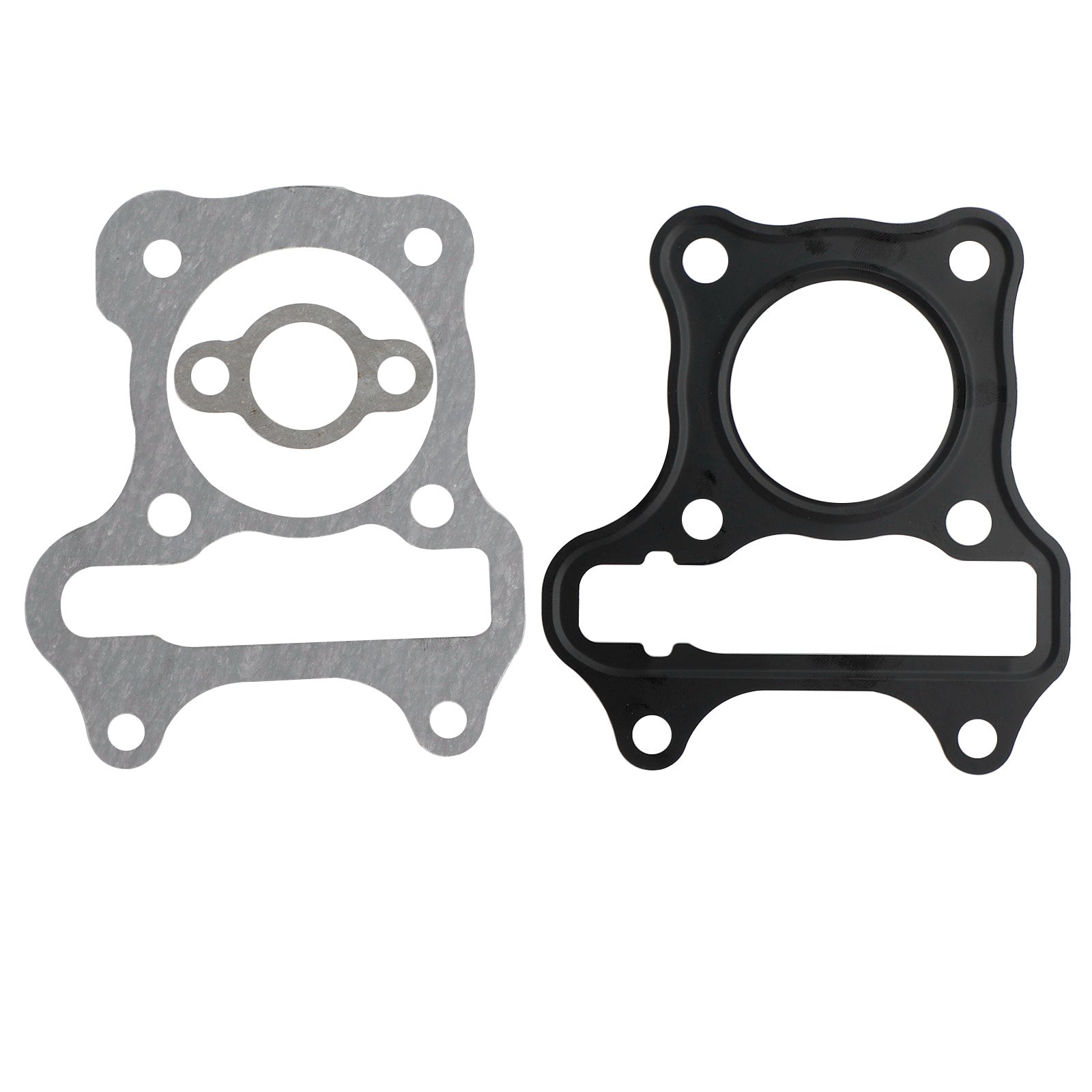

1x Cylinder Base Gasket
1x Cylinder Head Gasket

Note:
Ring end gaps are checked prior to shipment for proper sizing.
