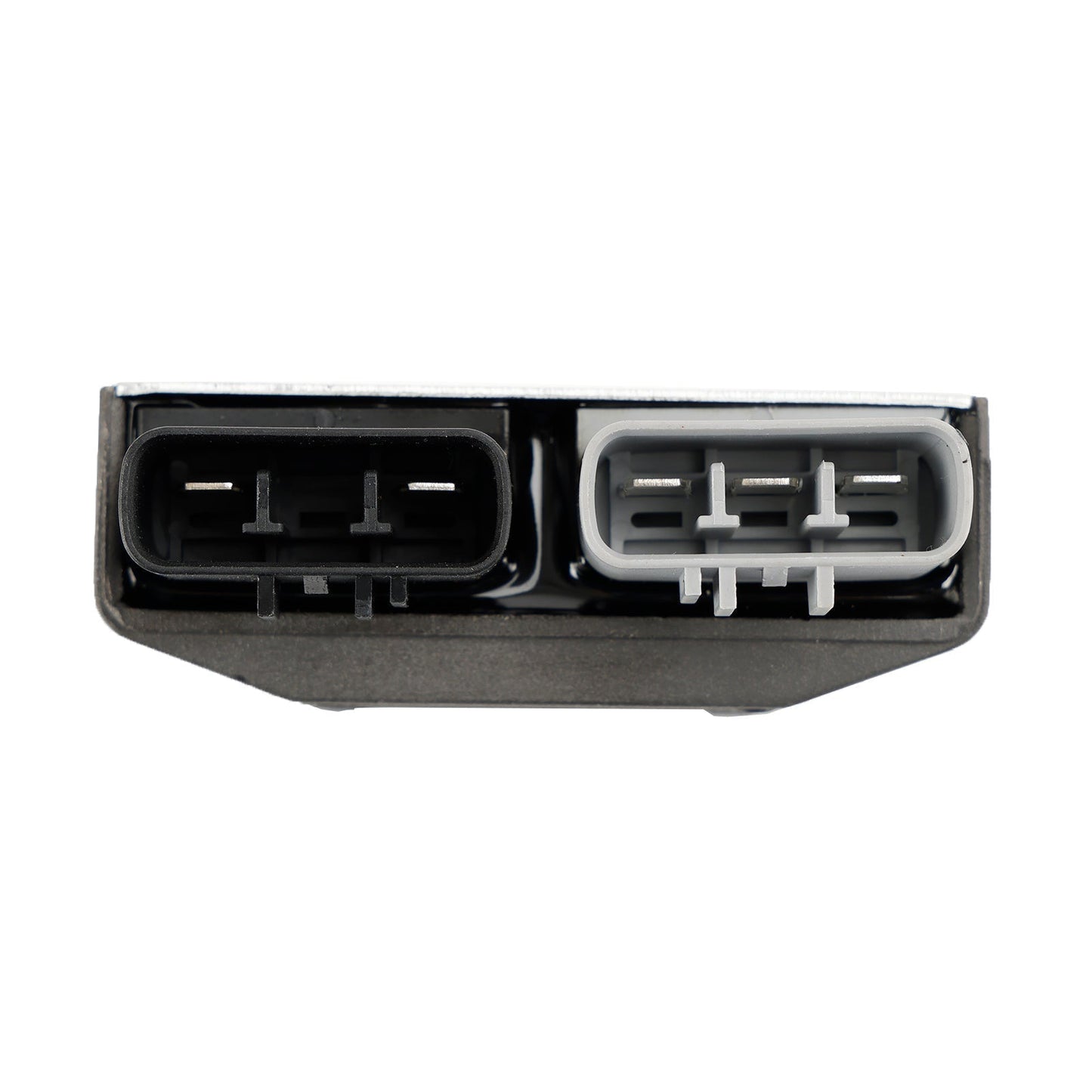

18-Pole Magneto Coil Stator + Voltage Regulator + Gasket Assy Fit For Tiger 800, Xc, Xca, Xcx, Xr, Xrx 2010-2020(VIN 674842)

Features:
Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

ATTENTION:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.
This regulator is not suitable for lithium-ion batteries! The battery or other electric parts can be damaged!

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

other specifications:
Number of stator wires: 5
Number of stator plugs: 2
Number of stator pins: 3 + 2
Number of stator poles: 18

Replacement Part Number:
Stator Assy: T1305965
Rectifier, regulator: T1300675
Gasket, generator cover: T1260289

Fits Model/Year:
This is the 18-pole edition of the stator, there are 15-pole edition, make sure this is the correct stator that you want.
Fit for Tiger 800 2011-2017 ((From VIN 674842)
Fit for Tiger 800 XC 2011-2017 ((From VIN 674842)
Fit for Tiger 800 XCA 2018-2020 ((From VIN 674842)
Fit for Tiger 800 XCX 2010-2020 ((From VIN 674842)
Fit for Tiger 800 XR 2010-2020 ((From VIN 674842)
Fit for Tiger 800 XRX 2010-2020 ((From VIN 674842)

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:
1 x 18 Poles Generator Stator
1 x Voltage Regulator
1 x Crankcase Gasket

(Comes exactly as pictured.)

Note:
Before installing your new stator regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
