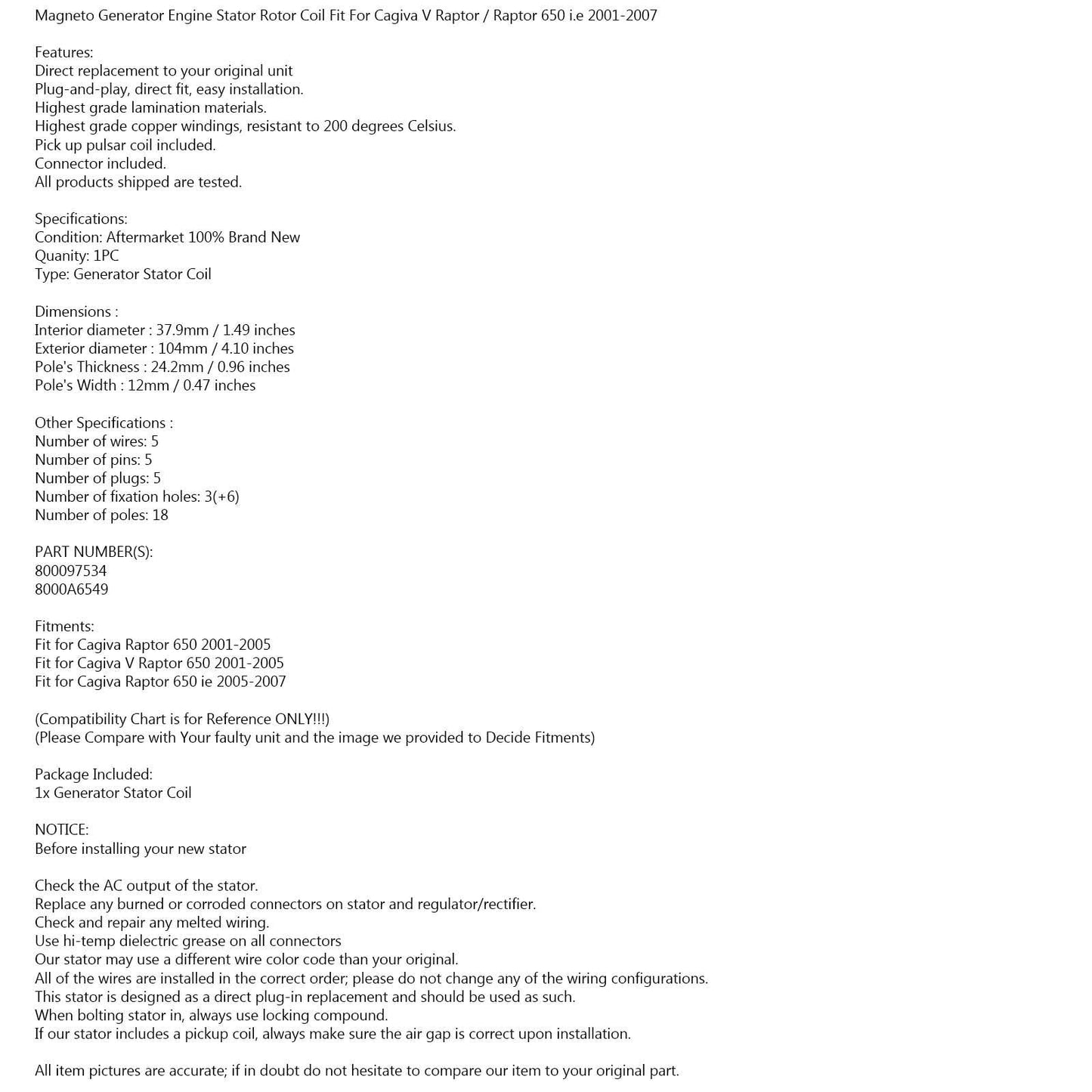

Magneto Generator Engine Stator Rotor Coil Fit For Cagiva V Raptor / Raptor 650 i.e 2001-2007

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Dimensions :
Interior diameter : 37.9mm / 1.49 inches
Exterior diameter : 104mm / 4.10 inches
Pole's Thickness : 24.2mm / 0.96 inches
Pole's Width : 12mm / 0.47 inches

Other Specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 5
Number of fixation holes: 3(+6)
Number of poles: 18

PART NUMBER(S):
800097534
8000A6549

Fitments:
Fit for Cagiva Raptor 650 2001-2005
Fit for Cagiva V Raptor 650 2001-2005
Fit for Cagiva Raptor 650 ie 2005-2007

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
