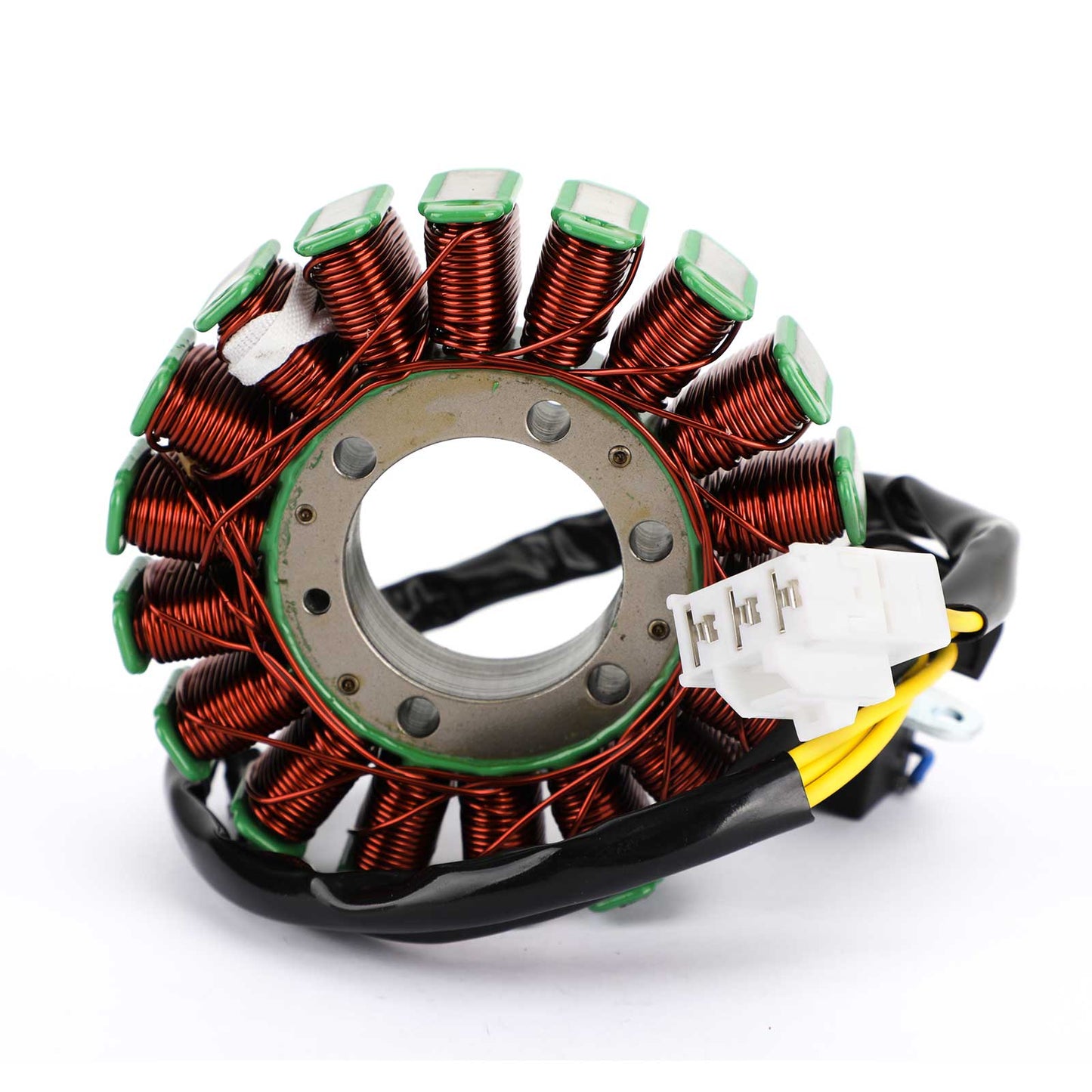

Magneto Generator Engine Stator Rotor Coil Fit For Arctic Cat Bearcat Procross Proclimb Z1 ZR 2007-2014

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Dimensions :
Interior diameter : 42mm / 1.65 inches
Exterior diameter : 115mm / 4.52 inches
Pole's Thickness : 28.2mm / 1.11 inches
Pole's Width : 14.3mm / 0.56 inches

Other Specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 5
Number of poles: 18

PART NUMBER:
3007-231

Fitments:
Fit for Arctic Cat Bearcat Z1 XT 2009-2014
Fit for Arctic Cat Bearcat Z1 XT GS 2012-2014
Fit for Arctic Cat Jaguar Z1 1100 2007-2008
Fit for Arctic Cat M 9000 2014
Fit for Arctic Cat ProClimb M1100 2012-2013
Fit for Arctic Cat ProClimb M1100 Turbo 2012-2013
Fit for Arctic Cat Proclimb XF 1100 Turbo Sno Pro High Country 2013
Fit for Arctic Cat Proclimb XF 1100 Turbo Sno Pro High Country LTD 2013
Fit for Arctic Cat ProCross F1100 2012-2013
Fit for Arctic Cat Procross F1100 LXR 2013
Fit for Arctic Cat Procross F1100 Sno Pro 2013
Fit for Arctic Cat Procross F1100 Sno Pro Limited 2013
Fit for Arctic Cat Procross F1100 Sno Pro RR 2013
Fit for Arctic Cat ProCross F1100 Turbo 2012
Fit for Arctic Cat ProCross XF 1100 CrossTour 2013
Fit for Arctic Cat ProCross XF 1100 CrossTour Turbo 2013
Fit for Arctic Cat ProCross XF 1100 Sno Pro 2012-2013
Fit for Arctic Cat ProCross XF 1100 Turbo 2012
Fit for Arctic Cat TZ 1 2008-2014
Fit for Arctic Cat TZ 1 LXR Turbo 2009-2013
Fit for Arctic Cat TZ 1 LXR 2008-2014
Fit for Arctic Cat XF 1100 Turbo LXR 2013
Fit for Arctic Cat XF 9000 LXR 2014
Fit for Arctic Cat Z1 2009-2011
Fit for Arctic Cat Z1 LXR 2009-2011
Fit for Arctic Cat Z1 Turbo 2009-2011
Fit for Arctic Cat Z1 Turbo LXR 2009-2011
Fit for Arctic Cat ZR 5000 LXR 2014

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
