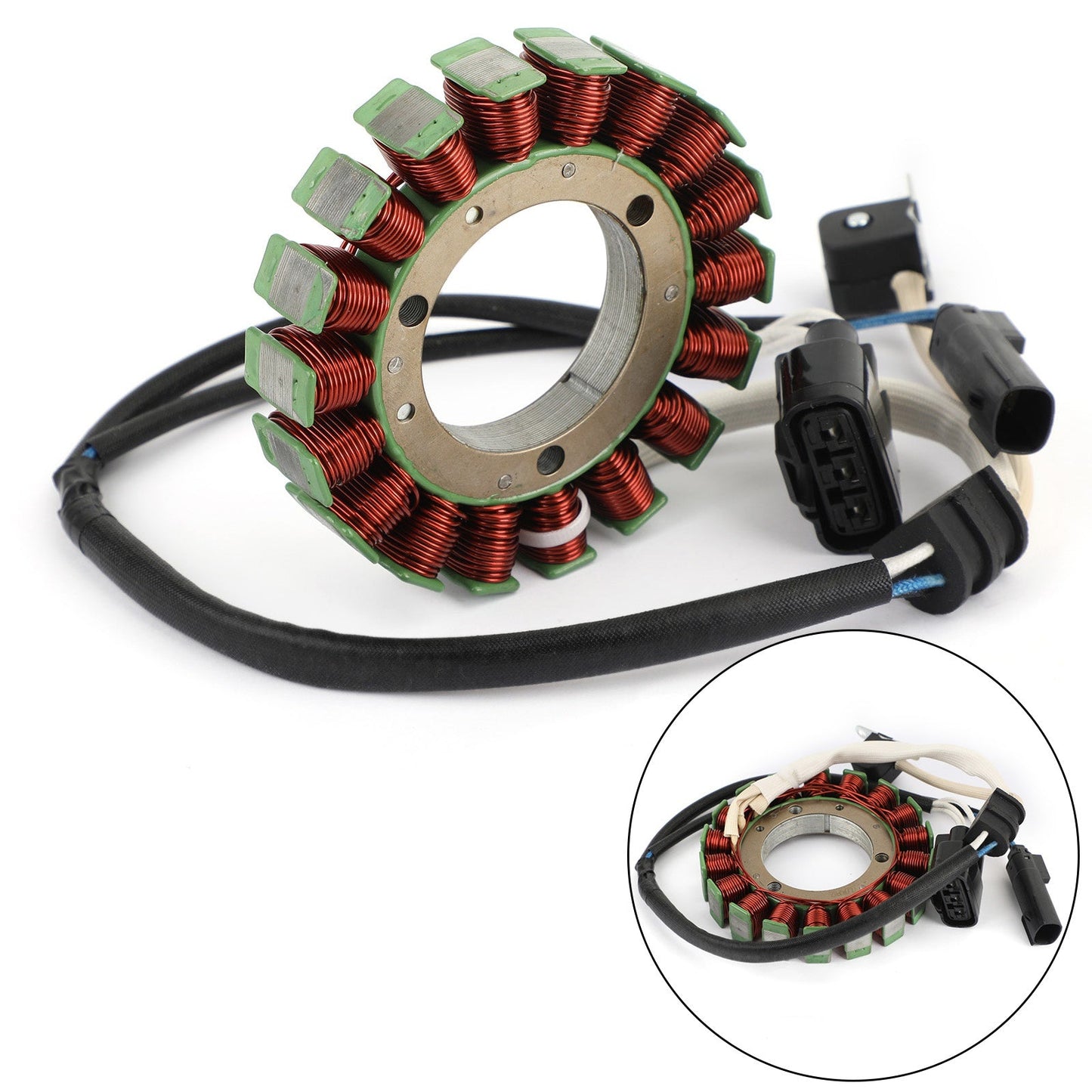

Magneto Generator Engine Stator Fit For Coleman Outfitter / Hisun Motors 450 500 750 UTV 31120-007G-0000

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Dimensions :
Interior diameter : 53.9mm / 2.12 inches
Exterior diameter : 114.9mm / 4.52 inches
Pole's Thickness : 23.9mm / 0.94 inches
Pole's Width : 14.2mm / 0.55 inches

Other Specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3
Number of poles: 18

PART NUMBER(S):
P007G00311200000
31120-007G-0000

Fitments:
Fit for Hisun Motors P007G00311200000
Fit for Hisun Motors Vforge 550 HS550
Fit for Hisun Motors Sector 550 HS550 UTV
Fit for Hisun Motors Vector 750 HS750 UTV
Fit for Hisun Motors Strike 550 2017
Fit for Hisun Motors Sector 550 2017
Fit for Hisun Motors Sector 450 2015-2016
Fit for Hisun Motors Sector 550 2017
Fit for Hisun Motors Sector 750 2016-2017
Fit for Hisun Motors Sector 750 CREW 2017
Fit for Hisun Motors Vector 550 2016-2017
Fit for Hisun Motors Vector 500 HD 2017
Fit for Hisun Motors Vector 550 2016-2017
Fit for Hisun Motors Vector 750 2016-2017
Fit for Hisun Motors Vector 750 Crem 2017
Fit for Hisun Motors Tactic 550 2017
Fit for Hisun Motors Tactic 750 2017
Fit for Hisun Motors Forge 450 2015-2016
Fit for Hisun Motors Forge 550

Fit for Coleman Outfitter 31120-007G-0000
Fit for Coleman Outfitter 450 UTV
Fit for Coleman Outfitter 750 UTV
Fit for Coleman Outfitter 500-C Camo UTV

Fit for Rural King RK Performance 450
Fit for Rural King RK Performance 550
Fit for Rural King RK Performance 750
Fit for Rural King RK Performance 750 Crew

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
