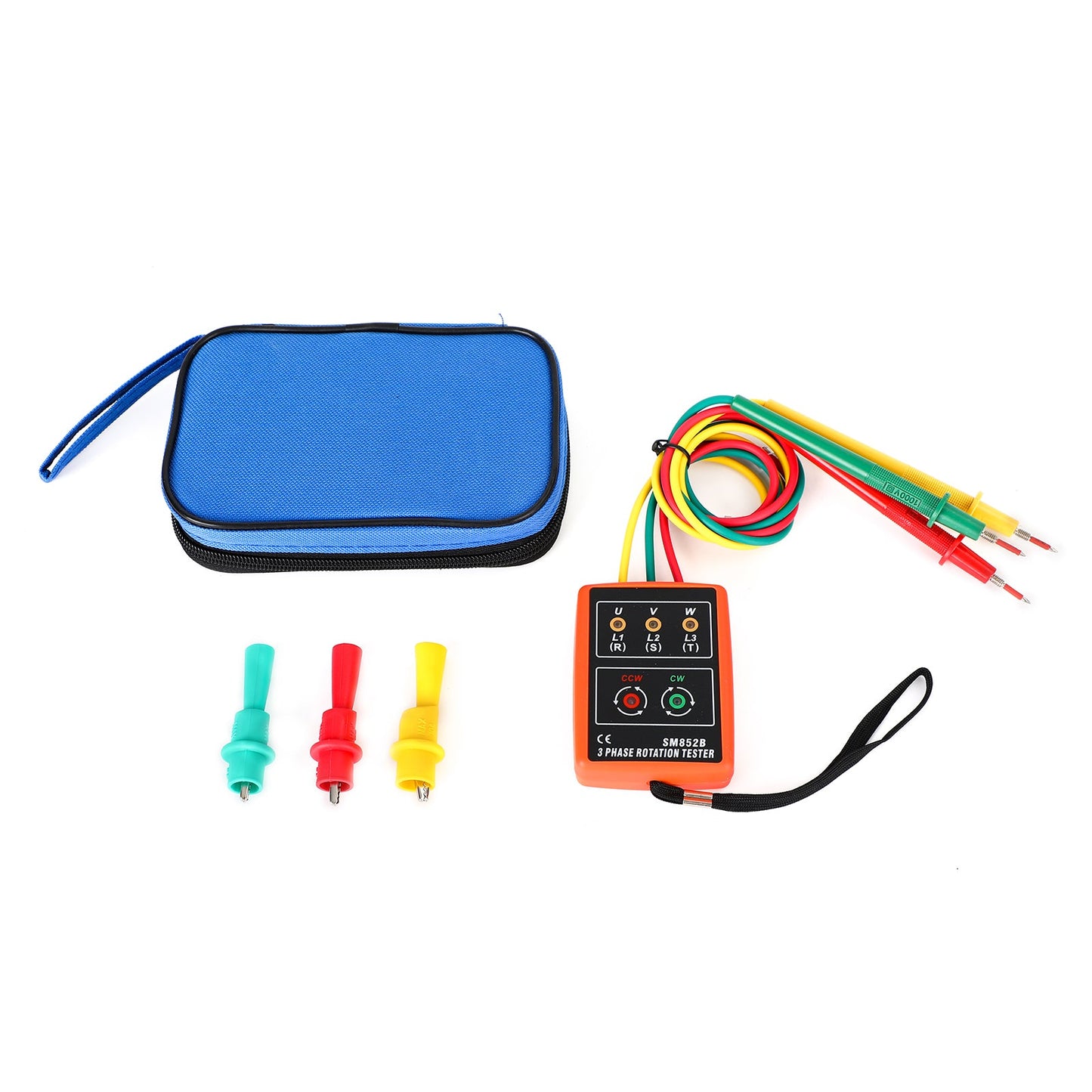

3 Phase Sequence Rotation Tester Indicator Detector Meter LED Buzzer Tool Kit

Feature:
1: 2 functions in one unit: Open phase indication & Phase rotation indication
2: Fast and accurate measurement ,Indicate direction of rotation
3: Portable and compact design, easy to carry
4: Check the presence of open phase and identify 3 phase sequence condition
5: Ensures the object being tested is not damaged from incorrect wiring
6: With simultaneous indications via LEDs and audible buzzer sound
7: Indicate phase orientation (clockwise or counter-clockwise) and whether each of three phases is live

Specifics:
Condition: 100% Brand New
Operation Voltage : 60V ~ 600V AC, three phase
Limit Support Voltage : 2000 V/min
Operating Frequency Range : 20 Hz ~ 400 Hz
Limit Time for Continuous Use:
60 minutes maximum at 200V AC
4 minutes maximum at 600V AC
Test Leads: Double insulation
Length of test leads: approx. 1 meter long (3.3 feet)
Protection Level: 2000 V (impulse voltage 4000 V)
Operating Temperature: -10 ~ 60 °C (14 ~ 140 °F)
dimension: approx. 85 x 64 x 23 mm (3.2 x 2.5 x 0.9 inch)
weight: approx. 200g

Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Need some professional knowledge to use it

Package Included:
1* Phase Indicator
3* Alligator clips
1* Zippered blue carrying case
1* User Manual
