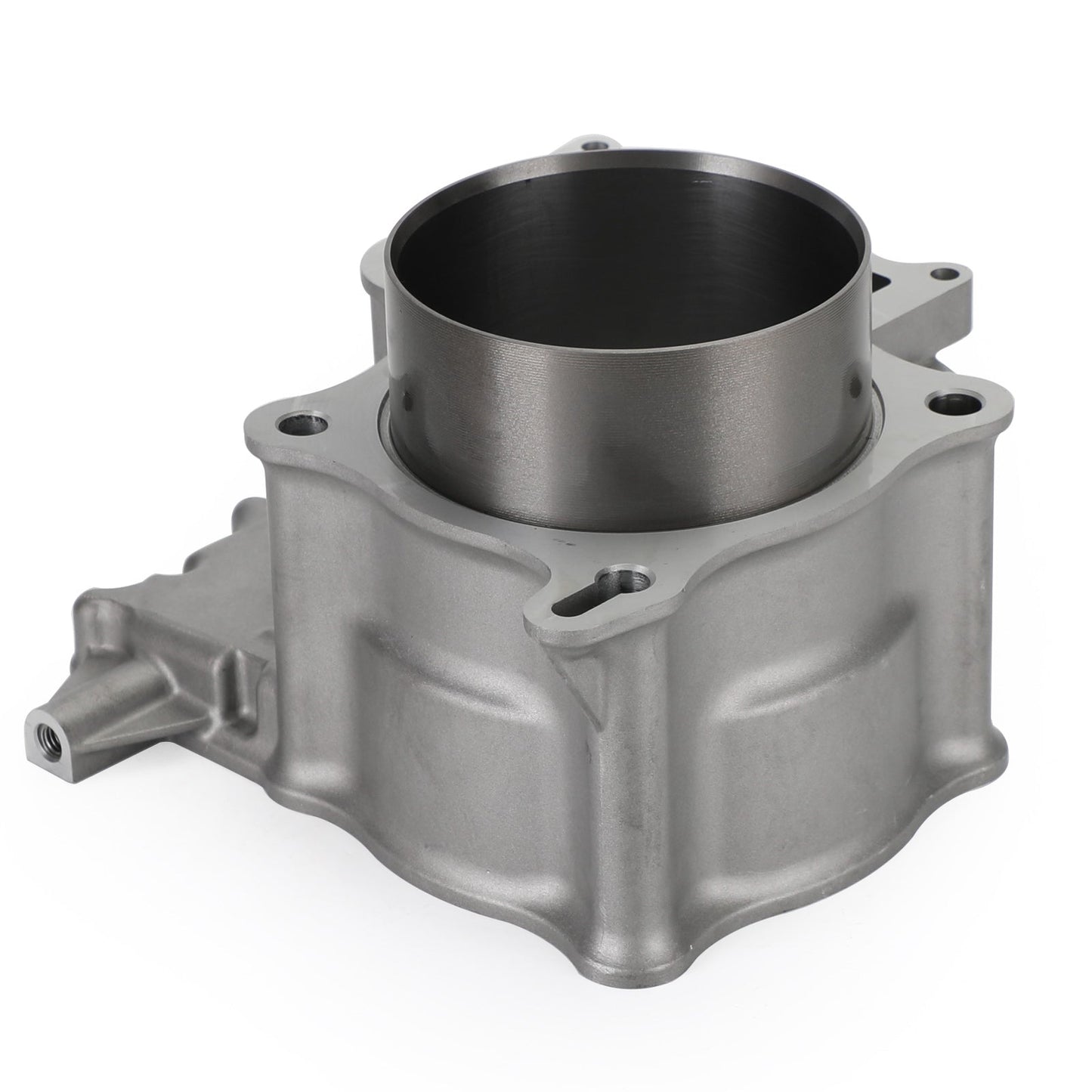

Cylinder Piston Top End Kit For Honda 14-21 SXS700 SXS 700 Pioneer 12100-HN8-A60

In stock
SKU: M587-A047~1
Regular price £403.89 GBP

Cylinder Jug 102mm STD Top End Kit Fit for Honda 14-21 SXS700 Pioneer & 06-22 TRX680 Rincon Piston Rings Gaskets

Features:
Kit includes piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Cast piston has super-high silicone content for additional strength.
Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
Piston dome is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 102.00 mm.
All of the components within this kit are bolt-on ready for a hassle free installation.

Specifics:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Actual Displacement: 675cc
Bore Type: Stanard Bore
Bore Size: STD 102 mm
Piston Bore: 101.5mm
Pin Length: 63mm
Pin Diameter: 28mm

Replacement Part Number:
Cylinder: 12100-HN8-A60
Gasket Kit A: 06111-HL3-A00
Cylinder Base Gasket: 12191-HN8-000
Cylinder Head Gasket: 12251-HN8-A61
Cylinder Head Cover Gasket: 12315-HN8-000
Tensioner Gasket: 12194-HC5-740
Piston: 13101-HN8-A60
Pin, piston: 13111-HN8-A60
Ring Set, piston: 13010-HN8-A61
Circlips, piston: 90602-MBN-670

Fitments:
Fit for Honda 2006-2022 TRX680FA/FGA Fourtrax Rincon 680 / GPScape
Fit for Honda 2009-2013 MUV700 Big Red 700
Fit for Honda 2014-2021 Pioneer 700 SXS700 M2 & M4
Fit for Honda 2017-2021 Pioneer 700 Deluxe SXS700 M2 & M4

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:
1x Cylinder
1x Piston(STD)
1x Piston Ring Set
1x Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Cylinder Head Cover Gasket (Valve Cover Gasket)
1x Chain Tensioner Gasket

Note:
Ring end gaps are checked prior to shipment for proper sizing.
Please check out the product and size fits your motorcycle or not before you purchase.Shipping
