Magneto Coil Stator + Voltage Regulator + Gasket Assy Fit For Yamaha Raptor 50 80 Badger 80 Grizzly 80 1997-2009

Features:
Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

ATTENTION:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.
This regulator is not suitable for lithium-ion batteries! The battery or other electric parts can be damaged!

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

other specification:
Stator
Number of plugs: 2 (+1)
Number of wires: 8
Number of pins: 4 + 4 (+1)

Regulator
Number of plugs: 1
Number of wires: 4
Number of pins: 4

Replacement Part Number:
Stator Assy: 4EM-85560-10, 4EM-85560-12
Rectifier, regulator: 3GB-81960-10, 5TH-81960-01
Gasket, generator cover: 3GB-15451-00

Fits Make/Year/Model:
Fit for Yamaha ATV 2004 RAPTOR 50 - YFM50S
Fit for Yamaha ATV 2005 RAPTOR 50 - YFM50RT
Fit for Yamaha ATV 2006 RAPTOR 50 - YFM50RV
Fit for Yamaha ATV 2007 RAPTOR 50 - YFM50RW
Fit for Yamaha ATV 2008 RAPTOR 50 - YFM50RX
Fit for Yamaha ATV 2008 RAPTOR 50 - YFM50RXGY
Fit for Yamaha ATV 2008 RAPTOR 50 - YFM50RXL

Fit for Yamaha ATV 2002 RAPTOR 80 - YFM80WP
Fit for Yamaha ATV 2003 RAPTOR 80 - YFM80WR
Fit for Yamaha ATV 2004 RAPTOR 80 - YFM80WS
Fit for Yamaha ATV 2005 RAPTOR 80 - YFM80RT
Fit for Yamaha ATV 2006 RAPTOR 80 - YFM80RV
Fit for Yamaha ATV 2007 RAPTOR 80 - YFM80RW
Fit for Yamaha ATV 2008 RAPTOR 80 - YFM80RX
Fit for Yamaha ATV 2008 RAPTOR 80 - YFM80RXGY
Fit for Yamaha ATV 2008 RAPTOR 80 - YFM80RXL

Fit for Yamaha ATV 2005 GRIZZLY 80 - YFM80GT
Fit for Yamaha ATV 2006 GRIZZLY 80 - YFM80GV
Fit for Yamaha ATV 2006 GRIZZLY 80 HUNTER - YFM80GHV
Fit for Yamaha ATV 2007 GRIZZLY 80 - YFM80GW
Fit for Yamaha ATV 2007 GRIZZLY 80 HUNTER - YFM80GHW
Fit for Yamaha ATV 2008 GRIZZLY 80 - YFM80GX
Fit for Yamaha ATV 2008 GRIZZLY 80 - YFM80GXGR
Fit for Yamaha ATV 2008 GRIZZLY 80 - YFM80GXL
Fit for Yamaha ATV 2008 GRIZZLY 80 HUNTER - YFM80GX-B
Fit for Yamaha ATV 2008 GRIZZLY 80 HUNTER (Fit for Yamaha Black (Hunting)) - YFM80GHX

Fit for Yamaha ATV 1997 BADGER 80 - YFM80J
Fit for Yamaha ATV 1998 BADGER 80 - YFM80K
Fit for Yamaha ATV 1999 BADGER 80 - YFM80L
Fit for Yamaha ATV 2000 BADGER 80 - YFM80M
Fit for Yamaha ATV 2000 BADGER 80 - YFM80MC
Fit for Yamaha ATV 2001 BADGER 80 REALTREE_HUNTER - YFM80HN
Fit for Yamaha ATV 2001 BADGER 80 REALTREE_HUNTER - YFM80N1
Fit for Yamaha ATV 2001 BADGER 80 REALTREE_HUNTER - YFM80NC

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:
1 x Generator Stator
1 x Regulator Rectifier

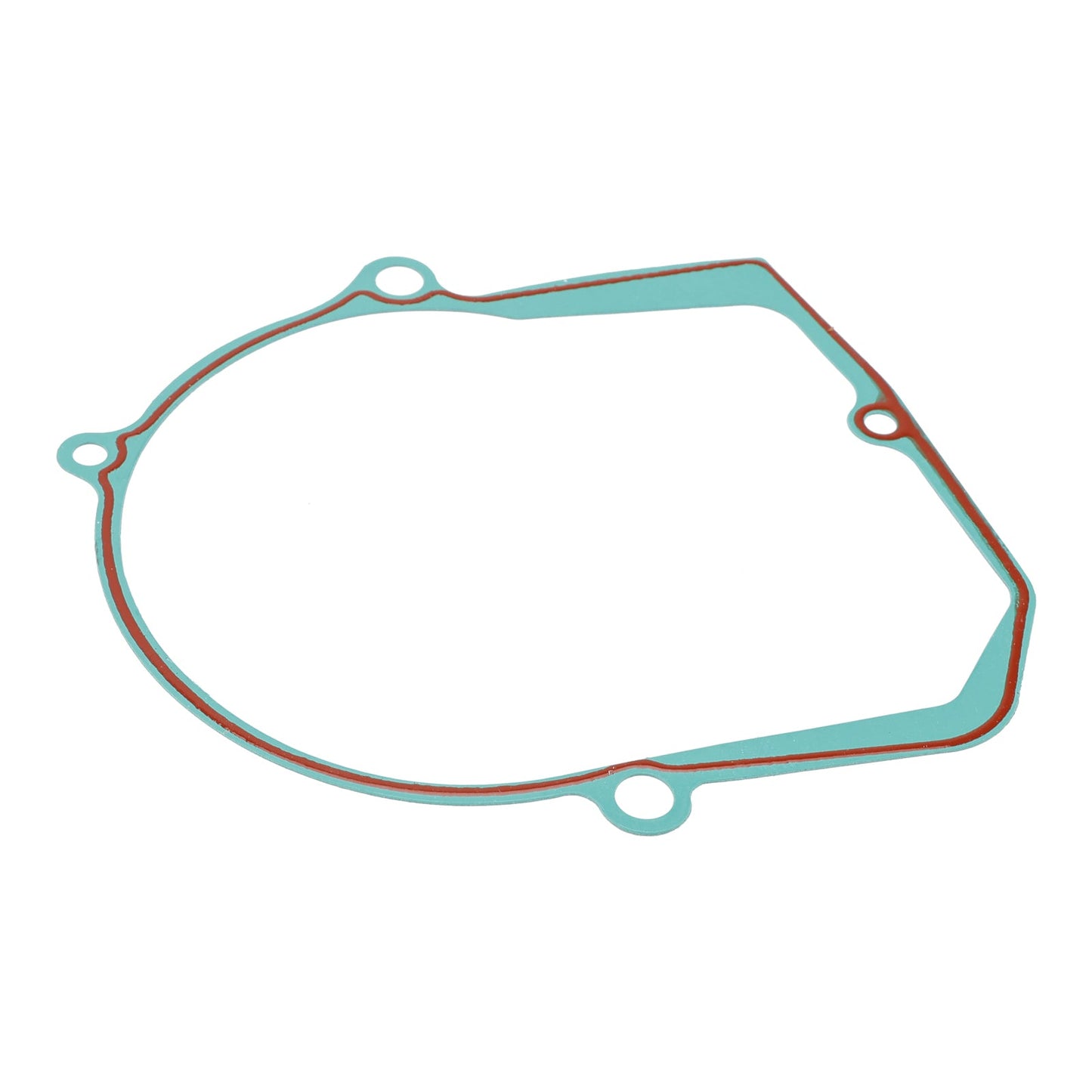

1 x Crankcase Cover Gasket

(Comes exactly as pictured.)

Note:
Before installing your new stator regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
