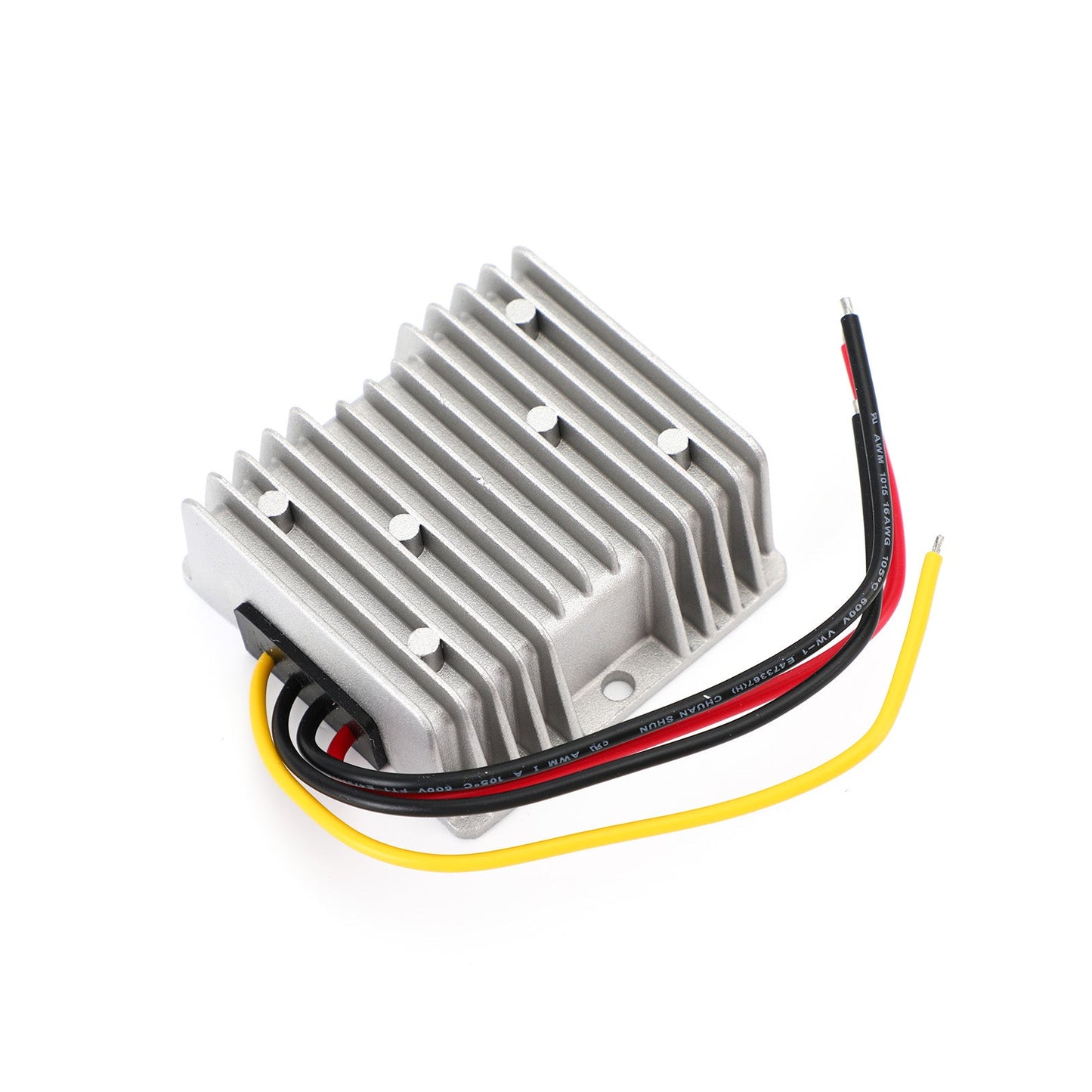

DC/DC Converter Regulator 12V Step Up to 24V 5A 120W

Feature:
1:Aluminium alloy shell with good heat conduction, waterproof.
2:More than 95% power conversion efficiency.
3:The import high heat conduction organic silica gel filling and sealing technology, and compatible with multiple automatic protection functions, overcurrent, short circuit, overtemperature, waterproof, moistureproof
4:IP67 Protection grade, waterproof and anti-shock protection.

Specifics:
Condition: 100% Brand New
Input: DC 12V(10V - 16V)
Output: DC 24V 5A 120W
Conversion Efficiency: More Than 95%
Protection Grade: IP67
Size(mm): 76 x 76 x 32
Pitch of holes:65mm(2.56 inches)
Diameter：5mm(0.2 inch)
wire length:120mm(4.7 inches)
Working temperature: (-40 ℃~80℃)
Full load temperature rise: 50℃
Load regulation: ± 1%
Voltage regulation rate: ± 2%
Minimum pressure: 2V

Note:
1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2.Please take with an average load, do not merge,if there are multiple output cables in the output port.
3.You need to pay attention to make the power module cool,if output is up to the maximum current value.
4.When it is more than 40℃,please make lower power, or enhance heat dissipation
5.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment.

Package Included:
1 x Waterproof Power Converter Regulator
