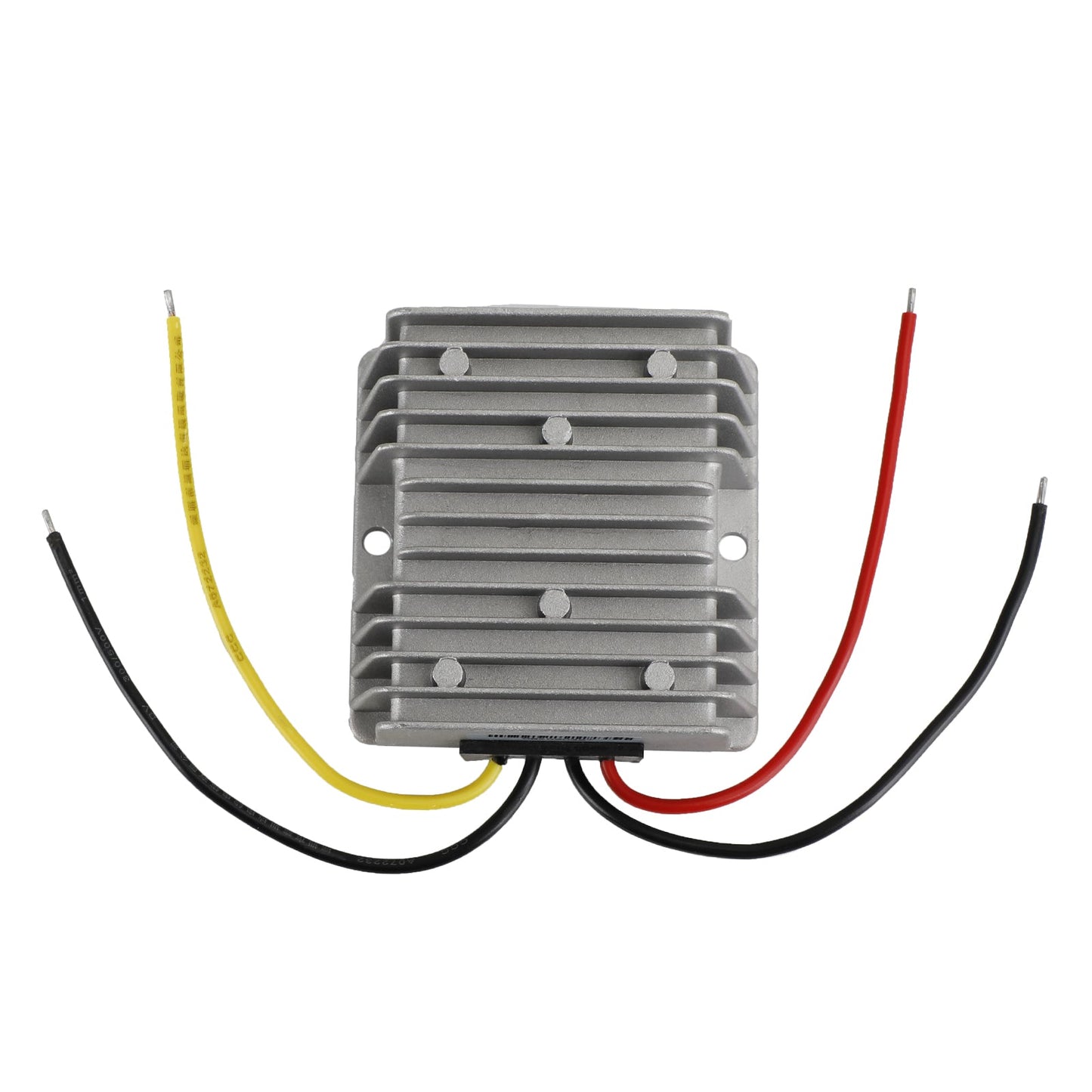

10A Waterproof DC/DC Converter Power Supply Regulator 36V/48V Step Down To 6V

In stock
SKU: I015-A134
Regular price £18.89 GBP

WaterProof 36V/48V to 6V 10A 60W Step Down DC/DC Power Converter Regulator

Feature:
1: High quality thermal silica potting, waterproof, dust-proof, shockproof effect.
2: Aluminum Outer Case material, long term stable and reliable.
3: Easy to install, anti-aging, good heat dissipation.
4: IP68 waterproof and shockproof design, suitable for different outdoor harsh environment.
5: With over-current, over-voltage, over-temperature and short circuit protection, reliable multi-protection design to enhance your using safety.

Specifics:
Condition: 100% Brand New
Shell Material: Die-cast aluminum alloy
Input Rated Voltage: 36V 48V DC
Input Voltage Range: 20-60V DC
Output voltage: DC 6V
Output Current: 10A
Output Rated Power: 60W
Conversion efficiency: 92%~96%
Operating Temperature: -40℃ to +80℃
Waterproof Rating: Ip68
Static power consumption: 10~15ma
Wire lengths: 130mm/5.12inches
Size: 74 x 74 x 32 mm/2.91 x 2.91 x 1.26 inches
Input wire color : (+)Red, (-)Black.
Output wire color : (+)Yellow, (-)Black.

Note:
1. Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2. Please take with an average load, do not merge,if there are multiple output cables in the output port.
3. You need to pay attention to make the power module cool,if output is up to the maximum current value.
4. In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment

Package Included:
1x DC/DC Converter Regulator


Shipping
1. Free Shipping
2. Location: Leicestershire
3. Shipping time: 3-8 buisness days via Royal Mail or FedEx.

Warranty:
Guarantee Period: 1 Years
Returns & Refunds: Customers can return the goods within 60 days of receipt and process quick refund within one day
24-Hour Support: Provide you with timely after-sale support
