1.8MHz-54MHz standing wave meter 240 * 240 full color digital LCD display SWR short wave power standing wave meter digital standing wave meter 0.5-120W power meter

This digital power standing wave meter is compact and portable, equipped with a full-color LCD display, which can directly display forward power, reflected power, antenna power, antenna efficiency, standing wave and battery voltage, accurately meeting the needs of amateurs. It has high-level radio wave alarm function. Delayed shutdown function, automatic launch function and battery under-voltage protection function. LED light dual indication function. Power fine-tuning function, standing wave fine-tuning function. Switch between Chinese and English menu functions with one click.

Introduction:
*120w digital standing wave meter
* Direct reading of multiple parameters of forward and reverse power standing waves
*240*240 full color HD display
*High standing wave alarm function
*Delayed shutdown function, automatic power-on function for transmitting, and battery under-voltage protection function.
*LED light dual indication function (charging indication standing wave indication)
*Power fine-tuning function, standing wave fine-tuning function.
*One-click switching function between Chinese and English menus
*The buzzer can be turned on and off with one click
*One-click switching function for multiple display interfaces
*Customized standing wave alarm setting function
*Customized shutdown delay time setting function

Specifications:
*Operating frequency: 1.8-54Mhz
*Measurement range: 0.5-120W (SSB mode can reach up to 200w, and the buzzer will alarm if it exceeds 200w)
*Standing wave range: 1-99.9 (default alarm is greater than 2.0, the alarm point can be set manually through the hidden function)
*Charging interface: Type_c 5v/1A
*Battery model: 3.7v/1000mAh (when the battery voltage is lower than 3.4v, the buzzer will sound for charging, and when the battery voltage is lower than 3.35v, it will automatically shut down)
*Interface type: UHF (SL16)

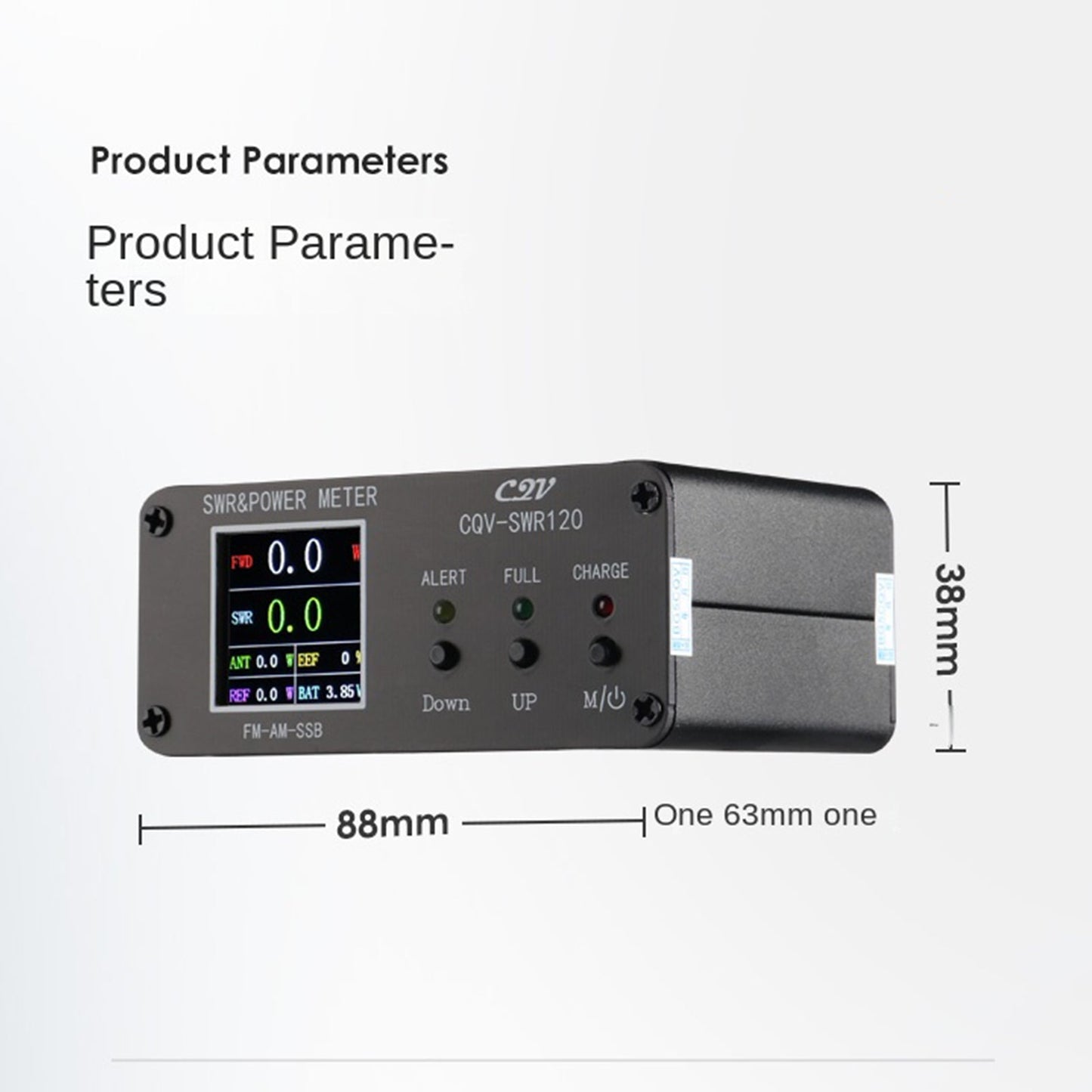

*Casing size: 88mm*63mm*38mm (excluding protruding parts)
*Bare metal weight: 190 grams

Package Included:
1 x SWR meter
1 x Type-C Charging Cable
1 x Machine Corner Pad (to prevent machine body friction)
