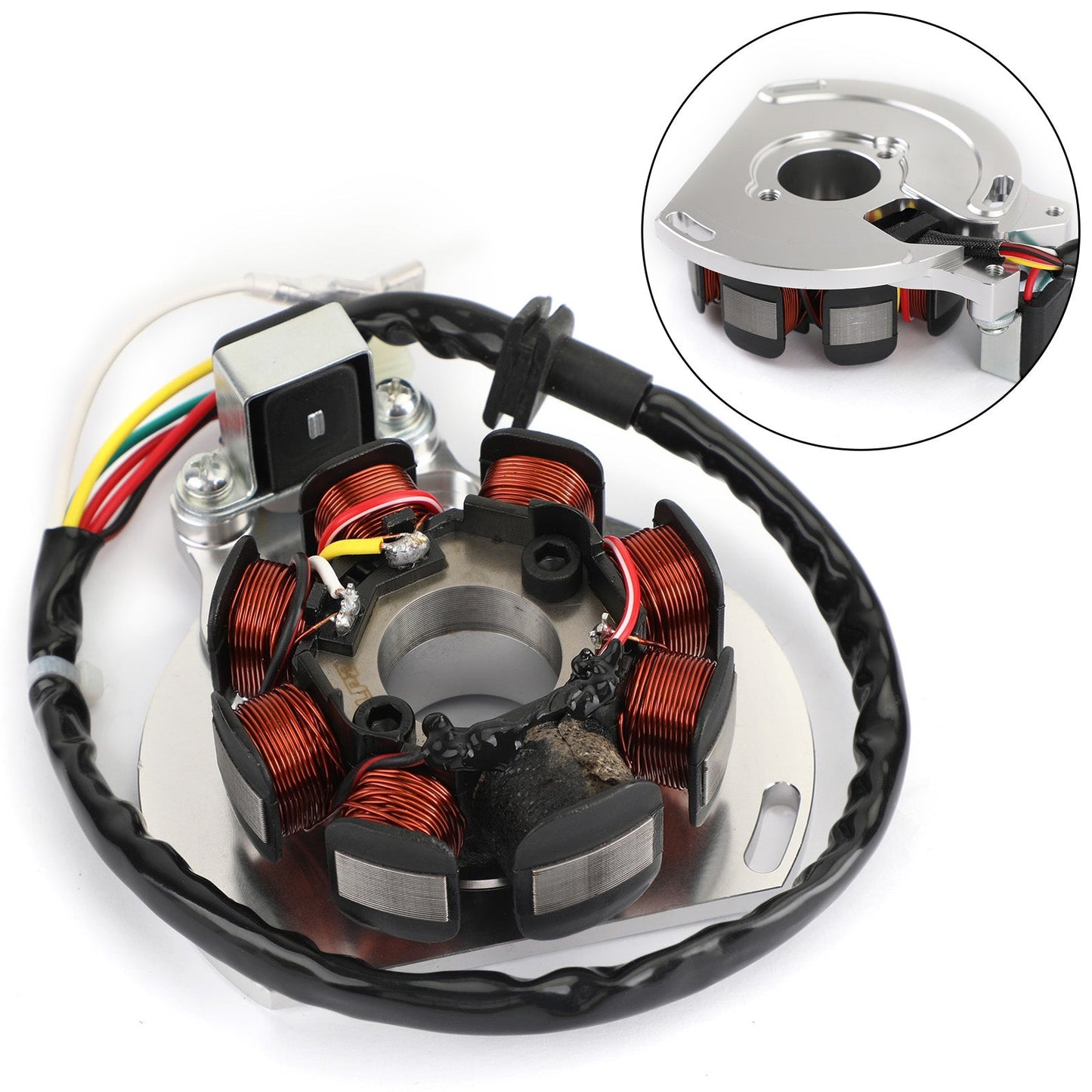

Magneto Generator Engine Stator 2K-3 Fit For 125/200/250/300 SX EXC XC-W TE 2005-2016

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Dimensions :
Interior diameter : 29mm / 1.14 inches
Exterior diameter : 84.3mm / 3.31 inches
Pole's Thickness : 33.1mm / 1.30 inches
Pole's Width : 21.3mm / 0.83 inches

Other Specifications :
Number of wires: 6
Number of pins: 6
Number of plugs: 1(+2)
Number of fixation holes: 3
Number of poles: 8

PART NUMBER(S):
54839204000

Fitments:
THESE MODELS USE 3 DIFFERENT TYPE OF STATORS.
2K-1 (IGNITION ONLY), 2K-2 (AC ONLY) & 2K-3 (FULL DC).
THIS ONE IS THE 2K-3 (FULL DC) VERSION.
BEFORE BUYING PLEASE MAKE SURE YOUR BIKE USES THE 2K-3 (FULL DC)VERSION.

Fit for 125/200/250/300 2K-3 Version

Fit for 125 SX TYLA RATTRAY 2005
Fit for 125 EXC 2005-2016
Fit for 125 EXC SIX DAYS 2005-2016
Fit for 125 Factory Edition 2011/2015
Fit for 125 EXC CHAMPION EDITION 2010
Fit for 200 XC 2008-2009
Fit for 200 XC-W 2008-2012
Fit for 200 EXC 2005-2012
Fit for 250 EXC 2005-2007
Fit for 250 EXC SIX DAYS 2005-2007
Fit for 300 MXC 2005
Fit for 300 EXC 2005-2007
Fit for 300 EXC SIX DAYS 2005-2007
Fit for 300 XC 2006-2007
Fit for 300 XC-W 2006-2007

Fit for Husqvarna TE 125 2015-2016
Fit for Husaberg TE 125 2012-2014
Fit for Husaberg TE 125 HQV 2014

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
