Generator Stator Alternator Fit for Honda XR 600 R A AC 1991-2000 # 31120-MN1-681

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Replacement Part Number:
31120-MN1-681

Dimensions :
Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 15 mm

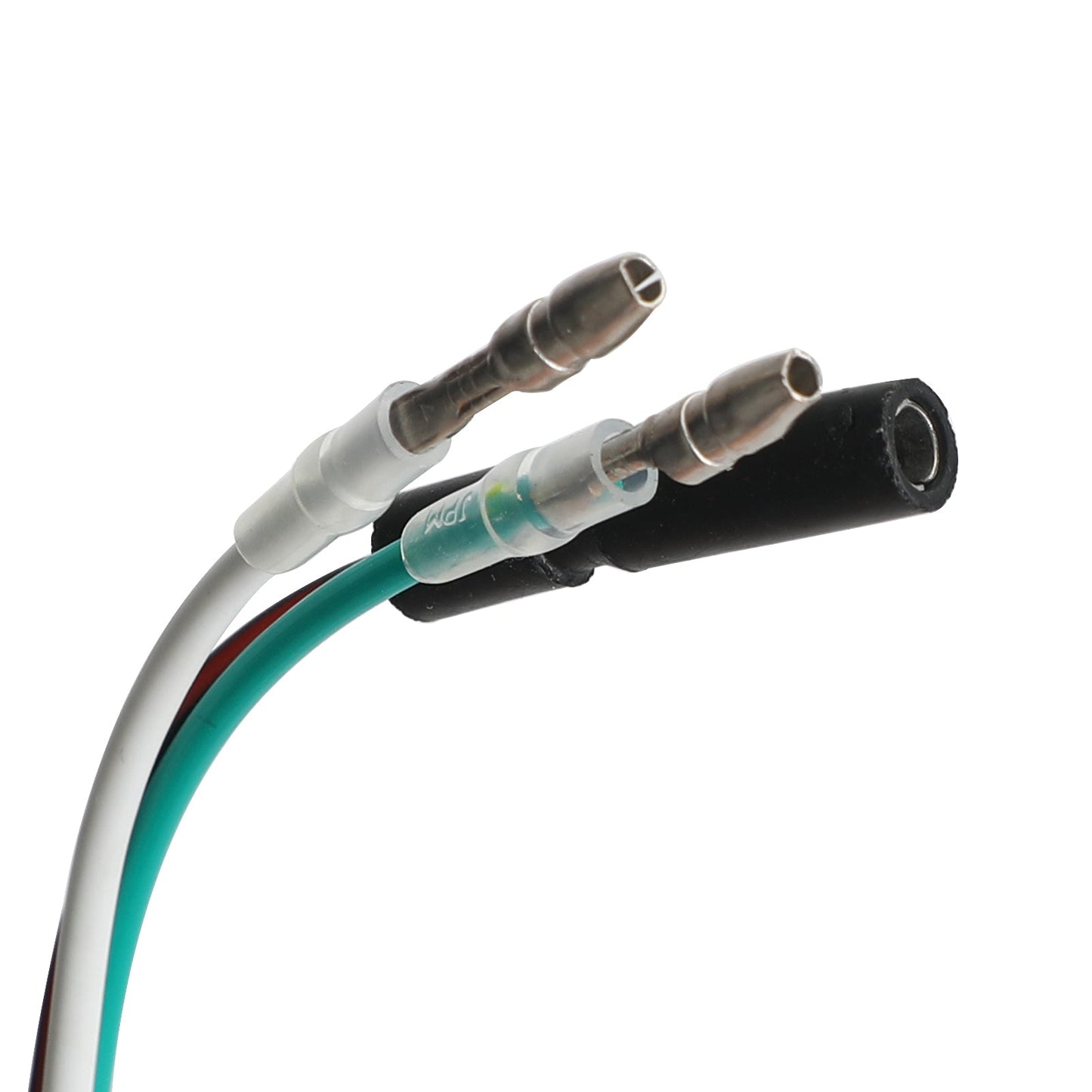

Length of wires stator to grommet: 120 mm
Length of wires grommet to plug: 700 mm

Other specifications:
Number of wires: 3
Number of plugs: 3
Number of pins: 3

Fitments:
Fit for Honda XR600R A 1991-1999
Fit for Honda XR600R AC 1998-2000

Fit for Honda XR600R XR600RM 1991
Fit for Honda XR600R XR600RN 1992
Fit for Honda XR600R XR600RP 1993
Fit for Honda XR600R XR600RR 1994
Fit for Honda XR600R XR600RS 1995
Fit for Honda XR600R XR600RT 1996
Fit for Honda XR600R XR600RV 1997
Fit for Honda XR600R XR600RW 1998
Fit for Honda XR600R XR600RX 1999
Fit for Honda XR600R XR600RY 2000

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Includes:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
