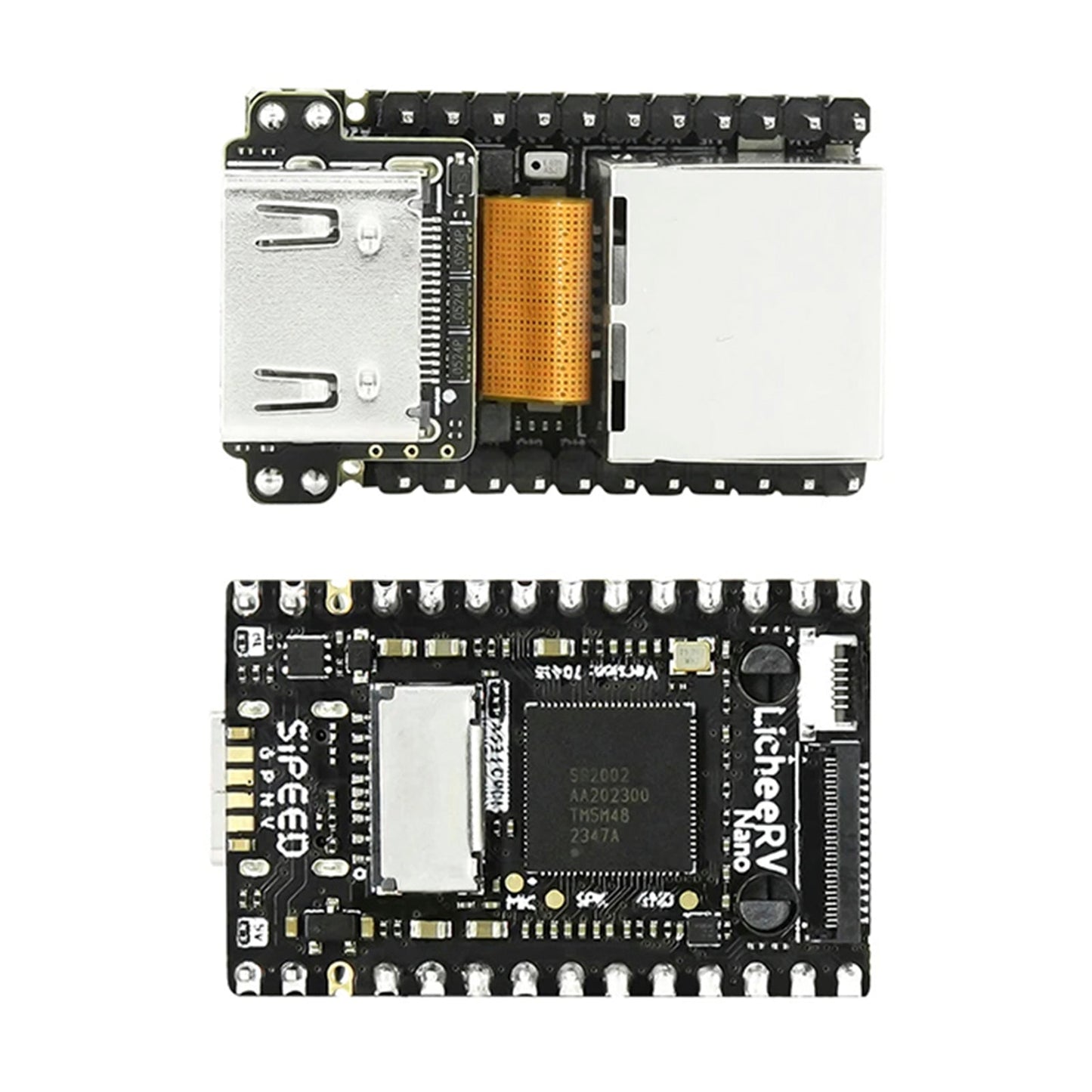

Sipeed NanoKVM Remote Operation Maintenance Server PIKVM Remote Control UART Serial Port Remote Raspberry Pi

Features:
Extremely mini, Lite: 23x37x15mm, Full: 40x36x36mm
RISC-V, RISC-V core
Affordable price, similar products <1/2 price
Remote image transmission, up to 1080P 60fps
Simulation of keyboard and mouse, support simulation of HID keyboard and mouse
Remote installation, web page virtual keyboard
Exquisite shell, photosensitive resin material
OLED screen, IP and other information display
IO power control, support serial port control, remote startup

Description:
Lichee NanoKVM is an IP-KVM product based on LicheeRV Nano, inheriting the extreme size and powerful functions of icheeRV Nano.
NanoKVM Lite is a basic version configuration, suitable for individual users with certain DIY capabilities and corporate users with batch needs.
NanoKVM Full is a full version configuration, with a delicate shell and complete accessories, and a built-in system image card that can be used when powered on. It is recommended for individual users to purchase.

Introduction to usage:
1. Use an HDMI cable to connect the host to the HDMI interface of the KVM
2. Use a USB A-to-C cable to connect the host USB to the PC-USB port of the KVM
3. Use a network cable to connect the KVM to the LAN or the Internet (for port mapping operations under the Internet, see the wiki document)
4. Optional: Use a USBA-to-C cable to connect the 5V power adapter to the AUX-Power port of the KVM
5. Optional: Use a USBA-to-C cable to connect the ATX-B board to the ATX-Power port of the KVM, and connect the relevant Dupont cable in the chassis
6. Check the IP address on the OLED screen, enter the IP address in the browser, and press Enter to enter the management interface

Package Included:
Option1:
1x NanoKVM Lite
Option2:
1x NanoKVM FULL White Case Kit
