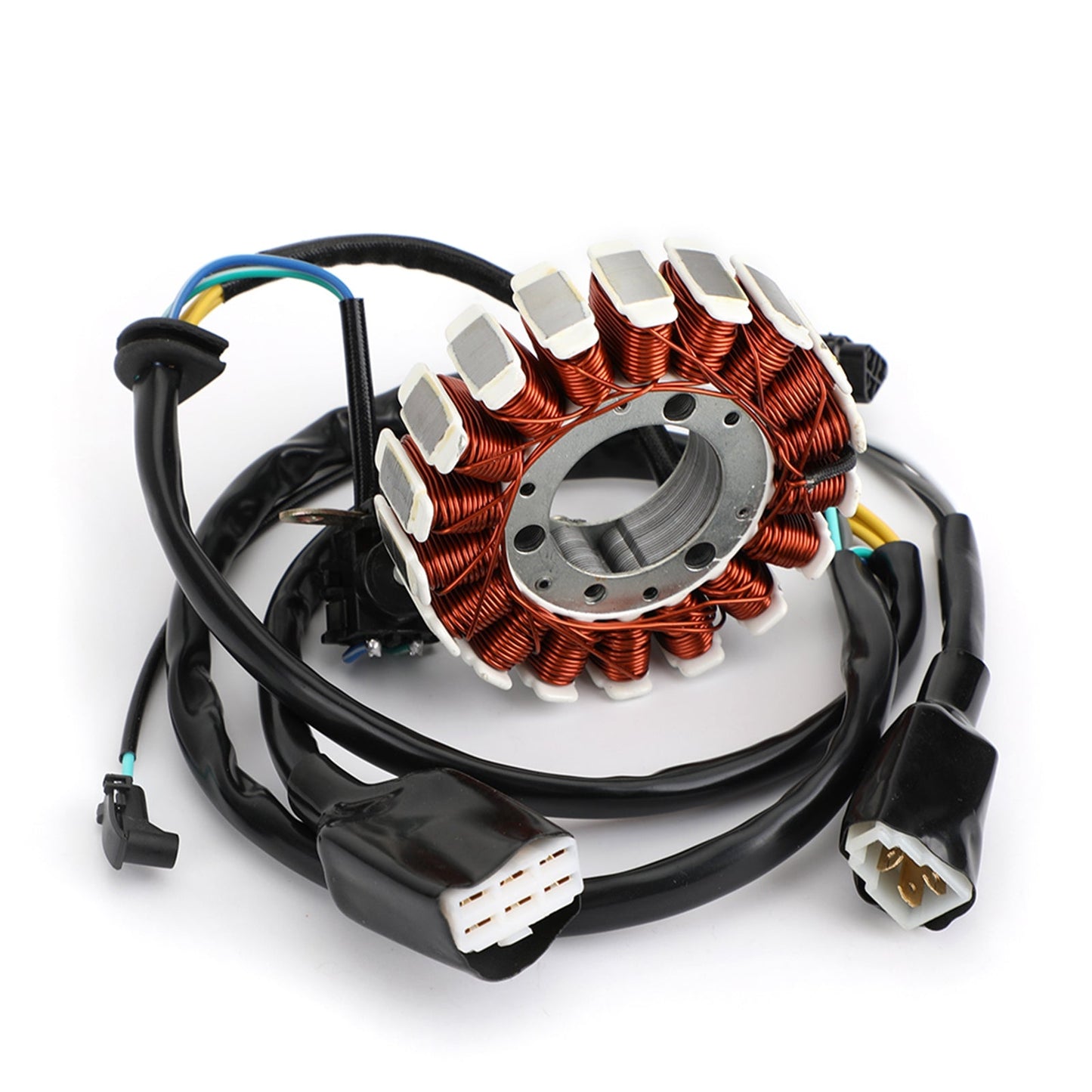

Magneto Generator Engine Stator Coil Fit For Kawasaki KLX 250 2008-2014 #21003-0087

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Dimensions :
Interior diameter : 34.9mm / 1.37 inches
Exterior diameter : 93.2mm / 3.67 inches
Pole's Thickness : 26.9mm / 1.05 inches
Pole's Width : 11.4mm / 0.45 inches

Other specifications :
Number of wires: 9
Number of pins: 13
Number of plugs: 4
Number of fixation holes: 3(+3)
Number of poles: 18

REPLACEMENT PART NUMBER: 21003-0087

FITMENT:
Fits Kawasaki KLX250 2008-2014
Fits Kawasaki KLX250 KLX250S 2009-2014
Fits Kawasaki KLX250 KLX250SF 2009-2010
Fits Kawasaki KLX250 D-Tracker X 2008-2009/2011-2016

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
