Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

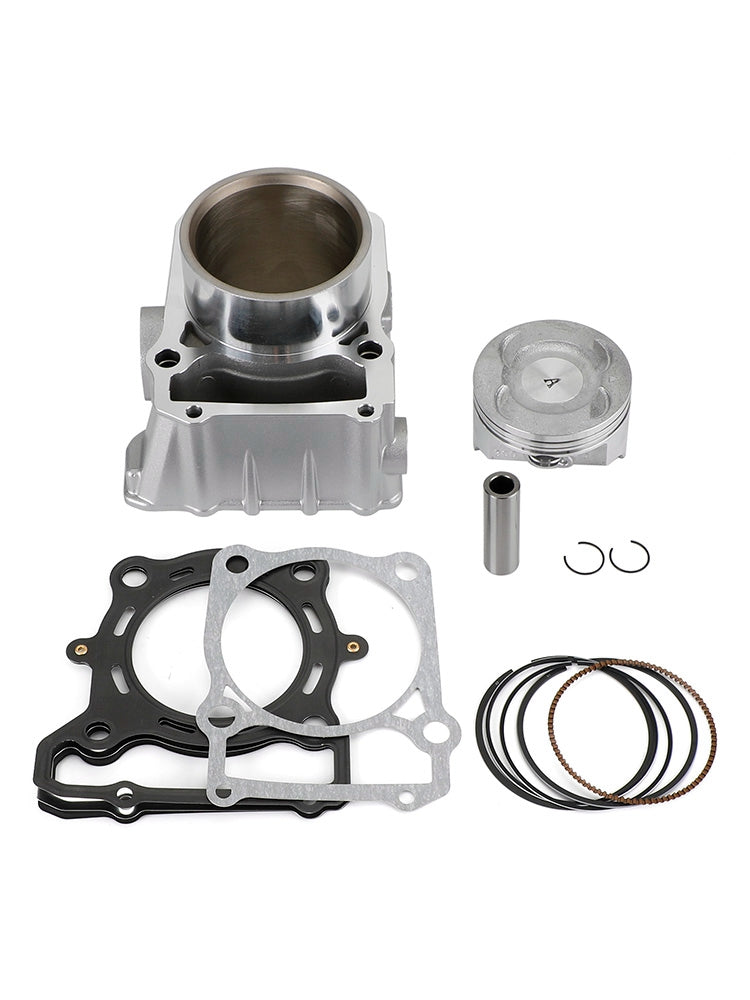

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 78mm for KLX300, 17mm steel piston pin.
Also can as a big bore kit for KLX250 models.
This kit is excellent as a low-cost replacement for defects in the original cylinder.
Improved heat dissipation and durability, excellent performance under harsh conditions.
No need to modify this product. Can be installed and used directly.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 292cc
Bore Size: 78mm
Stroke: 61.2mm
Pin Diameter: 17mm

Replacement Part Number:
Cylinder: 11005-1983
Cylinder Base Gasket: 11061-1506
Cylinder Head Gasket: 11004-0091
Piston (Std): 13001-1463
Pin, Piston: 13002-1109
Piston Ring Set (Std): 13008-1071
Circlips, piston: 92033-1054

Fits Models:
Fit for Kawasaki KLX300 1996-2003
Fit for Kawasaki KLX300R 1997-2007

Also as a bore up kit (78mm) for KLX250 (STD 72mm) models.
Fit for Kawasaki KLX250 1993-1996
Fit for Kawasaki KLX250R 1994-1996
Fit for Kawasaki KLX250S 2005-2014
Fit for Kawasaki KLX250SF 2009-2010

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:
1x 78mm Cylinder
1x Piston
1x Piston Ring Set
1x Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
