Magneto Generator Stator Fit for Yamaha ATV YXZ1000R EPS / SS / 2019-2023

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

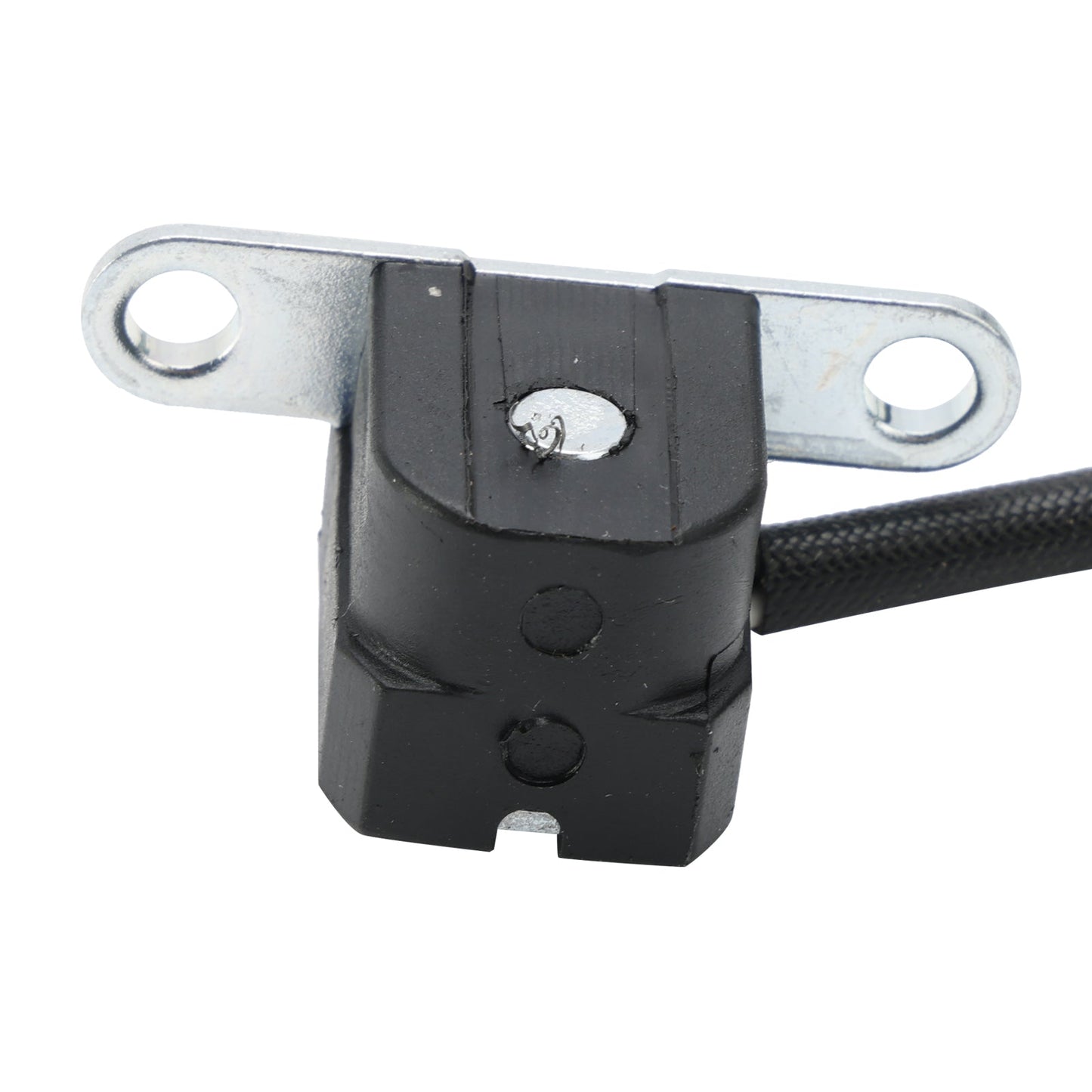

Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil

other specifications:
Number of wires: 5
Number of plugs: 4
Number of pins: 2 + 1 + 1 + 1
Number of poles: 18

Dimensions:
Interior diameter: 42mm
Exterior diameter: 115mm

Replacement Part Number:
B5H-81410-00

Fits Make/Model/Year:
Fit for Yamaha YXZ1000R EPS 2019-2021
Fit for Yamaha YXZ1000R EPS SE 2019
Fit for Yamaha YXZ1000R EPS SS 2019-2021
Fit for Yamaha YXZ1000R EPS SS SE 2019
Fit for Yamaha YXZ1000R EPS SPECIAL 2020
Fit for Yamaha YXZ1000R SS SPECIAL 2020
Fit for Yamaha YXZ1000R SS SE 2021
Fit for Yamaha YXZ1000R SS SE CAL 2021
Fit for Yamaha YXZ1000R SS XTR 2020-2023
Fit for Yamaha YXZ1000R 2022-2023
Fit for Yamaha YXZ1000R SS 2022-2023

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
