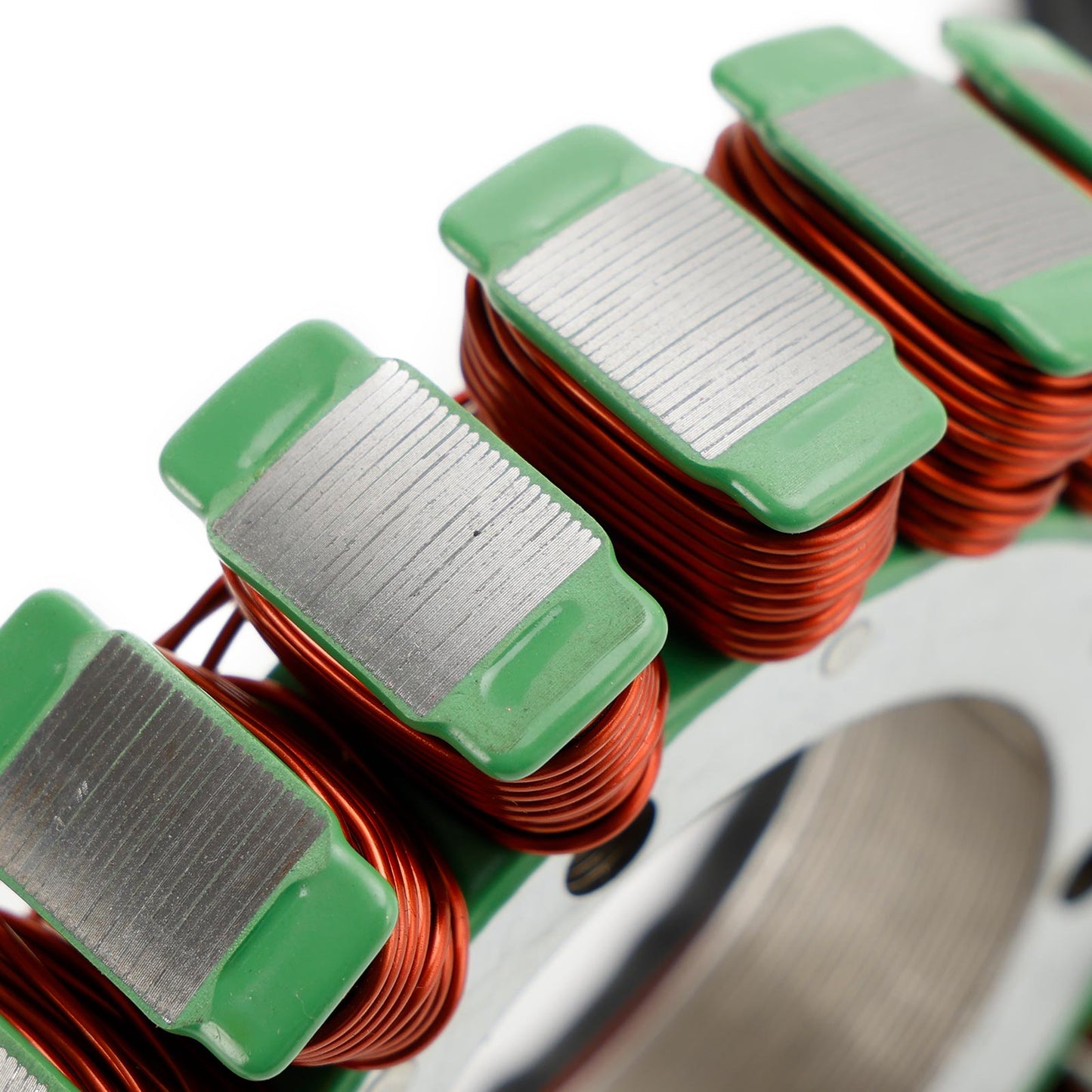

Magneto Generator Stator Fit for ARCTIC CAT ALTERRA 550 700 HDX500 HDX700 1000XT XR550 XR700 VLX700 # 0802-073 0802-065

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil

other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 2 + 3
Number of poles: 18

Replacement Part Number:
0802-073
0802-065

Fits Make/Model/Year:
Fit for Arctic Cat ATV 700 MUD PRO 2013
Fit for Arctic Cat ATV 700 MUD PRO LTD 2014-2016
Fit for Arctic Cat ATV 700 MUD PRO LTD EPS 2017
Fit for Arctic Cat ATV 1000 MUD PRO 2013
Fit for Arctic Cat ATV 1000 MUD PRO LTD 2014-2015
Fit for Arctic Cat ATV 1000 MUD PRO SE EPS 2016
Fit for Arctic Cat ATV 1000 MUD PRO LTD EPS 2017
Fit for Arctic Cat ATV 700 2013-2014
Fit for Arctic Cat ATV 550 2014
Fit for Arctic Cat ATV 550 XT 2014
Fit for Arctic Cat ATV 700 XT 2013-2014
Fit for Arctic Cat ATV 1000 XT 2015-2016
Fit for Arctic Cat ATV 1000 XT EPS 2017
Fit for Arctic Cat ATV 550 LTD 2014
Fit for Arctic Cat ATV 700 LTD 2013-2014
Fit for Arctic Cat ATV XR 550 2015
Fit for Arctic Cat ATV XR 550 XT 2015
Fit for Arctic Cat ATV XR 550 LTD 2015
Fit for Arctic Cat ATV XR 700 2015
Fit for Arctic Cat ATV XR 700 XT 2015
Fit for Arctic Cat ATV XR 700 LTD 2015
Fit for Arctic Cat ATV TRV 1000 LTD 2013-2015
Fit for Arctic Cat ATV TRV 1000 XT 2015
Fit for Arctic Cat ATV TRV 700 LTD 2013-2015
Fit for Arctic Cat ATV TRV 700 XT 2013-2014
Fit for Arctic Cat ATV TRV 550 LTD 2014-2015
Fit for Arctic Cat ATV TRV 550 XT 2014-2015
Fit for Arctic Cat ATV TRV 700 XT 2015
Fit for Arctic Cat ATV TRV 700 EPS SE 2016
Fit for Arctic Cat ATV TBX 700 2013-2015
Fit for Arctic Cat ATV TBX 700 EPS 2016-2017
Fit for Arctic Cat ATV VLX 700 2017
Fit for Arctic Cat ATV ALTERRA 550 2016
Fit for Arctic Cat ATV ALTERRA 570 2019-2020
Fit for Arctic Cat ATV ALTERRA 570 EPS 2019-2021
Fit for Arctic Cat ATV ALTERRA 570 SE EPS 2021
Fit for Arctic Cat ATV ALTERRA 700 2016-2019
Fit for Arctic Cat ATV ALTERRA 700 MUD PRO LTD EPS 2018-2019
Fit for Arctic Cat ATV ALTERRA 700 EPS 2019-2020
Fit for Arctic Cat ATV ALTERRA 700 SE EPS 2021
Fit for Arctic Cat ATV ALTERRA 550 XT EPS 2016
Fit for Arctic Cat ATV ALTERRA 570 XT EPS 2019
Fit for Arctic Cat ATV ALTERRA 700 XT EPS 2016-2017
Fit for Arctic Cat ATV ALTERRA 700 XT EPS 2018-2019
Fit for Arctic Cat ATV ALTERRA VLX 700 2018
Fit for Arctic Cat ATV ALTERRA VLX 700 EPS 2018
Fit for Arctic Cat ATV ALTERRA TBX 700 EPS 2018-2020
Fit for Arctic Cat ATV ALTERRA TRV 550 XT EPS 2017
Fit for Arctic Cat ATV ALTERRA TRV 700 XT EPS 2017-2022
Fit for Arctic Cat ATV ALTERRA TRV 700 EPS 2020
Fit for Arctic Cat ATV ALTERRA TRV 1000 XT EPS 2017

Fit for Arctic Cat Side by Side HDX 500 XT 2016-2017
Fit for Arctic Cat Side by Side HDX 700 XT SE 2016
Fit for Arctic Cat Side by Side HDX 700 XT 2017
Fit for Arctic Cat Side by Side HDX 700 2017
Fit for Arctic Cat Side by Side PROWLER 500 HDX 2014-2015
Fit for Arctic Cat Side by Side PROWLER 500 HDX XT 2014
Fit for Arctic Cat Side by Side PROWLER 500 2017-2022
Fit for Arctic Cat Side by Side PROWLER 550 XT 2015
Fit for Arctic Cat Side by Side PROWLER 700 HDX 2013-2014
Fit for Arctic Cat Side by Side PROWLER 700 HDX XT 2015-2016
Fit for Arctic Cat Side by Side PROWLER 700 XTX 2013-2014
Fit for Arctic Cat Side by Side PROWLER 700 XT 2015-2017
Fit for Arctic Cat Side by Side PROWLER 1000 XT 2015-2017

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
