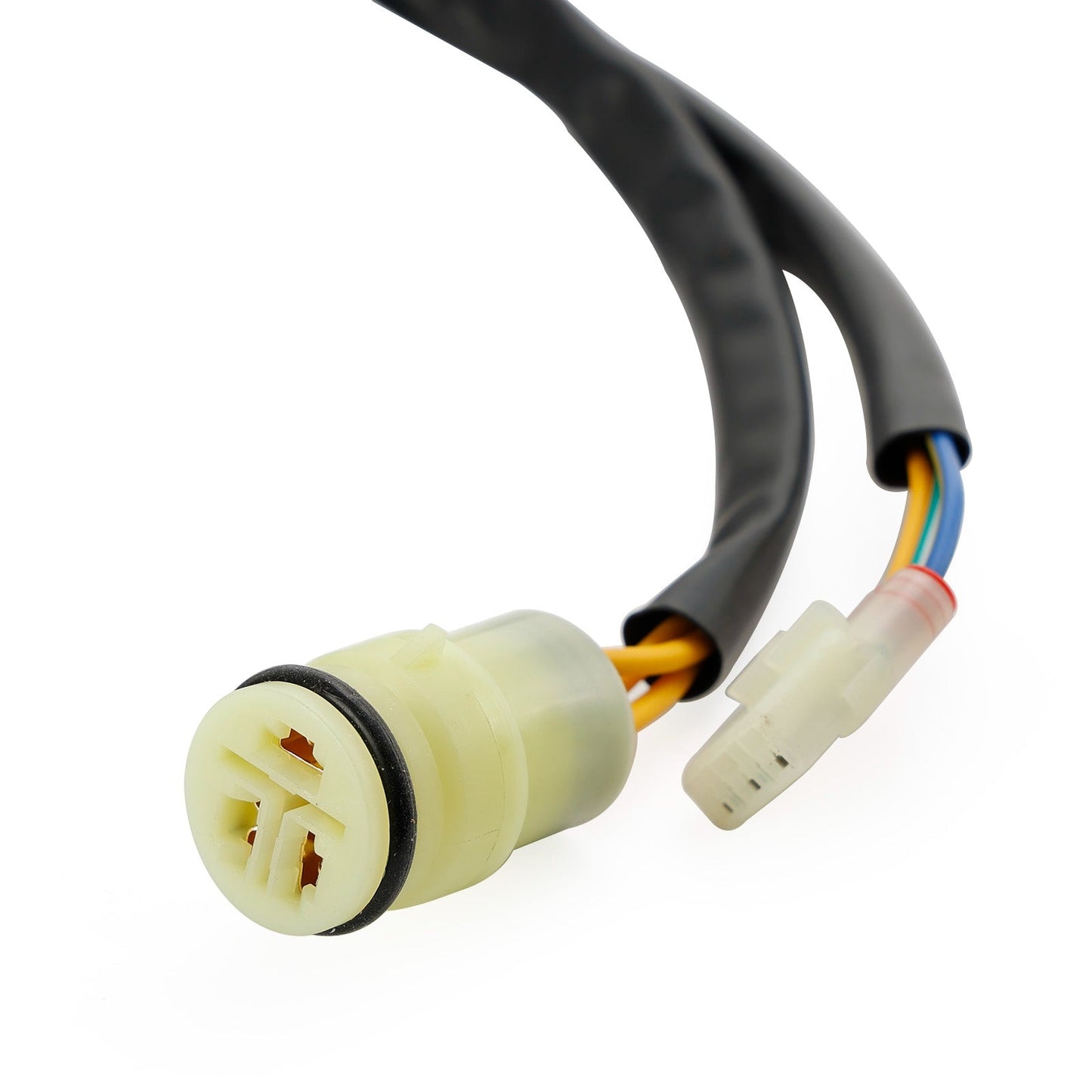

Generator Stator Fit for Honda ATV TRX300 TRX300FW Fourtrax 300 1988 - 2000

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
Rubber grommet included.
All products shipped are tested.
As an inexpensive alternative to the expansive original part.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil

other specifications:
Number of wires: 6
Number of plugs: 2
Number of pins: 3 + 3
Number of poles: 18

Replacement Part Number:
31120-HC4-003
31120-HC4-004
31120-HC4-014
31120-HC4-750

THIS MODEL COMES IN 12 AND 18 POLE TYPE. THIS IS REPLACEMENT FOR 18 POLE TYPE.

IT WILL NOT FIT 12 POLES TYPE!!! MAKE SURE THAT YOUR ORIGINAL STATOR HAS 18 POLES.

Fits Make/Year/Model:
Fit for Honda ATV 1988 TRX300 A - FOURTRAX 300
Fit for Honda ATV 1988 TRX300FW A - FOURTRAX
Fit for Honda ATV 1989 TRX300 A - FOURTRAX 300
Fit for Honda ATV 1990 TRX300 A - FOURTRAX 300
Fit for Honda ATV 1990 TRX300FW A - FOURTRAX 4X4
Fit for Honda ATV 1991 TRX300 A - FOURTRAX 300
Fit for Honda ATV 1991 TRX300 AN - FOURTRAX 300
Fit for Honda ATV 1991 TRX300FW A - FOURTRAX 4X4
Fit for Honda ATV 1991 TRX300FW AN - FOURTRAX 4X4
Fit for Honda ATV 1992 TRX300 A - FOURTRAX 300
Fit for Honda ATV 1992 TRX300 AN - FOURTRAX 300
Fit for Honda ATV 1992 TRX300FW A - FOURTRAX 4X4
Fit for Honda ATV 1992 TRX300FW AN - FOURTRAX 4X4
Fit for Honda ATV 1993 TRX300 A - FOURTRAX
Fit for Honda ATV 1993 TRX300 AN
Fit for Honda ATV 1993 TRX300FW A - FOURTRAX 300 4X4
Fit for Honda ATV 1993 TRX300FW AN - FOURTRAX 300 4X4
Fit for Honda ATV 1994 TRX300 A - FOURTRAX 300
Fit for Honda ATV 1994 TRX300 AN - FOURTRAX 300
Fit for Honda ATV 1994 TRX300FW A - FOURTRAX 300 4X4
Fit for Honda ATV 1994 TRX300FW AN - FOURTRAX 300 4X4
Fit for Honda ATV 1995 TRX300 A - FOURTRAX 300
Fit for Honda ATV 1995 TRX300 AN - FOURTRAX 300
Fit for Honda ATV 1995 TRX300FW A - FOURTRAX 300 4X4
Fit for Honda ATV 1995 TRX300FW AN - FOURTRAX 300 4X4
Fit for Honda ATV 1996 TRX300 A - FOURTRAX 300
Fit for Honda ATV 1996 TRX300 AN - FOURTRAX 300
Fit for Honda ATV 1996 TRX300FW A - FOURTRAX 300 4X4
Fit for Honda ATV 1996 TRX300FW AN - FOURTRAX 300 4X4
Fit for Honda ATV 1997 TRX300 A - FOURTRAX 300
Fit for Honda ATV 1997 TRX300 AN - FOURTRAX 300
Fit for Honda ATV 1997 TRX300FW A - FOURTRAX 300 4X4
Fit for Honda ATV 1997 TRX300FW AN - FOURTRAX 300 4X4
Fit for Honda ATV 1998 TRX300 A - FOURTRAX 300
Fit for Honda ATV 1998 TRX300 AC - FOURTRAX 300
Fit for Honda ATV 1998 TRX300FW A - FOURTRAX 300 4X4
Fit for Honda ATV 1998 TRX300FW AC - FOURTRAX 300 4X4
Fit for Honda ATV 1999 TRX300 A - FOURTRAX 300
Fit for Honda ATV 1999 TRX300 AC - FOURTRAX 300
Fit for Honda ATV 1999 TRX300FW A - FOURTRAX 300 4X4
Fit for Honda ATV 1999 TRX300FW AC - FOURTRAX 300 4X4
Fit for Honda ATV 2000 TRX300 A
Fit for Honda ATV 2000 TRX300 AC
Fit for Honda ATV 2000 TRX300FW A - FOURTRAX 300
Fit for Honda ATV 2000 TRX300FW AC - FOURTRAX 300 4X4

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
